MGP Pneumatic Cylinder Barrel

MGP SERIES GUIDE ROD AIR CYLINDERS TUBE

The name MGP three-axis cylinder is not common and may be a product line of a specific manufacturer or a misnomer. Normally, a cylinder is a common actuator used in automation equipment to generate linear or rotational motion. However, the term 'three-axis cylinder' is not standard because cylinders are usually single axis, meaning they perform telescopic movements in one direction.

If 'three-axis' here refers to a particular application or design, it may refer to a combination device that can control movement in three different directions, but this is not a standard industrial term. In practical applications, if precise positioning or motion control is required in three-dimensional space, multiple independent cylinders or other types of actuators (such as motor-driven screw modules, linear guides, etc.) may be used to achieve it.

Short Description:

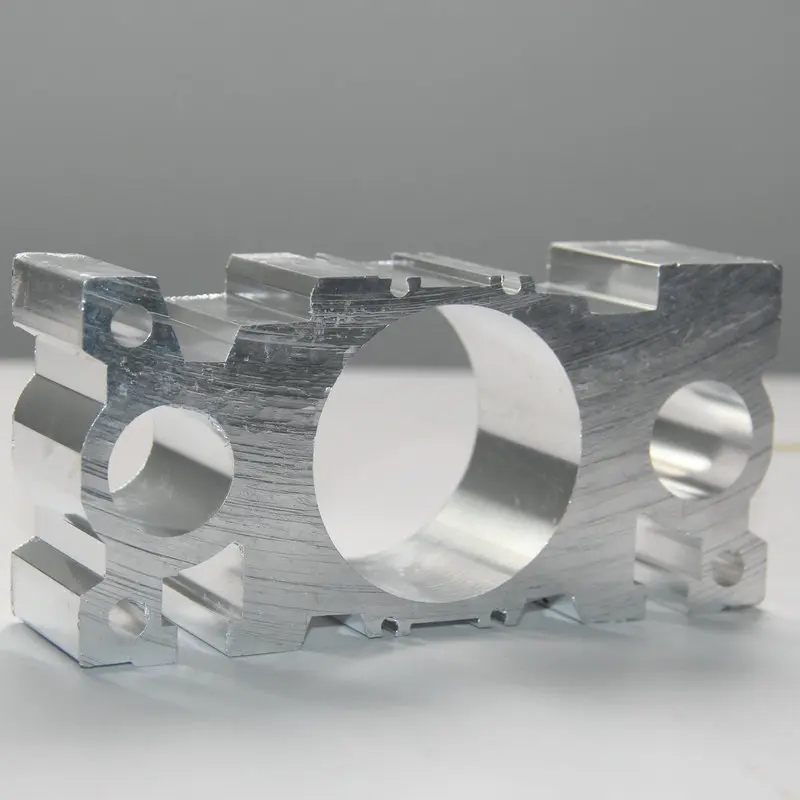

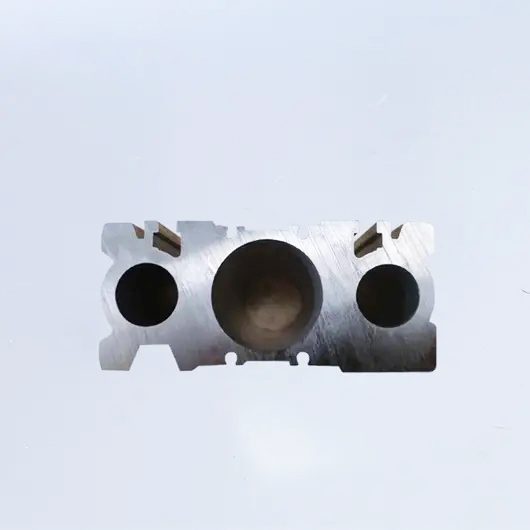

Smc Type Mgp Series Guide Rod Pneumatic Cylinder Tube.
It Is New Type Sensor Profile.

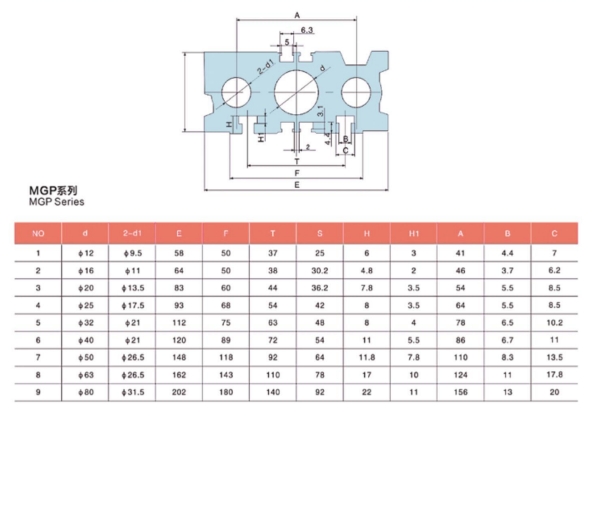

It is SMC standard. The bore size is from Dia12mm to Dia100mm
The length is 2 meter.

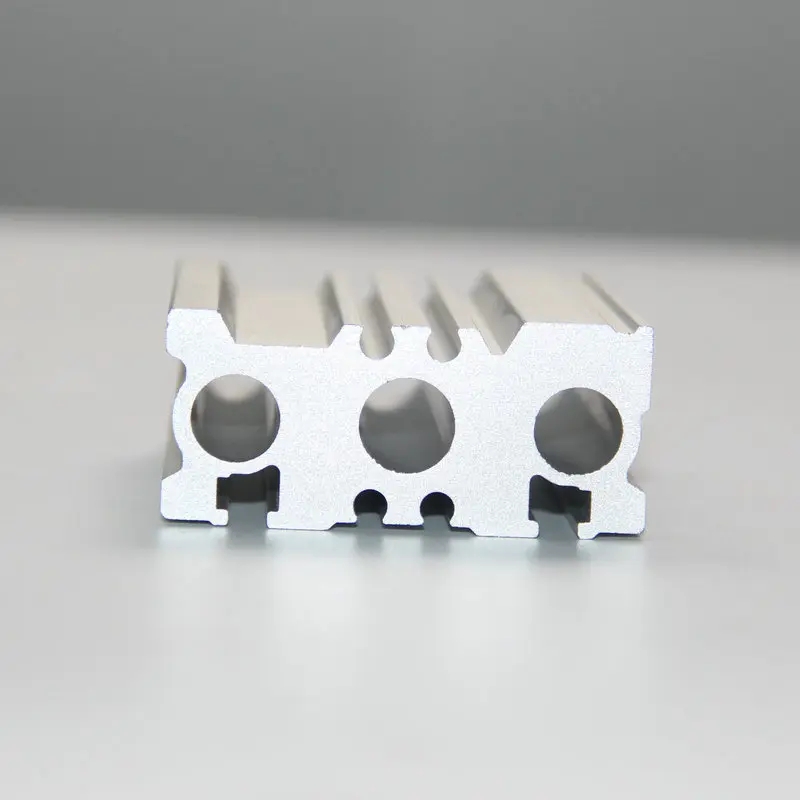

☆ Due to technological updates, this magnetic switch slot has changed from square to round.
☆ MGPM series thin guide rod cylinders are compact in structure, small, and do not take up space for installation. They can be installed in relatively small spaces; they can be fixed and installed from the bottom or side of the cylinder with screws, which is convenient for installation; the guide rod is thick and resistant Strong lateral load capacity, can bear larger lateral load, and can be used for pushing out and lifting the workpiece on the conveyor line; the guide rod structure has strong torque resistance.
☆ The MGP guide rod Pneumatic Cylinder is a Pneumatic Cylinder that combines the piston rod and the two guide rods parallel to the piston rod through the end plate. Therefore, the most significant feature of the MGP series guide rod Pneumatic Cylinder is the high non-rotation accuracy, located at ±0.04°~±0.08° , Suitable for machinery that requires high-precision guidance.

This Pneumatic Cylinder is not recommended to be oxidized, because the customer needs to cut it himself and then process it and then perform oxygen treatment after buying it.Other Pneumatic Cylinder Barrel,SDA20 Pneumatic Cylinder Barrel,Customized cylinder tube,aluminum pipes.
