SC Pneumatic Cylinder Barrel

2 year ago

6 0 

Foshan Weiyingjia Technology Co., Ltd

2 year

Product details

Aluminum SC pneumaitc cylinder tube for Air Cylinder

【Short Description:】

Aluminum Alloy Cylinder Pipe

Material:6063-T5 Inner Diameter:φ16-φ320mm Inner Diameter Tolerance:H9-H11 Straightness Tolerance:≤1mm/1000mm Surface Roughness:Ra＜0.6 Thickness of internal and External film:≥15μm Hardness of Surface oxide film:≥400HV

【Specification (Mm):】

Air Cylinder Accessories Bore 16mm - 250mm Round Aluminum Tubing Barrel

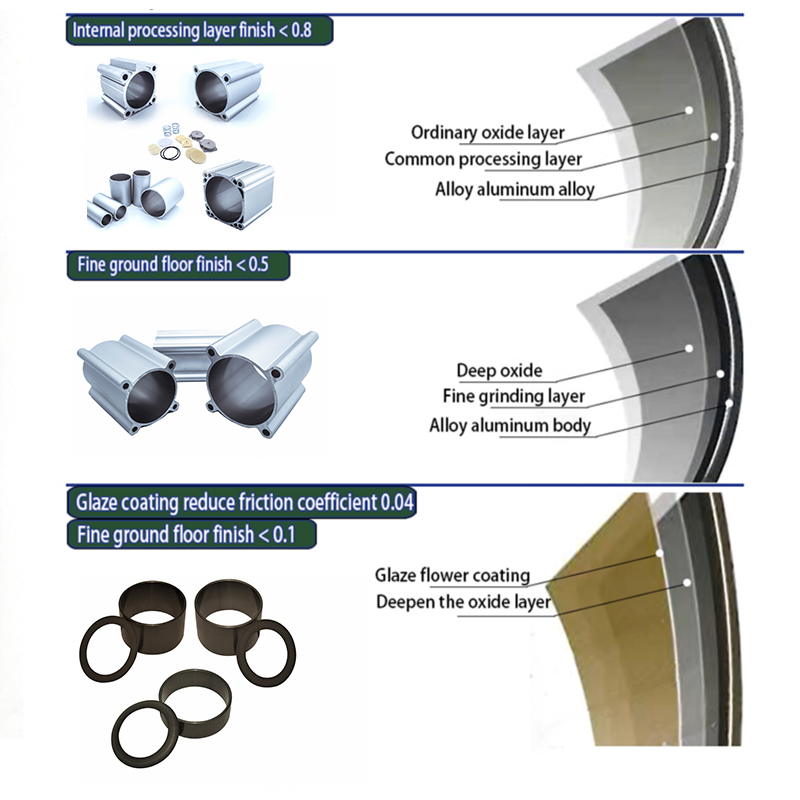

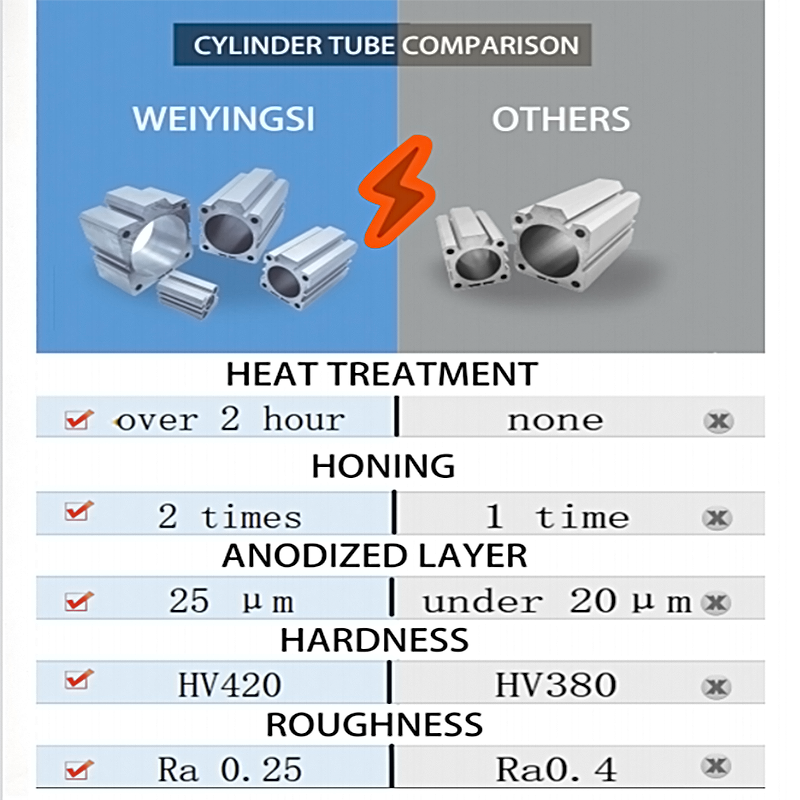

Pneumatic Cylinder Tube supplied by WEIYINGSI Pneumatic, which have high hardness, and not easy to scratch by oxided aluminum, the surface of the tube is perfactly smootrhly.

Chemical Composition:

Chemical Composition	Mg	Si	Fe	Cu	Mn	Cr	Zn	Ti
Chemical Composition	0.81	0.41	0.23	<0.08	<0.08	<0.04	<0.02	<0.05

Specification:

Tension Intensity (N/mm2)	Yield Strength (N/mm2)	Ductility (%)	Surface Hardness	Internal Diameter Accuracy	Internal Roughness	Straightness	Thickness Error
Sb 157	S 0.2 108	S8	HV 250-420	H7-H9	< 0.25	1/1000	± 1%

Torlerance Of Aluminium Alloy Tube:

TORLERANCE OF ALUMINIUM ALLOY TUBE
Bore Size	TORLERANCE
mm	H7(mm)		H8(mm)		H9(mm)
16		0.018		0.027		0.043
20		0.021		0.033		0.052
25		0.021		0.033		0.052
32		0.025		0.039		0.062
40		0.025		0.039		0.062
50		0.025		0.039		0.062
63		0.030		0.046		0.074
70		0.030		0.046		0.074
80		0.030		0.046		0.074
100		0.035		0.054		0.087
125		0.040		0.063		0.1
160		0.040		0.063		0.1
200		0.046		0.072		0.115
250		0.046		0.072		0.115
320		0.052		0.081		0.13
