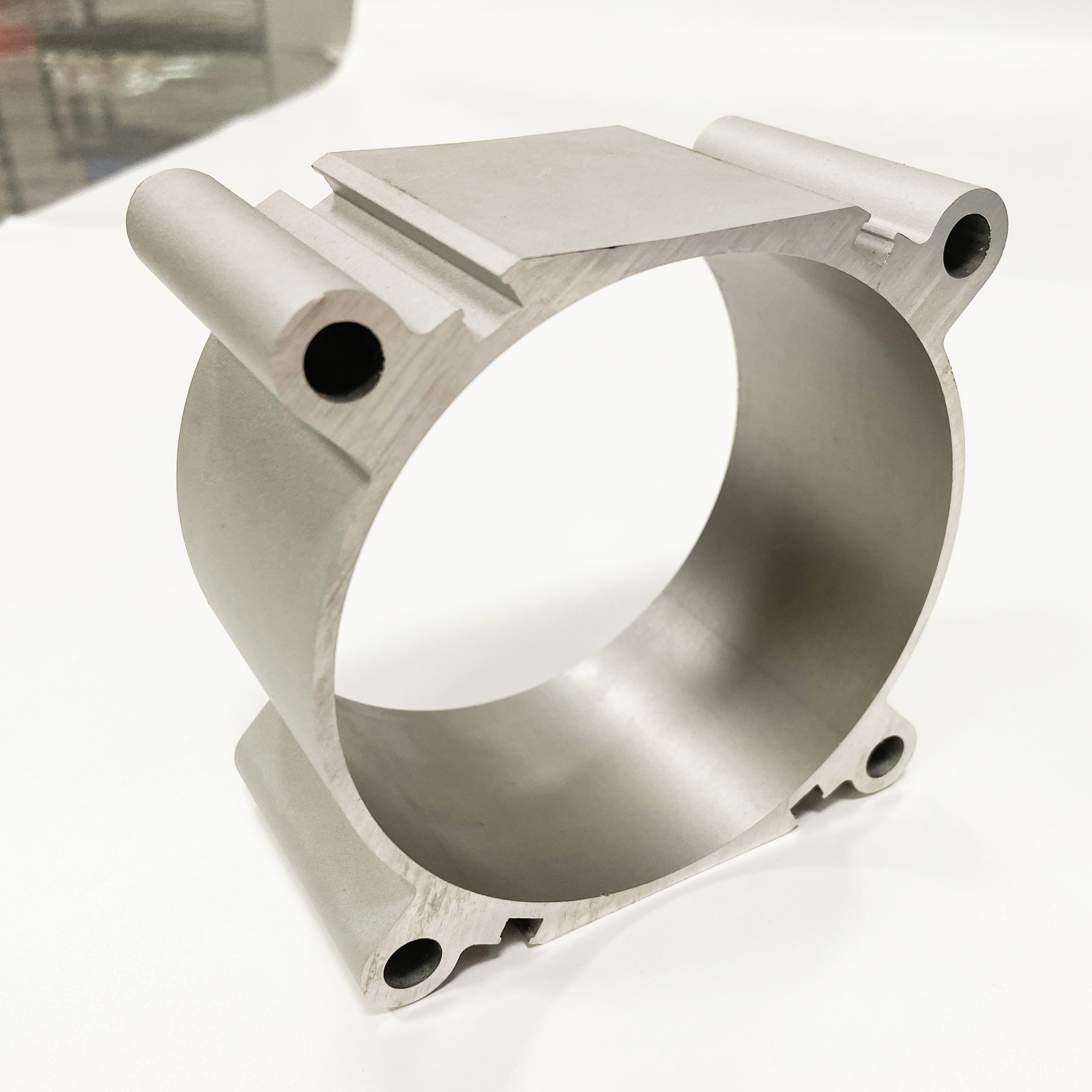

SAI Pneumatic Cylinder Barrel

Aluminum cylinder, also known as aluminum alloy cylinder, is an important component in mechanical equipment, especially widely used in hydraulic and pneumatic transmission systems. It is mainly used as the outer shell of piston type actuators (such as hydraulic cylinders and pneumatic cylinder), providing a closed space for the reciprocating motion of the piston and withstanding radial and axial loads generated by pressure.

The main reasons for choosing aluminum alloy as the cylinder material include:
1. Lightweight: Compared to traditional steel materials, aluminum alloy has a lower density and can significantly reduce the overall weight of the equipment, which is particularly advantageous for mobile or weight limited applications.
2. Corrosion resistance: The naturally formed oxide film on the surface of aluminum alloy can effectively prevent further corrosion and maintain good performance even in humid or corrosive media environments.
3. Good processing performance: Aluminum alloy is easy to process and form, including casting, forging, machining, etc., which is conducive to the design and production of complex structures, while also ensuring high dimensional accuracy and surface smoothness.

4. Excellent thermal conductivity: Aluminum alloy has a high thermal conductivity, which helps with rapid heat transfer, reduces local overheating, and extends the service life of seals and other components.
5. Weldability: Although not all aluminum alloys are suitable for welding, some aluminum alloys have good welding performance, making it easy to assemble and repair pneumatic cylinder barrel.

However, there are also some challenges when using aluminum alloy cylinder tube, such as their relatively low strength and hardness, which may require thicker wall thickness to meet the needs of high-pressure applications, or reinforcement measures to be taken during design. In addition, the cost of aluminum alloys is usually higher than that of ordinary steel, which is also a factor to consider. In summary, aluminum cylinder barrels have been widely used in many fields such as engineering machinery, automation equipment, aerospace, etc. due to their unique advantages of lightweight, corrosion resistance, and easy processing.
