Glass installation robot WSR-600XR

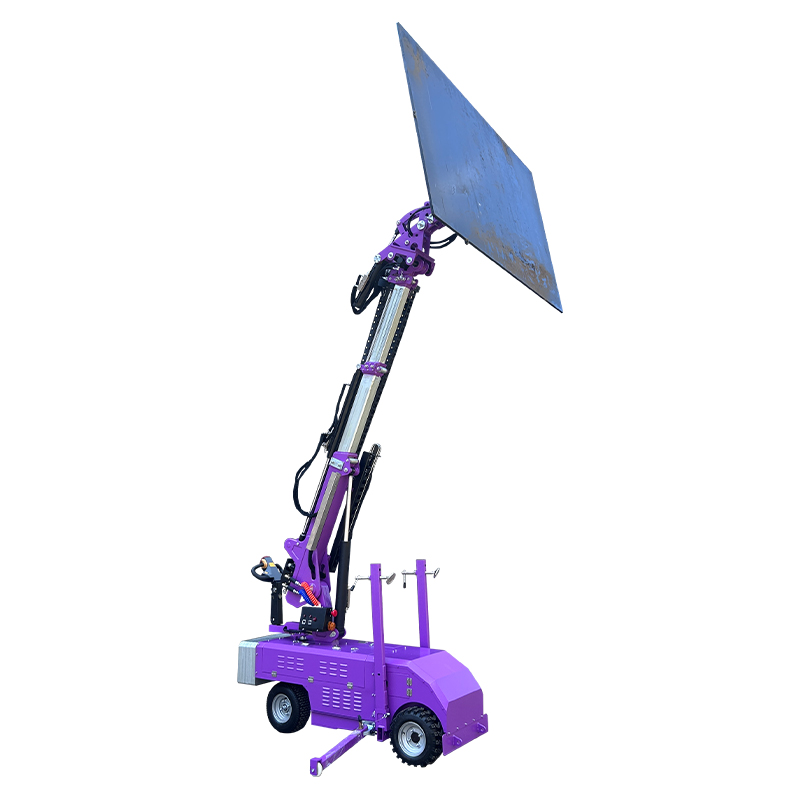

The WSR-600XR is a heavy-duty wheel-type glass vacuum lifter built for large panels and long working days. Six Dia.290mm suction cups sit on dual pumps and dual vacuum circuits, so the load is spread across a wide panel instead of being held at two or four small points, and the whole machine weighs 1686.5kg with a published load curve rather than a single headline capacity.

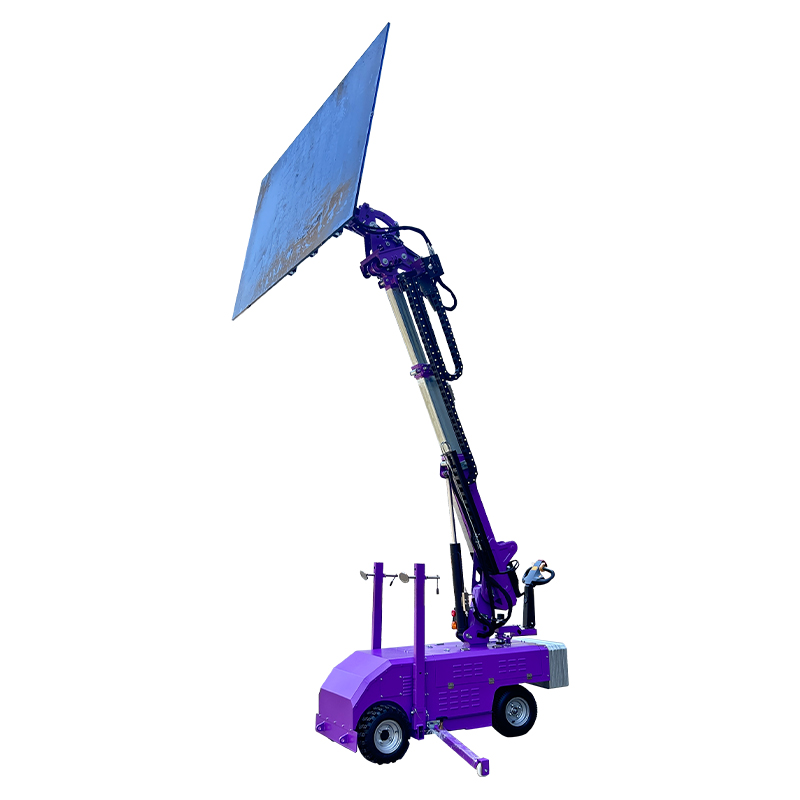

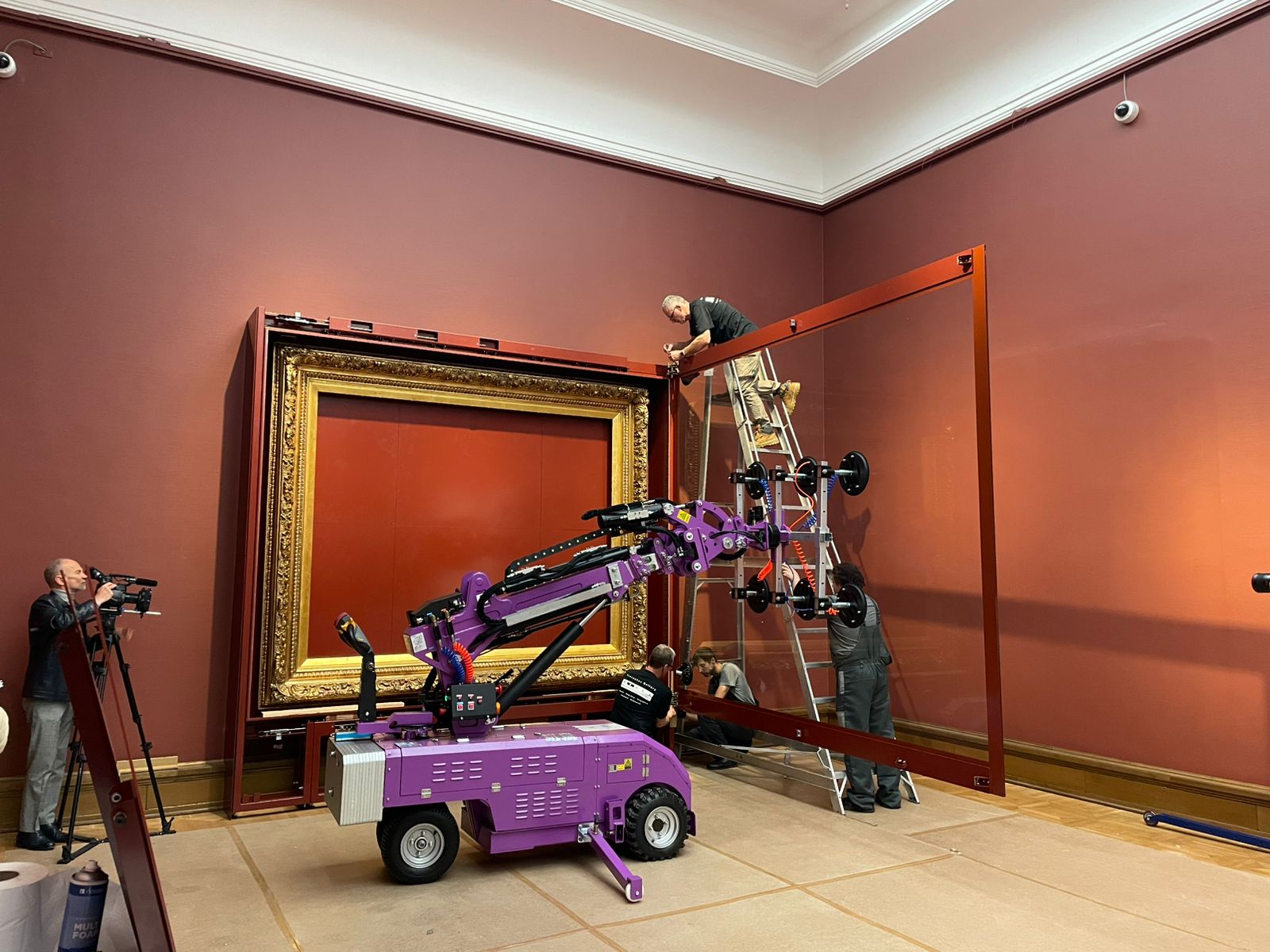

In glass mode it lifts up to 600kg to a 5000mm lifting height with 1400mm + 600mm of arm extension, which covers façade panels, curtain wall units, shopfront glazing and interior glass fit-out. Four load curves of 600kg, 400kg, 250kg and 130kg are published with the machine, and 350kg is marked at the top of the 5m graph, so the rating for your own panel weight and reach can be read off the curve before you order.



The suction cup head is removable and can be replaced with a hook, so when the load is not a flat panel the same 600kg machine lifts a coil, a duct, a bucket or a pallet instead of glass. The boom, the frame articulation and the drive stay the same, which means one machine covers the glass run and the material run on the same site.

The drive is a 24V motor on the front wheel with 20% uphill capability and rough-terrain performance, the hydraulics are electric, and five functions are electrically operated: lifting, extension, rotation, tilting and side shifting, with side turning on both sides controlled manually. Light and acoustic alert indication is standard, so a loss of vacuum is raised on the machine rather than left to be discovered.











Electric control of: lifting, extension, rotation, tilting and side shifting. Side turning is manually controlled. The extra main boom is what takes the machine to 5m. The suction cup head is removable and can be replaced with a hook, so the same machine is not limited to glass.







1. Six Dia.290mm suction cups on dual pumps and dual circuits. The cups are spread across the head rather than clustered, so a large panel is carried across its width and the machine does not depend on two small cups holding a heavy glass edge. Dual circuits mean a leak on one side does not take the whole panel down.



2. The suction cup head comes off and a hook goes on. The head is removable from the boom, so the six-cup glass head can be taken off and replaced with a hook when the load is not a flat panel — a coil, a duct, a bucket, a pallet or anything else that can be slung. The boom, the frame articulation, the drive and the 600kg rating stay the same, so the machine is not tied to glass even though it is sold as a glass lifter. One machine covers the glass run and the material run on the same site.

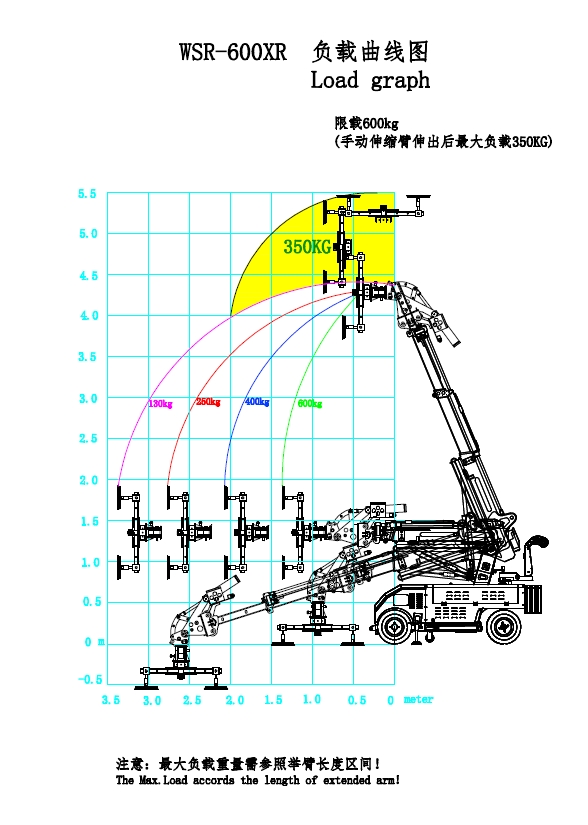

3. 600kg to 5000mm, with the load curve published. Four load curves of 600kg, 400kg, 250kg and 130kg are published with the machine, and 350kg is marked at the top of the 5m graph, so the rating for your own panel weight and reach can be read off the curve before you order instead of being taken on trust.



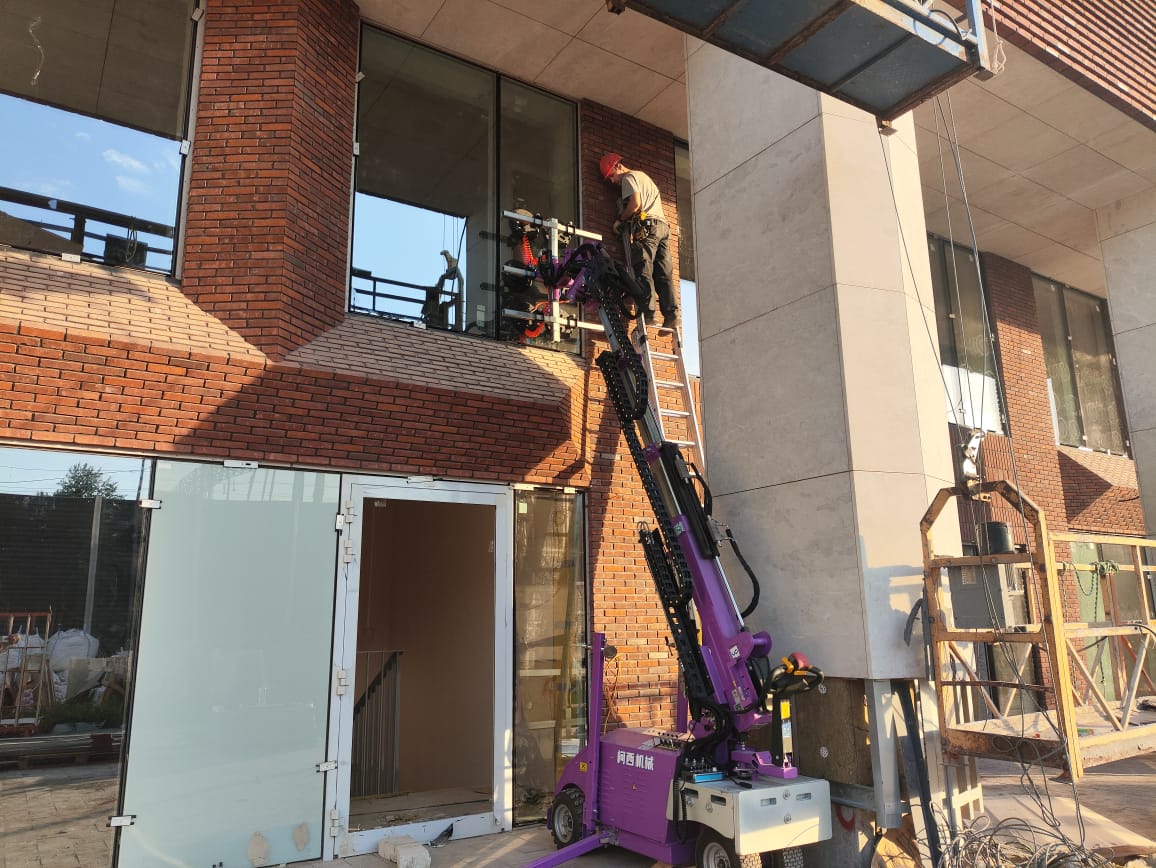

4. 1400mm + 600mm of arm extension. This is the reach that puts a panel at 5m without moving the machine, so on a façade or an atrium the machine stays in one position while the height is worked through, which cuts the number of machine moves on a typical panel run.



5. 20% uphill capability with a 24V motor on the front wheel, and the machine is built for rough terrain driving, so it is positioned under power on site ramps, uneven ground and unfinished surfaces instead of being pushed or winched into place.



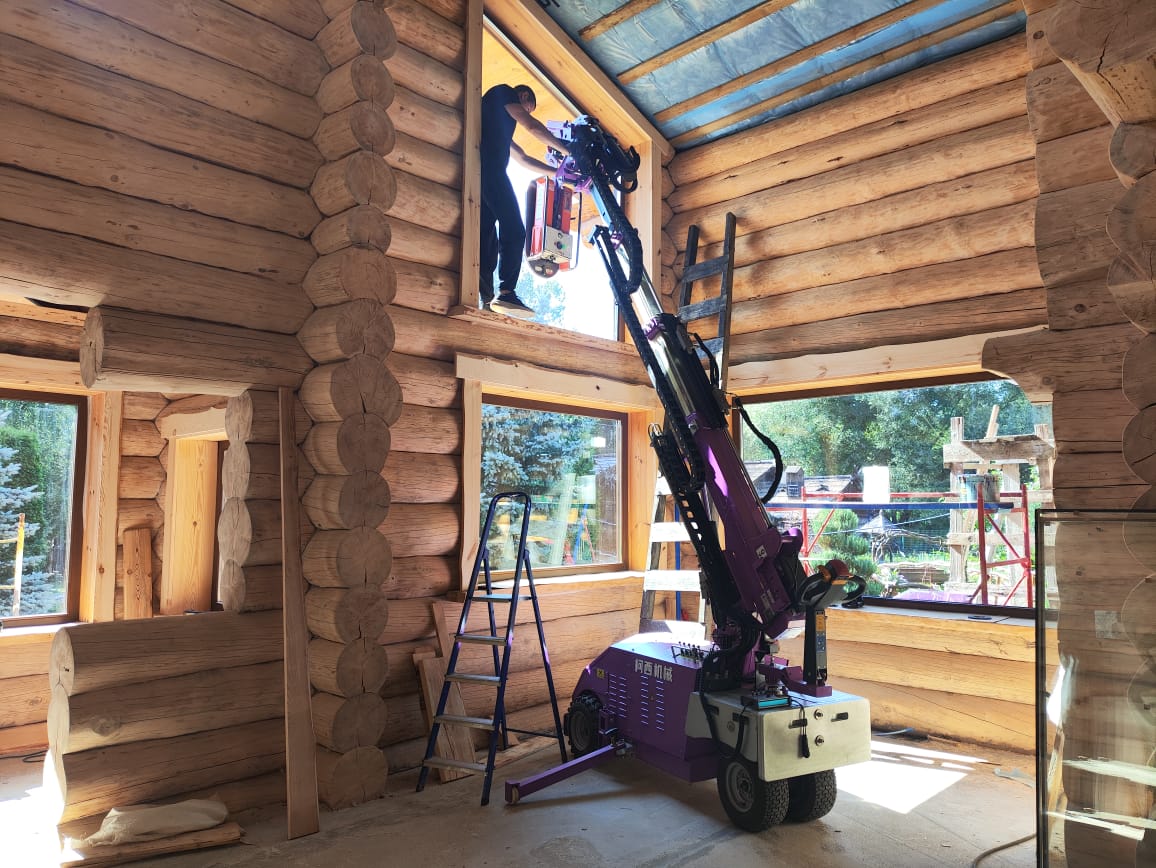

6. Full frame articulation in glass mode: 360° endless rotating, tilting 30° upwards and 90° downwards, ±100mm side shifting and 80° side turning on both sides, so one operator can bring a panel square to the opening without a second person guiding it.



7. Light and acoustic alert indication. A loss of vacuum is raised on the machine as well as being visible to the operator, which matters when the panel is at height and nobody is looking at the cups.



8. Electric hydraulics with a wired remote control. The wired handset is a deliberate choice on a machine of this size: it is held in the hand rather than carried loose, it does not drop mid-lift, and it still controls the powered functions with the operator standing clear of the load.



9. DC12V-100Ah × 2 battery packs with AC220V / 110V-240V charging give 6-8h of work time, so a full shift runs on one charge and the machine charges from the same site supply.







The WSR-600XR is a heavy-duty wheel-type glass vacuum lifter with six Dia.290mm suction cups on dual pumps and dual vacuum circuits, rated to 600kg at 5000mm with 1400mm + 600mm of arm extension. The suction cup head is removable and can be replaced with a hook, so the same machine also lifts non-flat loads such as coils, ducts, buckets and pallets. Four load curves of 600kg, 400kg, 250kg and 130kg are published with the machine, so the capacity for your own load can be confirmed against the curve before you order. The frame gives 360° endless rotation, 30°/90° tilting, ±100mm side shifting and 80° side turning on both sides; the drive is a 24V front wheel motor with 20% uphill capability for rough ground; the hydraulics are electric and the powered functions are controlled from a wired remote handset; and light and acoustic alert indication is standard. Minimum dimensions are 3147 × 800 × 1517mm and self weight is 1686.5kg, so access and floor loading should be checked before delivery. It is CE certified, backed by a 1-year warranty including the battery, and supplied as a complete unit with charger and remote control. Send us your heaviest load, the load dimensions and the height you need to reach, and we will confirm the capacity from the load chart, the head to fit it and a video of the machine handling a load of that specification.



1. How much can it lift, and how does the load change?
Up to 600kg to a 5000mm lifting height with 1400mm + 600mm of arm extension. The maximum load accords the length of the extended arm, and four load curves of 600kg, 400kg, 250kg and 130kg are published with the machine, with 350kg marked at the top of the 5m graph. Send us the load weight, the load dimensions and the height you need, and we will read the rating off the curve for you.



2. What size of panel can the suction cups hold?
Six Dia.290mm cups are fitted, spread across the head and fed by dual pumps and dual vacuum circuits, which suits large rectangular panels rather than small square units. Because the load is carried across the panel width instead of at two small points, a large single panel can be handled without a frame or a second machine. Send us the panel dimensions and we will confirm the cup layout and the capacity together.



3. Can the suction cup head be changed to a hook?
Yes. The suction cup head is removable from the boom and can be replaced with a hook, so the load does not have to be a flat glass panel. Typical hook work includes coils, ducting, buckets, pallets, drums and other slung loads, and the boom, the frame articulation, the drive and the 600kg rating stay the same. Tell us the load weight, the load dimensions, the lifting point and the height you need, and we will confirm whether the suction cup head or the hook is the right head for it.



4. Can it work on ramps, slopes and unfinished ground, and will it fit through our door?
The drive is a 24V motor on the front wheel with 20% uphill capability, and the machine is built for rough terrain driving, so it is positioned under power rather than pushed or winched. Minimum dimensions are 3147 × 800 × 1517mm and self weight is 1686.5kg, so please confirm your doorway width, your access route and the floor loading before delivery and we will check the machine against it.



5. How is the machine operated, and what is the warranty?
The hydraulics are electric and the five electric functions — lifting, extension, rotation, tilting and side shifting — are controlled from a wired remote handset, while side turning is manual. Light and acoustic alert indication is standard. The machine uses most common hardware parts, so parts can be bought locally rather than shipped from us, and if it breaks down we guide the repair by video and repair instruction. One year quality guarantee including the battery; if it breaks down within one year we send the parts free of charge.
