Product details

Fiber Optic Cable 48 96 Core

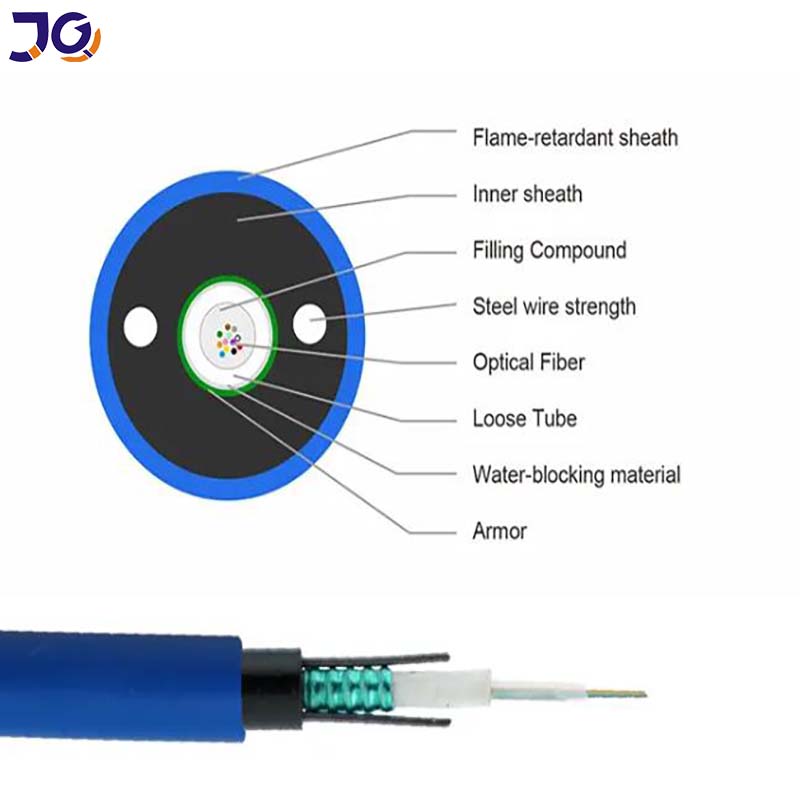

outdoor mining Flame Retardant Mine Fiber Optic Cable is designed for the mining industry, offering flame-retardant and anti-rodent properties. The cable's structure features 250μm optical fibers in loose tubes made of high-modulus materials and filled with waterproof compounds. A metal reinforcing core is surrounded by loose tubes and filler ropes, forming a compact and round core. The cable's gaps are filled with water-blocking fillers and double-sided plastic-coated steel tape wraps the core for added protection.

Item	Single mode G652D 48 core fiber optic cable for mining
Number of fiber	4-576 core
Attenuation Coefficient 1310nm dB/km	≤0.35
Attenuation Coefficient 1550nm dB/km	≤0.22
Loose tube(PBT)	4 tubes, each tube containing 12 fibers
Cable diameter	10.0mm
Tension（Long Term）	800N
Tension（Short Term）	2000N
Crush（Long Term）	500N
Crush（Short Term）	1200N
Operating temperature	-40～+70℃

The fiber optic cable features flexibility, high security, and a water-blocking system. Its double sheath and single armor design provide excellent crush resistance and waterproof performance. The loose tubes are made of hydrolysis-resistant material, ensuring robustness.

understanding mining cable also exhibits good flame retardancy, mechanical performance, and temperature stability. A special tube-filling compound provides critical protection for the fiber optic core.
