High Pressure Filter DFQE240

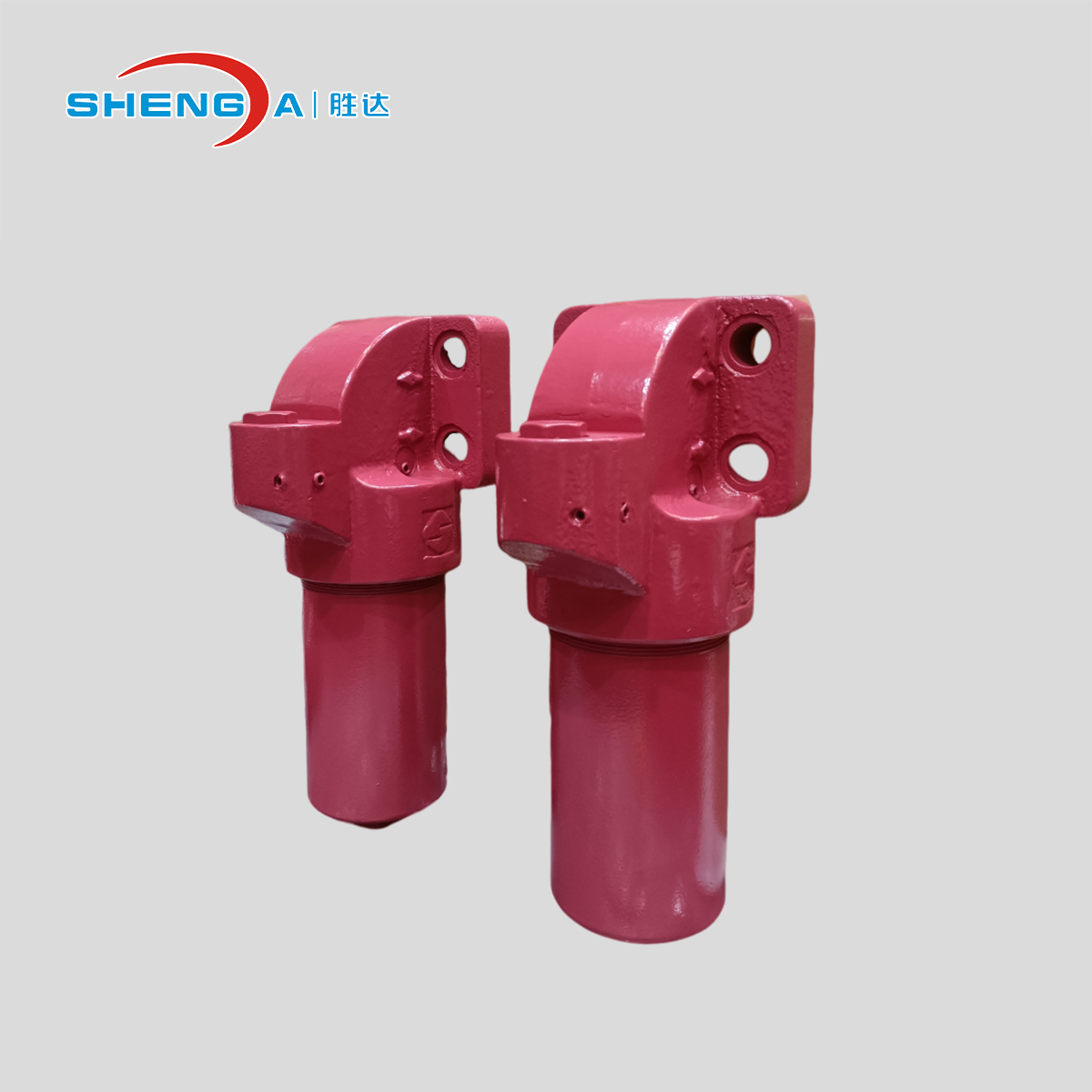

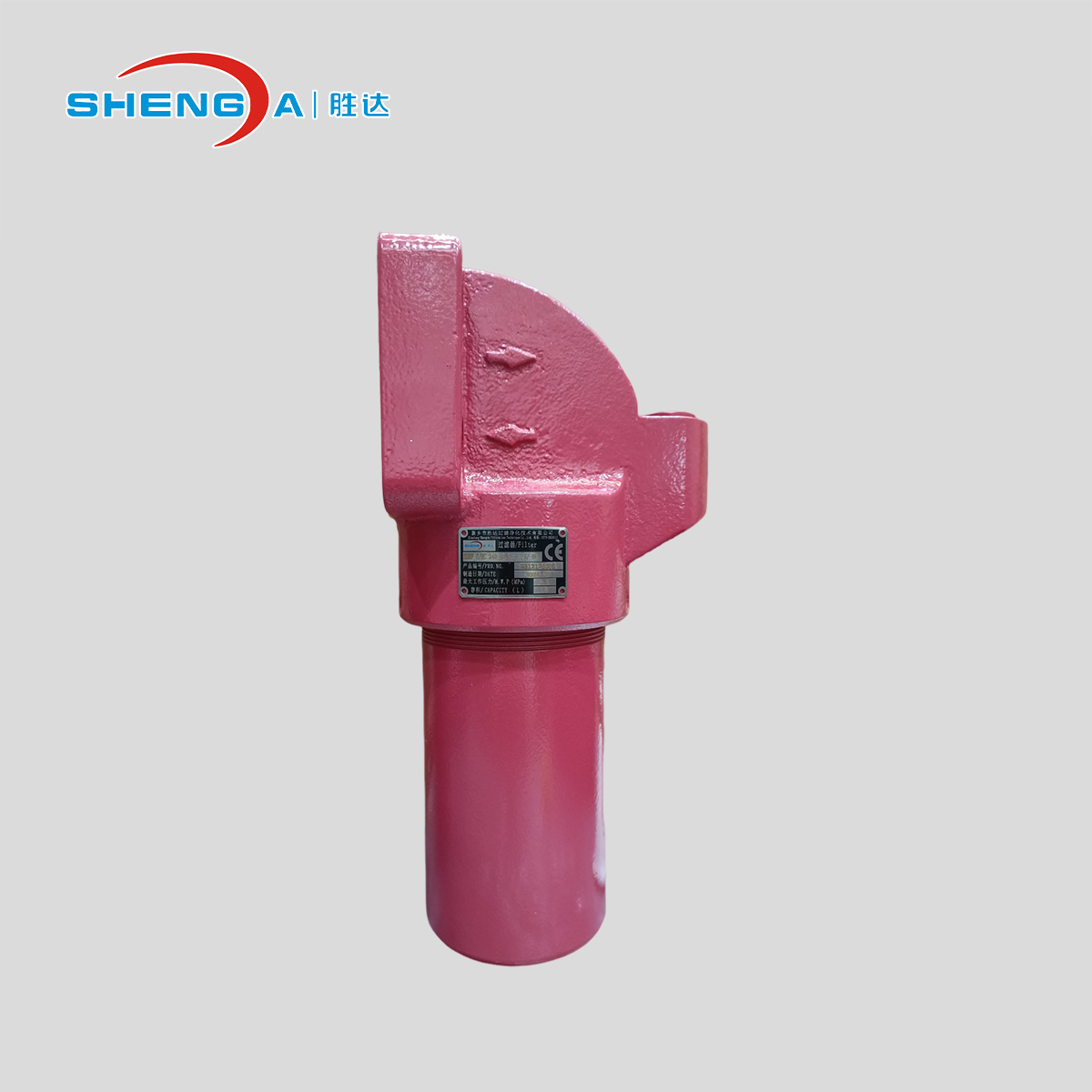

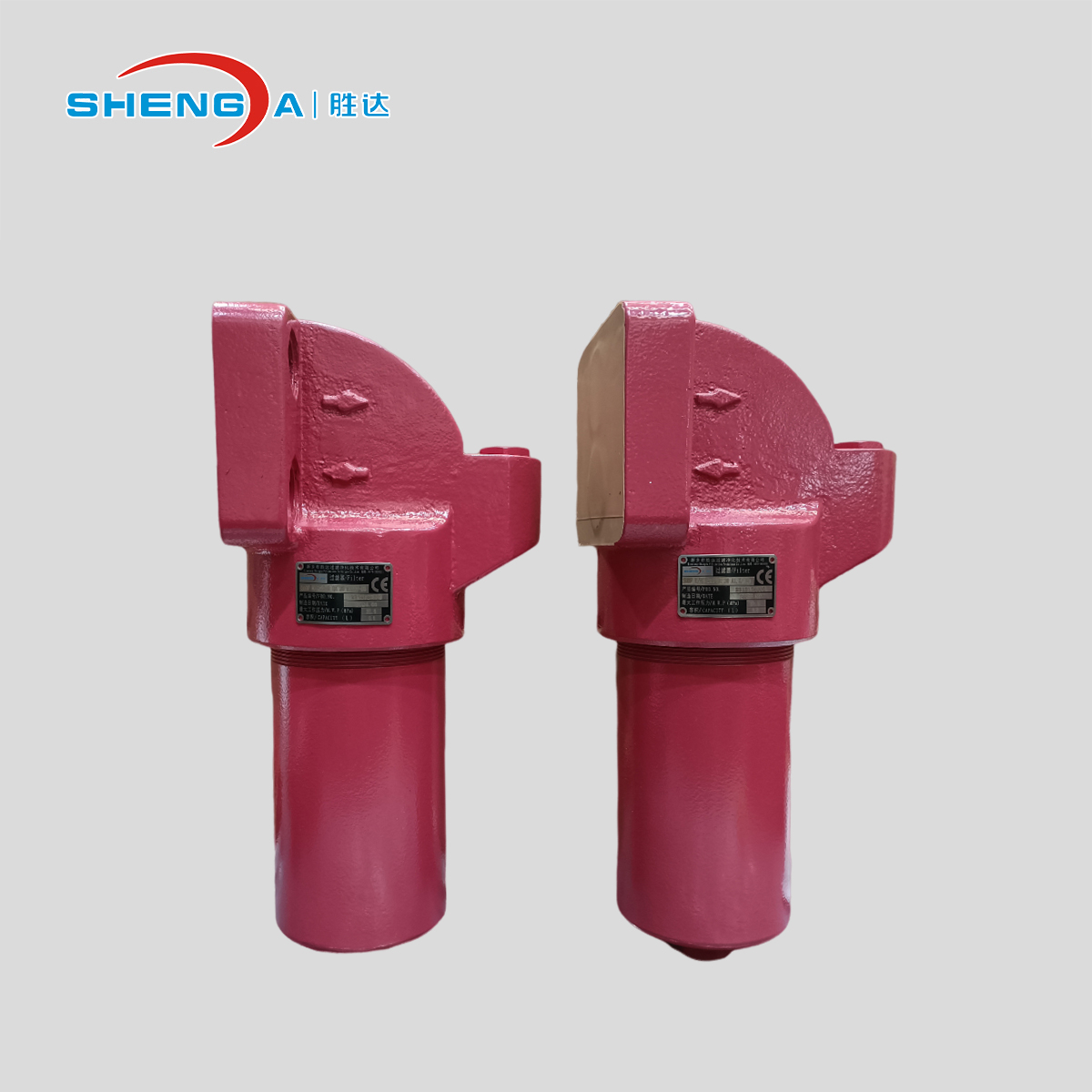

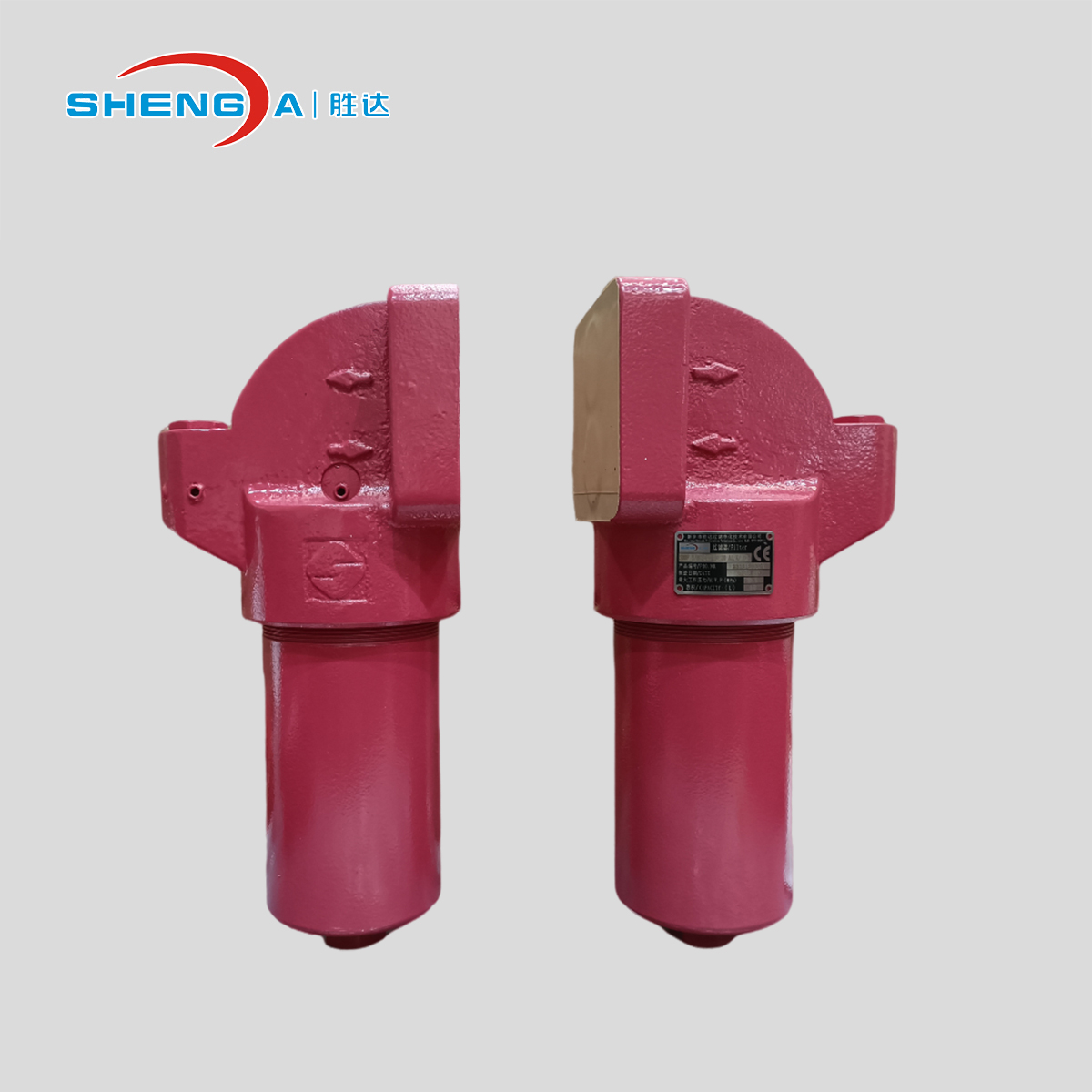

High Pressure Oil Filter Flange-mounted

Boasting exceptional performance with a maximum flow rate of 500 L/min and pressure resistance up to 315bar, this High Pressure Oil Filter Flange-mounted is meticulously crafted from premium materials—GGG/ADI and steel—ensuring durability and reliability in demanding industrial environments.​

1.Product Features

Efficient Filtration: Utilizing high-precision filter media, it effectively removes impurities and particulates from oil, safeguarding hydraulic systems against contamination.

High-Pressure Durability: Designed specifically for high-pressure applications, it can withstand continuous operation under intense pressure, ensuring stable system operation.

Longevity & Reliability: Crafted from superior materials and precise manufacturing processes, the filter ensures durability and minimizes replacement frequency.

2. Technical Specification

2.1 Filter Housing

Construction

Chang-over pressure filters are designed in accordance with international regulation, which consist of a filter housing with a screw-on cover plate.

Standard equipment

*mounting holes in the filter head

*two-piece bowl for size 060 and above

*compatibility with fire-resistant fluids HFA/HFC

*drain plug with pressure relief (size 330 and above)

SDDF30-280QE Inlet is on the top of outlet

SDDF330-13200E Outlet is on the bottom of inlet

2.2 Filter Element

Shengda are sure that our filters are of reliable performance so that they can protect hydraulic parts from polluting and machines from abrasion.

Filter elements are available with the following pressure stability values

BN/HC:25bar

BN/HC:210bar

W/HC:30bar

V:210bar

2.3 Seals

-NBR(=NBR)

2.4 Special models and accessories

-with bypass valve

-drain plug with pressure relief

-seals in FPM, EPDM

3.General

*Mounting

As pressure filter for flange mounting

*Temperature range -10℃~+100℃ (-30℃~-10℃: Pmax=0.5* nom. Press.)

*Pressure setting of clogging indicator

ΔPa=5bar-0.5bar

*Bypass cracking pressure

ΔPa=6bar+0.6bar
