Titanium alloy
8 month ago
Titan Grade 5/6AL-4V9/ASTM B 348 Chemical Composition
| Fe | O | C | H | N |
| ≤0.30 | ≤0.18 | ≤0.08 | ≤0.015 | ≤0.03 |
The following table shows the mechanical properties of grade 17 Ti-0.05Pd alloy.
| Properties | Metric |
| Tensile strength | 345 MPa |
| Yield strength | 220 MPa |
| Poisson's ratio | 0.34-0.40 |
| Elongation in 50 mm (A5) | 25% |
| Hardness (HV) | 115 |
From:

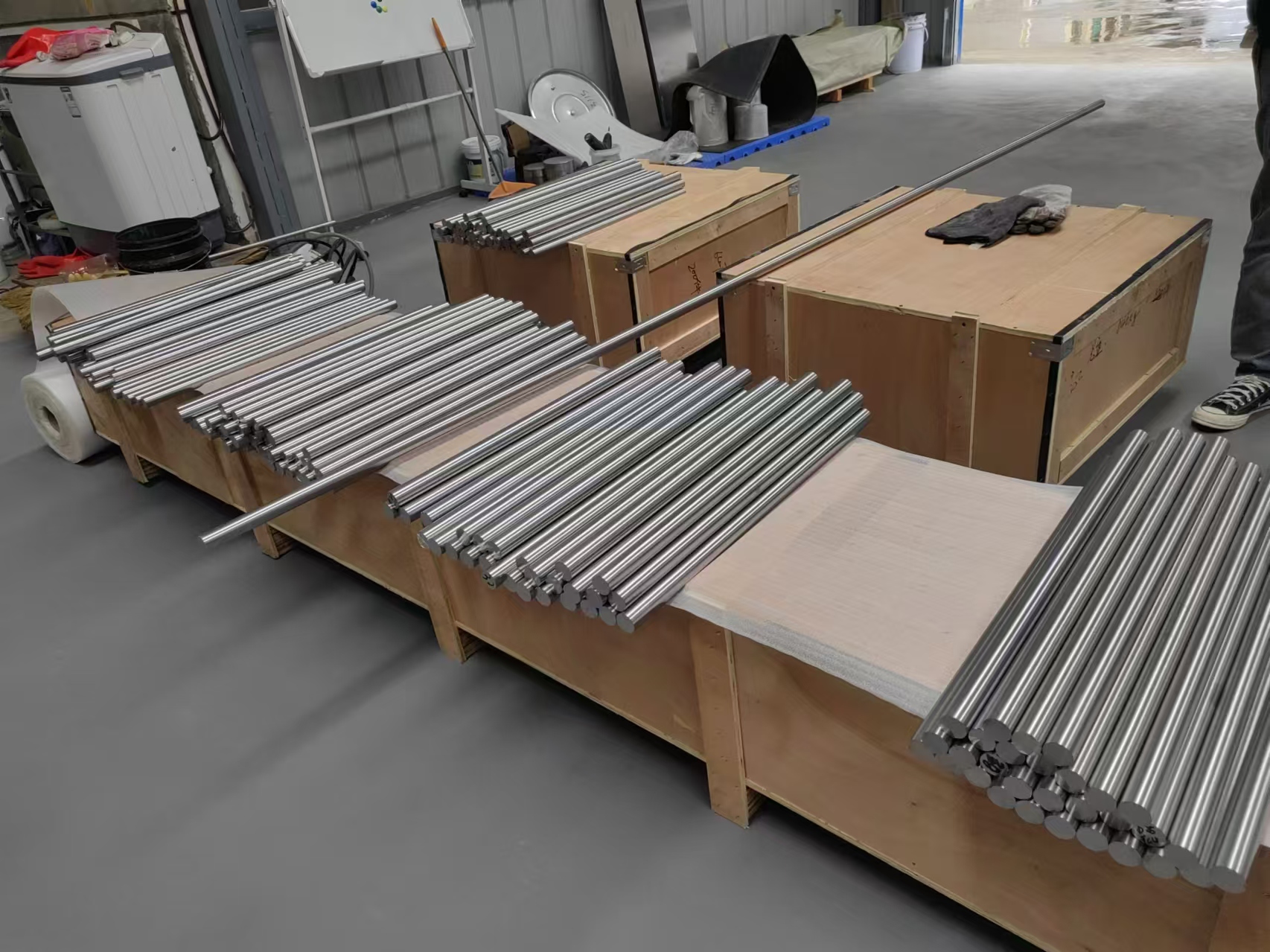

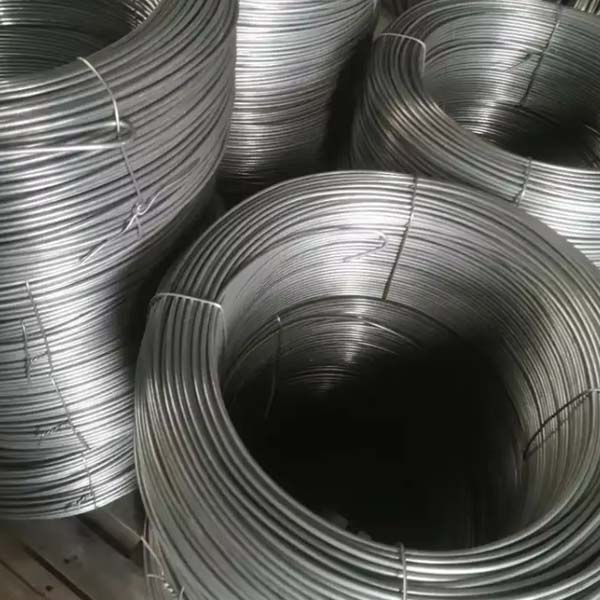

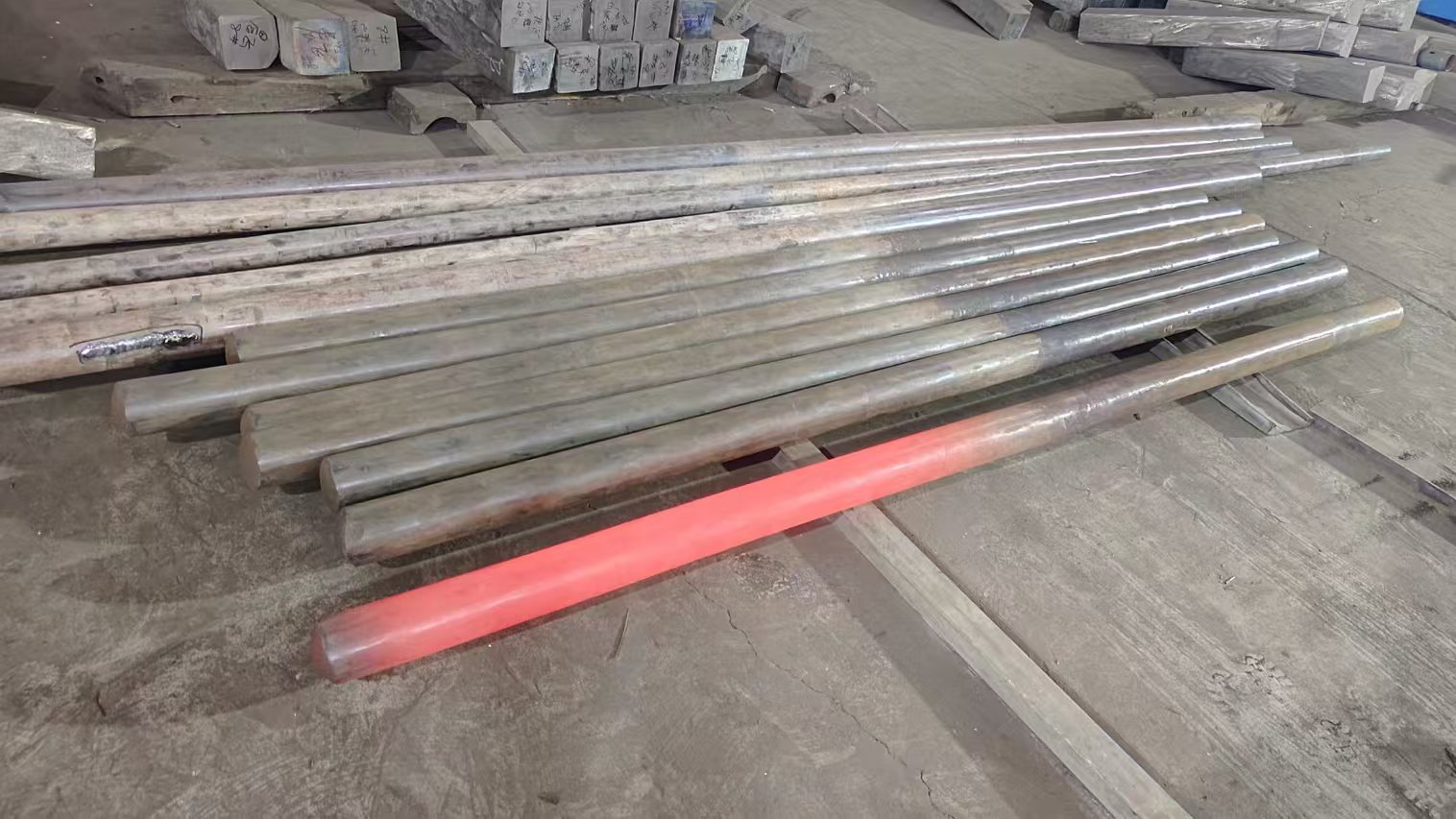

Ingot/Bloom, Bar, Billet, Plate, Strip, Welded Tubing, Welded Pipe, Wire
Annealing
Annealing of this material can be performed by heating to 650-760°C (1202-1400°F) for 6 min -2 h and then air-cooled.
In case stress relieving is required, the material has to be heated to 480-595°C (896-1103°F) for 15 min - 4 h, and then air-cooled.
