drum packing machine

Technical parameters of welding wire barrel filling machine(barrel packing machine)

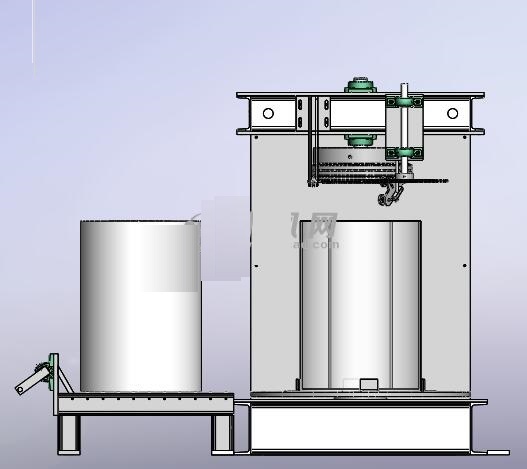

1、 Equipment composition - QTZ1500 welding wire barrel filling machine

The equipment consists of an 800 I-shaped wire laying machine, a barrel loading host, and an electrical control system.

2、 Main technical parameters

1. Wire laying I-shaped wheel: φ 800x φ 400x600 (optional according to user size);

2. Wire types: copper plated welding wire, flux cored welding wire, aluminum welding wire, non-ferrous alloy wire;

3. Line diameter range: φ 1.0 to φ 1.6;

4. Barrel loading speed: Normal working speed: 8-12m/s (depending on the diameter of the welding wire barrel and wire specifications)

5. Specification of welding wire barrel: Outer diameter of barrel: φ 510 φ 660; Barrel height of 300ell-1000; Barrel weight (maximum): 350kg; Can be used for winding up paper tubes with or without cores.

6. Electrical power: discharge motor: 22kw; Barrel host 9.9kw, 380V/50Hz;

7. Gas source: 0.5-0.6Mpa;

8. Equipment footprint: 6.5mx2m; Barrel mounted host: 3700 x 1900 (length x width).

The welding wire drawing machine line includes

1-Pretreatment line(descaler machine or peeling machine)

2-Wire drawing machine  (pay off machine and take up machine)

3-layer winding machine or drum packing machine

4-Butt welding machine  & pointing machinebd
