h2pt desktop scanner
3 year ago

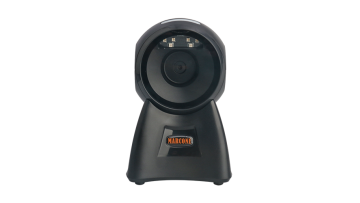

model No.: MC-H2PT global shutter desktop Wired barcode scanner
1- CMOS image sensor. Super scanning and decoding ability, can read incomplete and fuzzy codes.
2- Plug and play, no driver needed. Wide angle lens design, scans a large area.
3- Scans barcodes in sensitive lighting conditions, including through glass/plastic, in bright sunlight, in dark environments, or on curved/reflective surfaces.
4- Scanner reads 1D/2D/QR barcodes printed on labels or displayed on device screens.
5- Compatible with Linux, Android, Mac OS, Windows XP/7/8/10.
6- Suitable for supermarket, retail, warehouse, library, hospital, etc.
|
Performance Parameters |
Picture Sensor | 640*480 CMOS | |||||||
| Capacity | 1D | EAN-8,EAN-13,EAN-13 2 add-on, EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code11,Code 32,Code 39,Code 39 FullASCII,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,GS1-128,GS1 DataBar(RSS14),GS1 DataBar Limited,GS1 DataBar Expanded | |||||||
| 2D | PDF417,MicroPDF417,MicroQR, Data Matrix,QR Code,Aztec | ||||||||
| Depth of Field | Tested Code | Minimum | Maximum | ||||||
| 6.6mil code39 | 4cm | 7cm | |||||||
| UPC-13mil | 1cm | 16cm | |||||||
| PDF417 8.3mil | 2cm | 13cm | |||||||
| System Compatibility | Linux,Android,Windows XP,7,8,10,MACOS | ||||||||
| Decode Accuracy | Code 39 4mil | ||||||||
| Code Available | 1D, 2D Codes printing on Paper or film or screen | ||||||||
| Scan Rate | 30 Fps | ||||||||
| Scan Pattern | Automatic induction continuous scan,Manual Scan | ||||||||
| Keyboard support | American-English, French, Italian, German, Spanish, Turkish Q, Belgian (French), British-English,Portuguese (Portugal),Portuguese (Brazil) | ||||||||
| Barcode language support | Simplified Chinese (win system) | ||||||||
| Invoice function | Support( for China market only(win system) | ||||||||
| Secondary development | Not support | ||||||||
| Barcode output editing | support adding prefix and suffixes, hidden characters | ||||||||
| Symbol Contrast | 20% | ||||||||
| Scanning Angle | Horizontal : ±70° Vertical:±60° Rotated: ±360° | ||||||||
|
Human- computer interaction |
Indicator light | Red & Blue indicator light | |||||||
| Buzzer | Start Tips,Reading code tips | ||||||||
|
Environment Parameters |
Drop | Design to withstand 1.5 M drops to concrete 3 times | |||||||
| Environmental Sealing | IP54 | ||||||||
| Working Temperature | -20-55℃ | ||||||||
| Conserve Temperature | -20-60℃ | ||||||||
| Working Humidity | 5-95% Non-Condensed | ||||||||
| Conserve Humidity | 5-95% Non-Condensed | ||||||||
| Environment Light | 0-70000LUX | ||||||||
|
Physical Parameters |
Net Weight | 372g | |||||||
| Packing Weight | 500g | ||||||||
| Data line length | 180CM(±3CM) | ||||||||
| Host Size(L*W*H) | 104.8*104.8*147mm | ||||||||
| Packing Size(L*W*H) | 180mm*168mm*121mm | ||||||||
| Interface | USB(Drive free), serial port | ||||||||
| working voltage | 5V | ||||||||
| USB | Standby current | 133mA/0.665W | Serial port | Standby current | 357mA/1.785W | ||||
| Working current | 133mA/0.665w | Working current | 357mA/1.785W | ||||||
| Working current(Max) | 175mA/0.875W | Working current(Max) | 358mA/1.79W | ||||||
