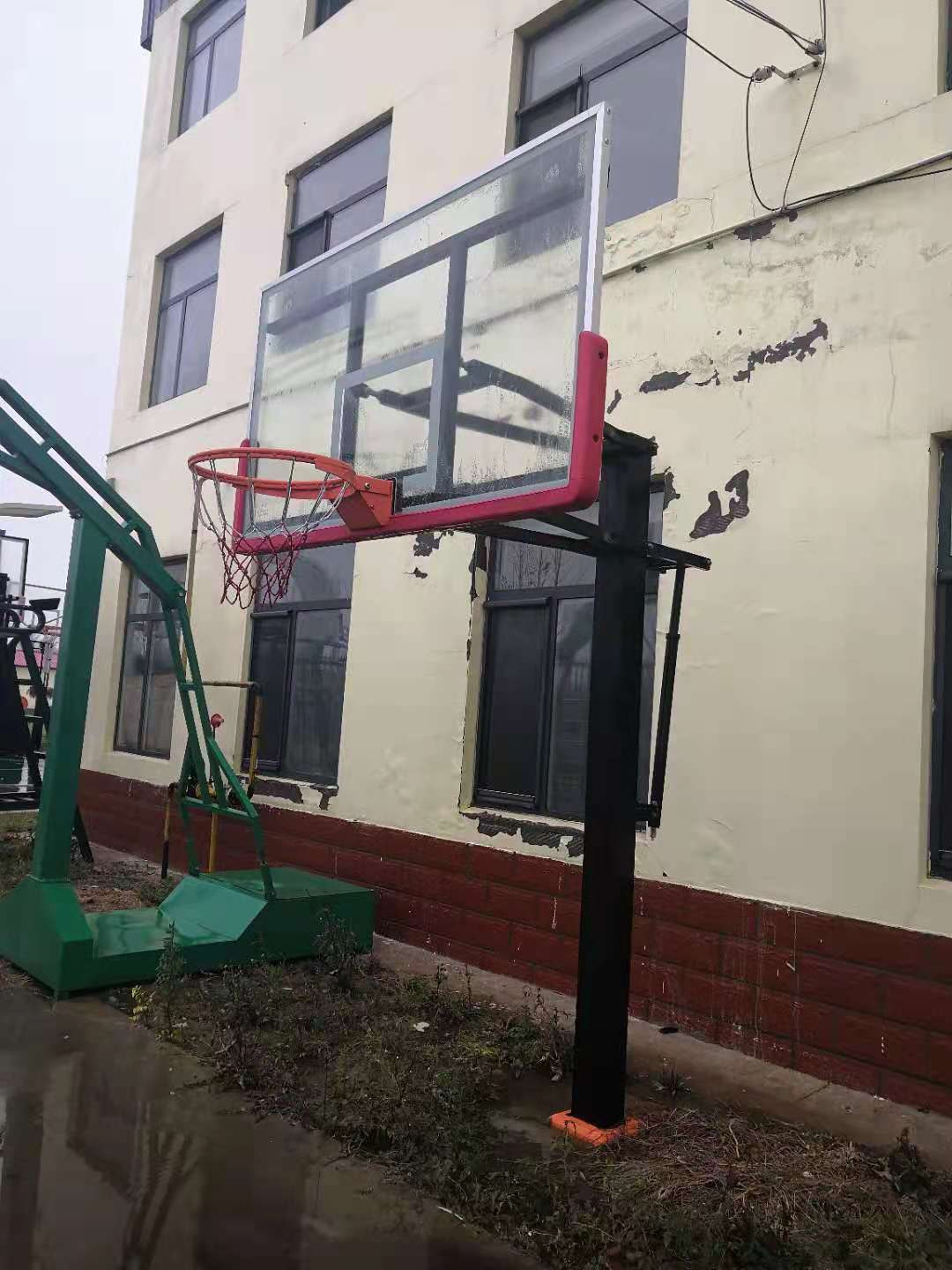

inground height adjustable basketball hoop

1.Product specifications and materials

1) The outstretched arm is 1.2m, on the rim of the ring is adjustable from the ground. It’s 1.6-3.05m

2) The Upper and lower support frame is welded by 30*50*2mm square tube

3) the post is welded by 150*150*2.5mm square tube.

  Theoretical weight: 120kgs/pc

  Fit for over 7 years old children

2、Embedded installation

The product adopts special iron embedded parts. The embedded parts shall be embedded in advance before the

ball frame installation, and the overall installation shall be carried out after the maintenance period. The basket

and embedded parts are connected by flange, specification: 240*240mm, with large rounded corners around

 3．Backboard

Specifications: 1800X1050 (mm) x10.0, and high strength and safety tempered glass with high strength, good durability,

anti-aging, corrosion resistance, and not easy to be fuzzy. The protective strip is covered along the side of the backboard,

which can effectively protect players from dunk.

4．Rings

The backboard is with standard basket ring and Φ18 steel, which is rolled on the automatic tube winding machine.

The hoop has good tensile properties and high strength.

The use of high-strength stainless steel bolts, nuts and washers is strong, which can prevent loosening in long-term use.

The ring is elastic structure

5．surface treatment

The final surface treatment was finished on the automatic spraying line by electrostatic epoxy based powder spraying

on the automatic spraying line. The thickness of the coating was 80um to 120um. The product has the advantages of

acid and alkali resistance, moisture and heat resistance, anti-aging, beautiful appearance, and the product coating

formula does not contain toxic elements, to avoid damaging the health of users.
