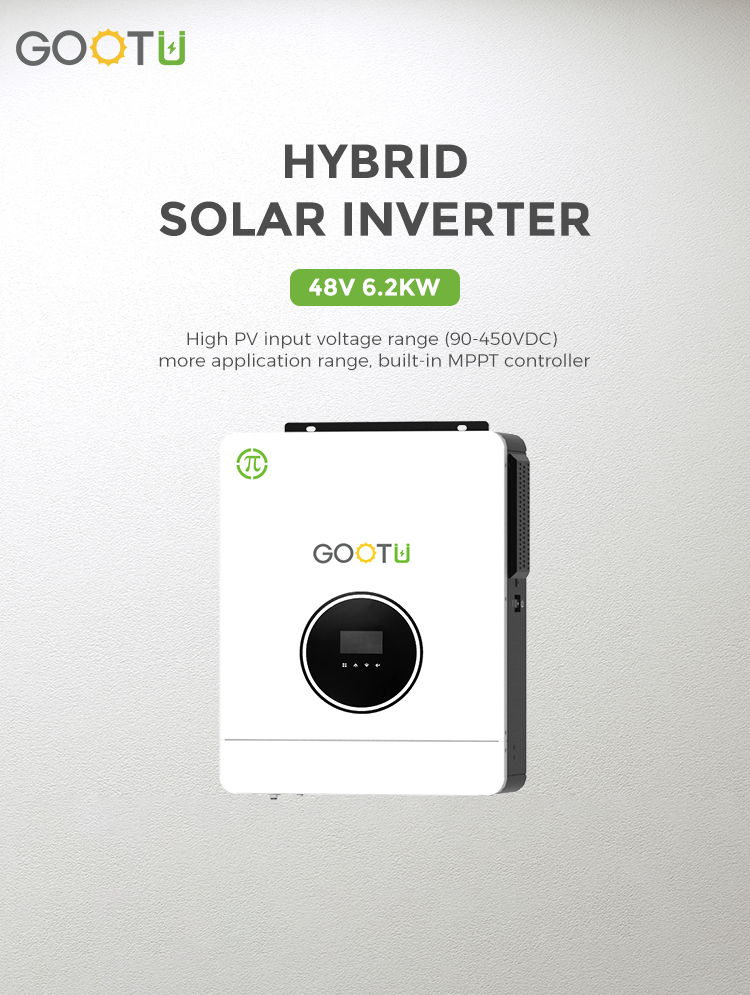

6.2KW Single Phase Hybrid Solar Inverter

12 month ago

53 0 

Shenzhen Jiesaiyuan Electricity Co., Ltd.

4 year

Product details

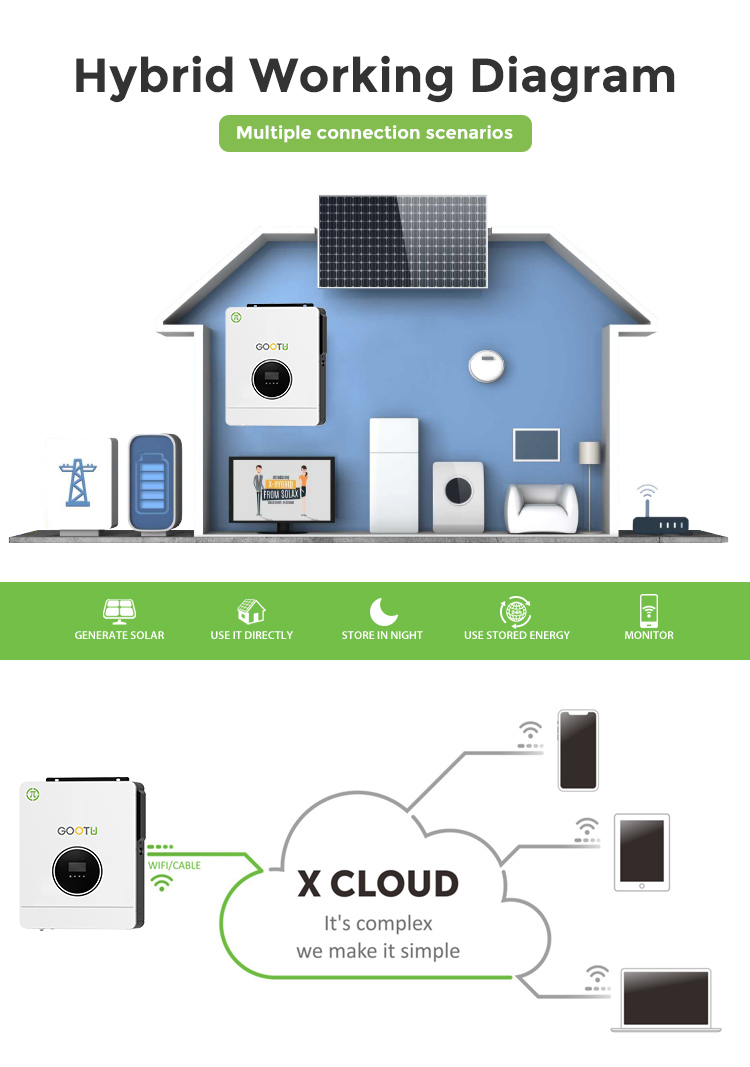

GOOTU 6.2KW dual output hybrid solar inverter is a type of solar inverter that has two separate AC outputs. This allows for the inverter to be used in a variety of different applications, such as powering two separate buildings or powering a home and a backup generator simultaneously. The dual output feature also allows for greater flexibility in system design, as it can be used to optimize energy production and distribution. Dual output solar inverters are commonly used in larger residential and commercial solar installations.

Data Sheet

Model	JSY-H4862E120-D
Maximum PV Input Power	6500W
Rated Output Power	6200W
Maximum Solar Charging Current	120A
GRID TIE OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage	360VDC / 500VDC
Start-up Voltage/lnitial Feeding Voltage	90VDC / 120VDC
MPPT Voltage Range	90VDC - 450VDC
Number of MPPT Trackers/Maximum Input Current	1 / 27A
GRID OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	195.5-253VAC
Nominal Output Current	27A
Power Factor	>0.99
Feed-in Grid Frequency Range	49~51±1Hz
EFFICIENCY
Maximum Conversion Efficiency(DC/AC)	98%
TWO LOAD OUTPUT POWER
Full Load	6200W
Maximum Main Load	6200W
Maximum Second Load(battery mode)	2067W
Main Load Cut Off Voltage	44V DC
Main Load Return Voltage	54V DC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage	120-140V AC/180V AC
Acceptable Input Voltage Range	90-280 V AC or 170-280V AC
Maximum AC Input Current	40A
Nominal operating frequency	50/60Hz
Surge power	12400W
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage	220/230/240V AC
Output Waveform	Pure sine wave
Efficiency(DC to AC)	94%

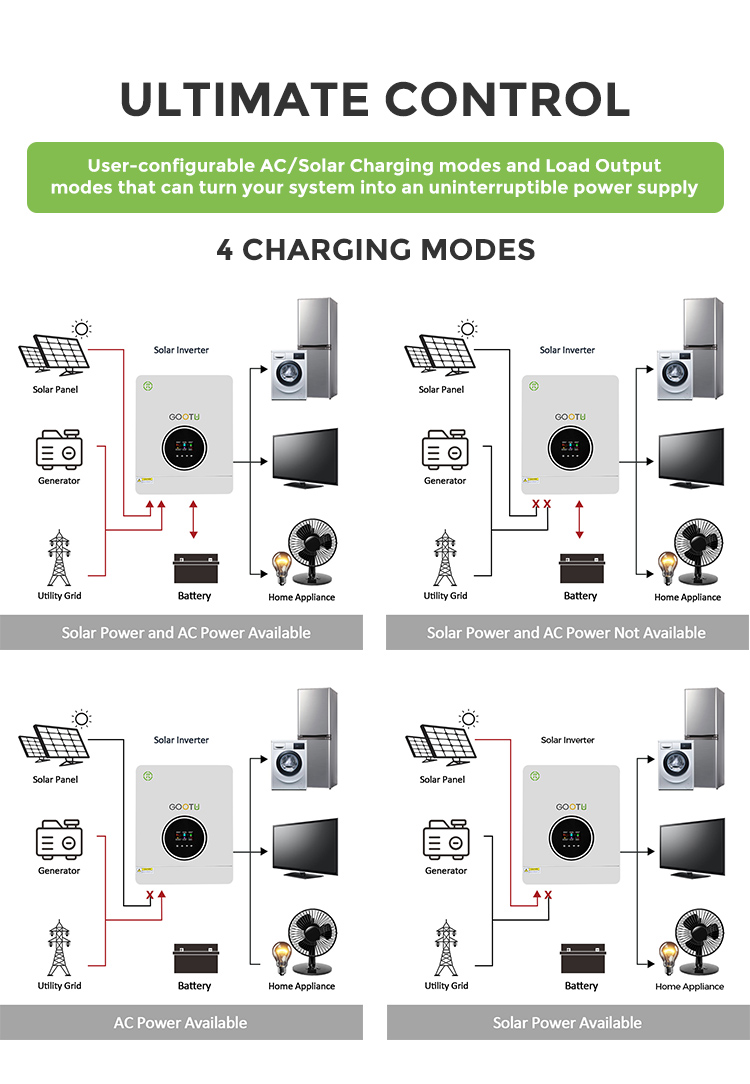

BATTERY&CHARGER
Nominal DC Voltage	48V DC
Maximum Solar Charging Current	120A
Maximum AC Charging Current	100A
GENERAL
PHYSICAL
Dimension,D X W X H(mm)	420310110
Net Weight(kgs)	11
INTERFACE

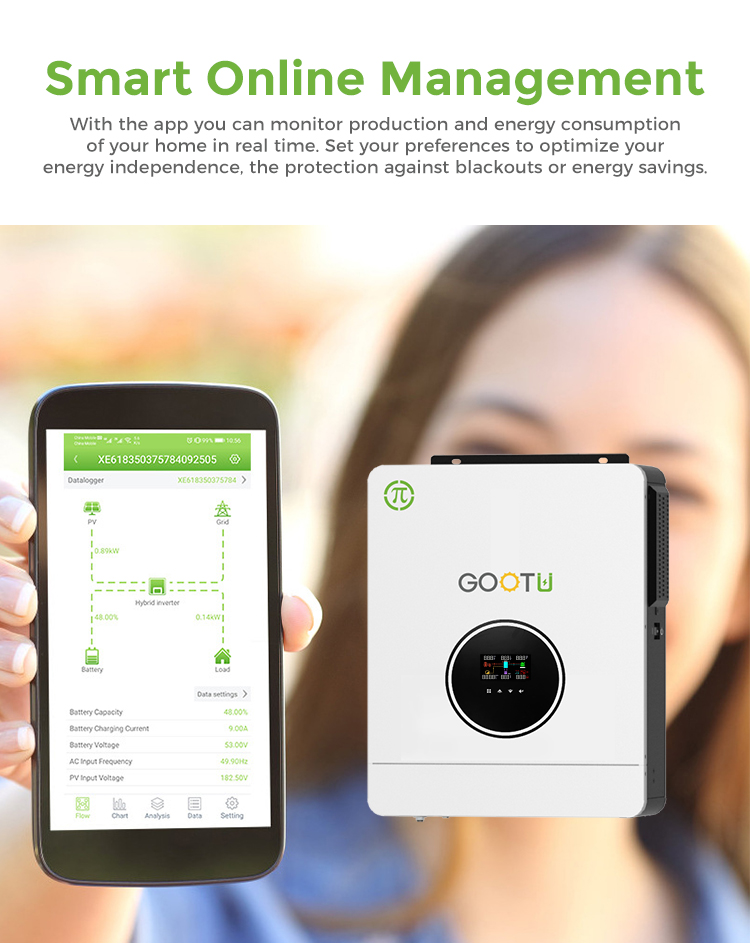

Communication Port	RS232/WIFI/Remove LCD/GPRS
ENVIRONMENT
Operating Temperature	-10-50℃
