CT-c (85)

Rotation Barrel Dryer

 Features:

1. Most hot air is circulated in the Rotation Barrel Dryer . The heat efficiency is high and the energy is saved. By using the forced ventilating function, there are adjustable air distribution plates inside the oven, the materials can be dried uniformly.

2. The heating source of Rotation Barrel Drying Oven might be steam, hot water, electricity and far infrared, with a wide selection.

3. The whole Rotation Barrel Dryer is low in the noise. The operation is in balance.

4. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide.

5. The machine made by all stainless steel-client can choice 304 stainless or 316L stainless steel base application.

Hot air drying oven Description

CT-C series hot air circulating Drying oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven increases to 35-40%. The highest heat efficiency can be up to 50%.

CT-C series hot air circulation tray dryer is the most often used convection chamber dryer. Inside the drying chamber, trays loaded with wet material are placed on top of each other in trolleys.

In drying process, fresh cold air is sucked into the drying chamber via the circulation fan and flows through the steam radiator or electrical heating tubes installed in the top to get required temperature. With the help of air distributor, hot air evenly flows through each layer of trays for heat transfer and carries way the evaporated moisture. Most of the damp air flows back to the circulation fan for circulation while part of the damp air is exhausted. The drying process is batch operation. After the drying is finished, open the chamber door and pull out the trolleys for unloading the dried product.

CT-C series hot air circulation tray dryer can be used for drying or heating almost all kinds of wet materials, such as liquid, slurry, paste, cake, powder, granule or sliced materials in almost all kinds of industries.

Main Parts of Hot Air Circulation Drying Oven

Food hot air drying oven consists of several main parts like baking trays, fan, heater, tray cart and so on.

External cabinet

The External cabinet is made of stainless sheets. It covers the inner chamber.

Glass wool insulation

The space between the inner chamber and external cabinet is filled with Glass wool. It provides insulation to the hot air oven.

Inner chamber

The inner chamber of the hot air oven is made of Stainless steel.

Tubular air heaters

Heater help to generate heat within the inner chamber of the hot air oven. electrical heaters are located on up sides of the fruit hot air drying oven, and steam heater are located on the side of inner of the oven.

Motor-driven blower

 It helps in uniformly circulating the air within the chamber. The fan is the auxiliary part of the fruit hot air drying oven with the power of 0.75kw / set. The materials for manufacturing fan are aluminum alloy or stainless steel.

Temperature sensor

 It measures the temperature within the fruit hot air oven and displays it on the controller screen.

Tray cart

 the cart load the tray and move inside the of food hot air dryer oven, The baking vehicles and its wheels are made of stainless steel. Their customization is also available.

Tray

 Once Shaping Pressed Baking Trays are specially designed auxiliary products for hot air circulation drying oven. Generally, the baking tray is made with the standard size of 640*460*45mm and it also can be customized according to customers' demands.

Temperature controller: It maintains the accurate temperature during the entire cycle. It also controls the temperature and also displays the temperature values.

Application
This drying oven is suitable for material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, dewatering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

Optional Choices
1. For the main electrical components , we have international brand choices such as ABB , Siemens or Schneider or others.
2. For the material for the machine , we have choices on AISISUS304 , AISISUS316L,carbon steel and so on .
3. For the control system , we have choices on push button, PLC+HMI and so on .
4. For the heating system for the machine , it is very flexible. we can configure it based on the customer site conditions ,such as steam ,electricity.

5. If without heating system , it can as a cooler to make particle with cooling air.

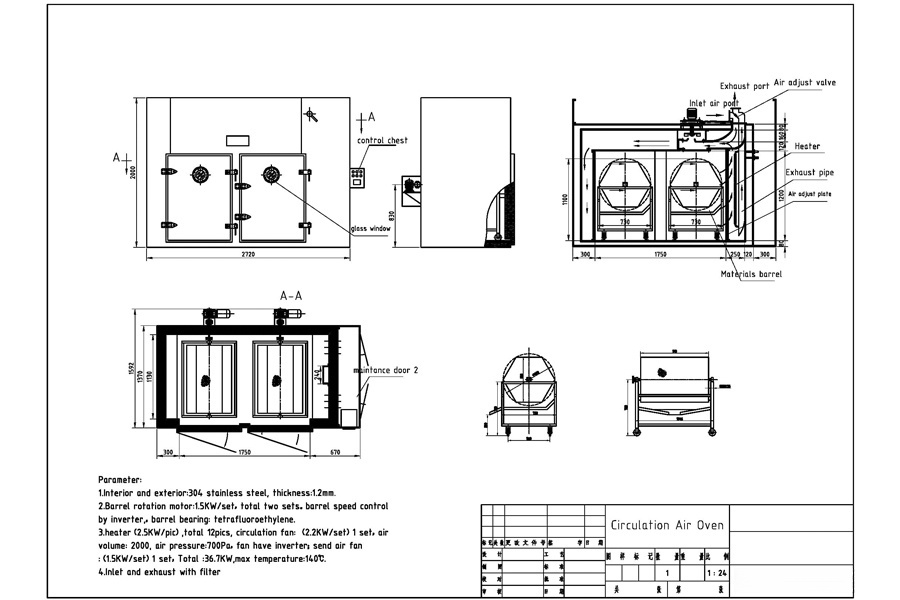

Rotation Barrel Drying Machine parameter:
