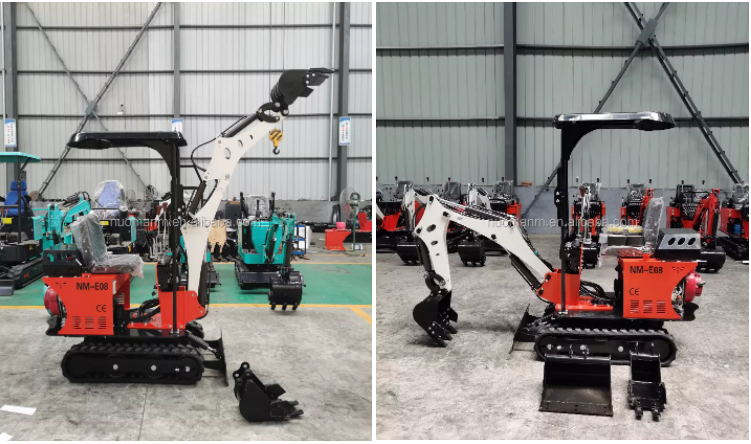

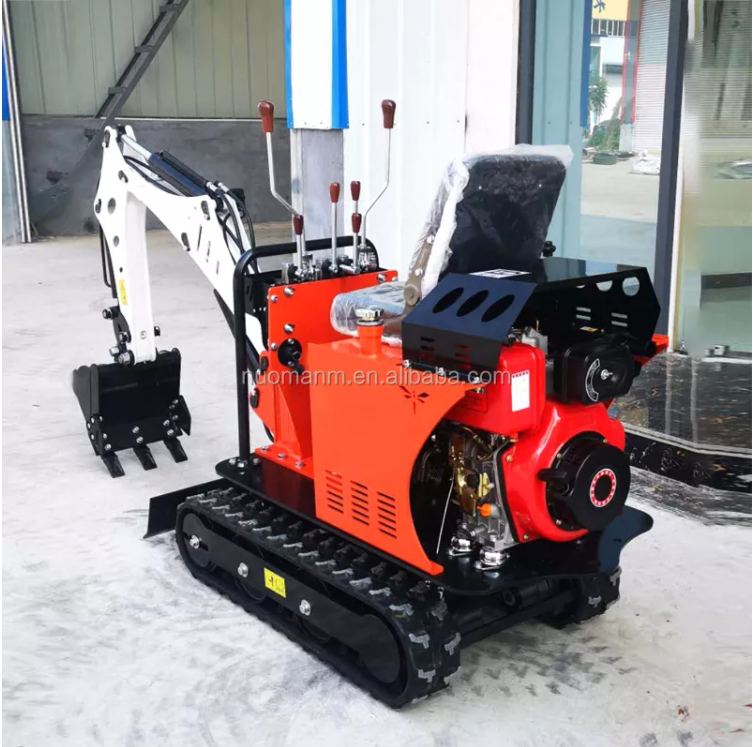

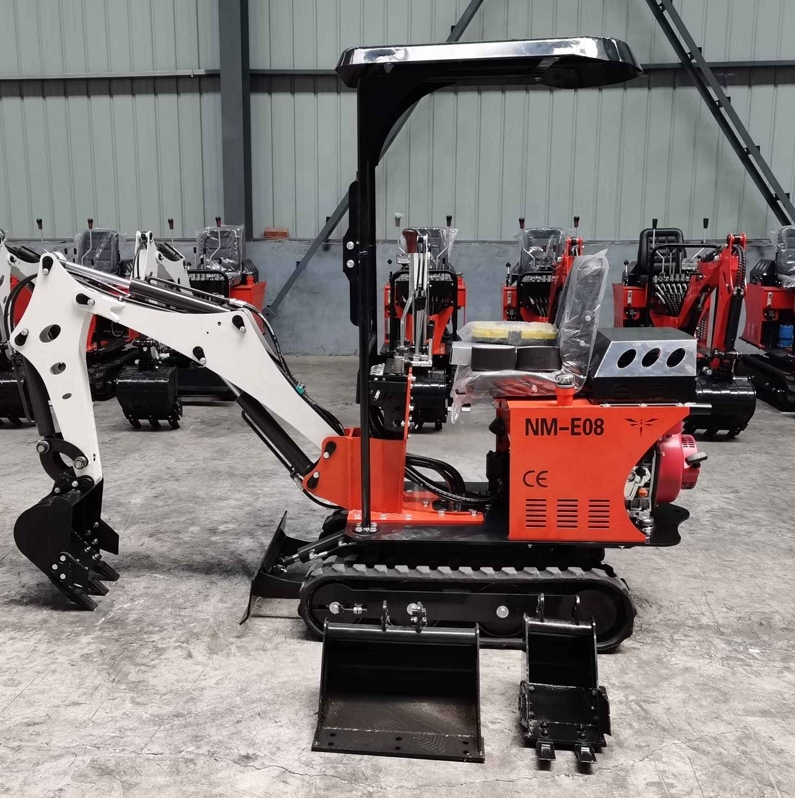

NM-E08 mini excavator
4 year ago
Our company produces power trowel, which is divided into ride-on power trowel, double pan power trowel, etc. It also produces mini excavator, which is divided into mini crawler excavator, mini rubber excavator, etc. But one of our hot selling products is road roller.
Our company's road roller divide into double drum road roller,single drum road roller handheld road roller ,hydraulic road roller,walk behind road roller and ride-on road roller.
|

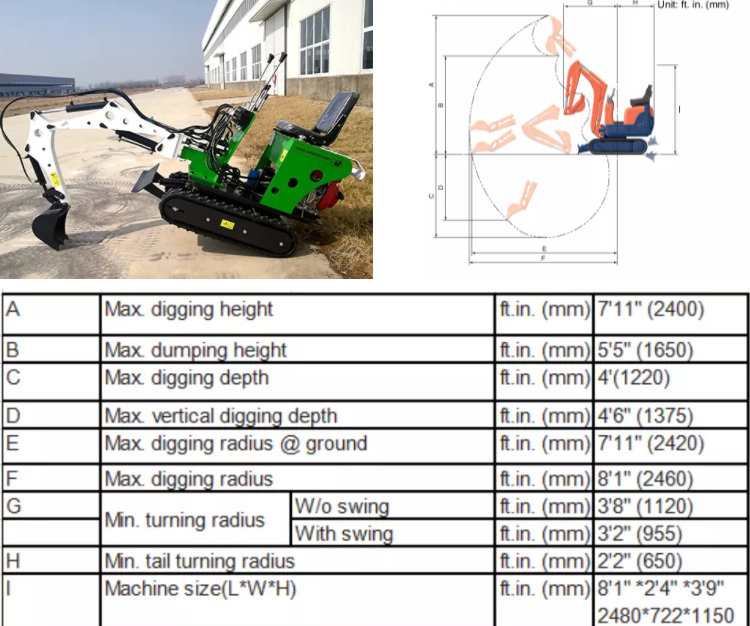

model
|
NM-E08
|
||
|
Vehicle weight
|
720kg
|
Maximum ground mining radius
|
2400mm
|
|
Standard shovel capacity
|
0.025-0.045m³
|
Digging Force
|
Max 7.5KN
|
|
Working device form
|
Backhoe
|
Pumps
|
Cast iron gear pump
|
|
Rated power
|
8.6kw
|
System relief pressure-Standard
|
14MPa
|
|
Wheelbase
|
720-780mm
|
track width
|
150mm
|
|
Caterpillar chief
|
1140mm
|
Minimum radius of revolution
|
1190mm
|
|
Platform clearance
|
380mm
|
Maximum lift height of earth shovel
|
120mm
|
|
Platform end radius of gyration
|
733mm
|
Maximum digging depth of earth shovel
|
200mm
|
|
Emgine Model
|
KP-192F
|
Horsepower (net)
|
8.6kw @ 3600rpm
|
|
Cooling
|
air-cooling
|
Fuel injection
|
direct
|
Main Features
The NM-E10 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

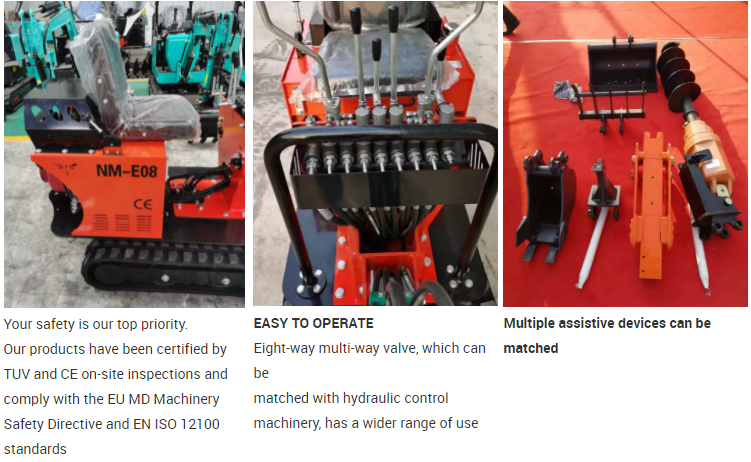

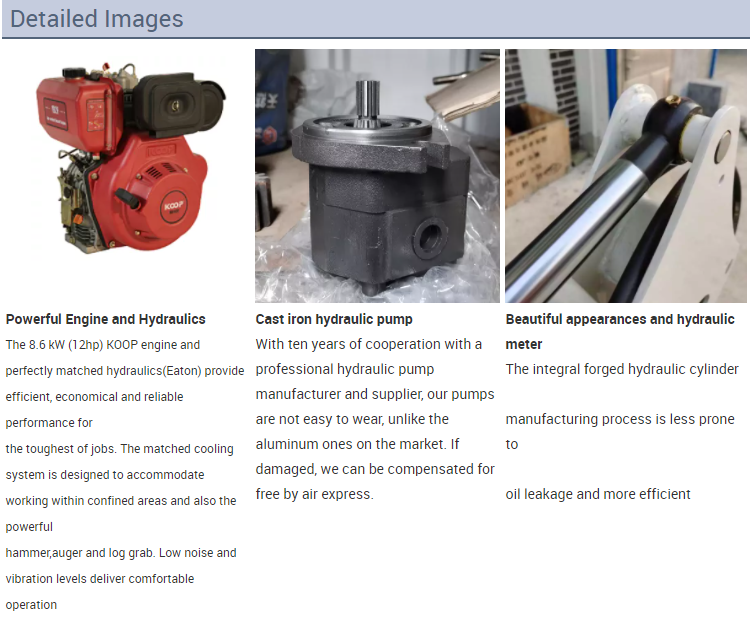

1. Engine: KOOP-192 engine, single-cylinder air cooled, 12HP, 8.6KW you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean up. 4. Multiple valves under the operating handle,The benefit of less effort and improved control
is in your hands! |
