YZPST-1D4812

2 year ago

41 0 

YANGZHOU POSITIONING TECH CO., LTD.

8 year

Product details

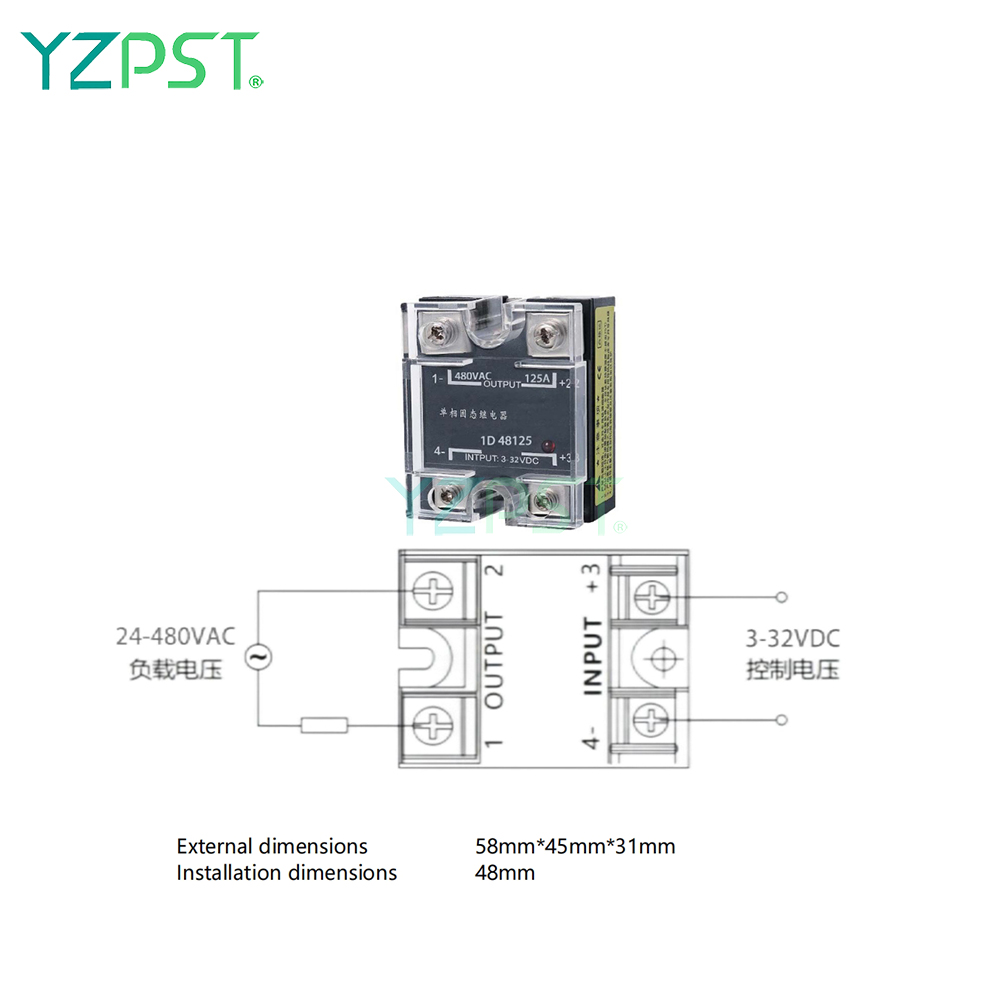

Solid state relay

YZPST-1D48125

Attribute deta

Wide input voltage range

Low control current, ≤ 25mA

Fast switching speed

low RF interference

The product is compact

shockproof, moisture-proof,corrosion-resistant

PARAMETER	VALUES		PARAMETER	VALUES
Rating Current	125	A	Off state time	≤10	mS
Load voltage	24-480	VAC	Dielectric Strength	2500	VAC
Control voltage	3-32	VDC	Ambient temperature	-30~75	℃
Control current	5月13日	mA	Installation method	Bolt fixation
On state pressure drop	≤1.5	V	Work instructions	LED
On state leakage current	≤2	mA	Insulation resistance	1000M/500VDC
