Commercial Door Push Bar Panic Exit Device

UL ANSI Single Point Locking Panic Touch Bar - Model DDPD026 by D&D HARDWARE

1. Product Overview

The DDPD026 UL ANSI Single Point Locking Panic Touch Bar by D&D HARDWARE is a UL-listed, ANSI-compliant panic exit device engineered for reliable egress in commercial and public buildings. As a core component of D&D’s Panic Hardware ecosystem, it features 1-point latching, available in durable steel (DDPD026-P) or SUS304 stainless steel (DDPD026-S) construction. This touch bar integrates seamlessly with Door Locks and Door Closers, ensuring compliance with North American safety standards in retail stores, office buildings, and public facilities.

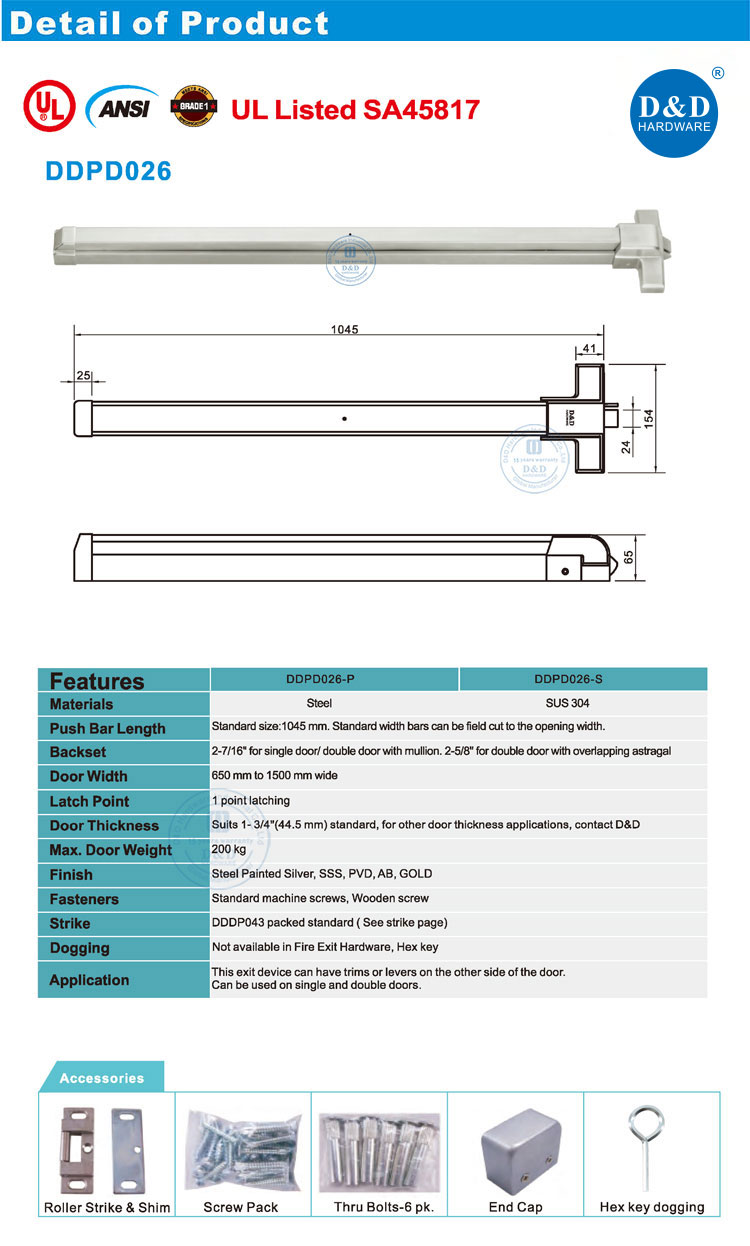

2. Technical Specifications

• Materials:
  • DDPD026-P: Steel
  • DDPD026-S: SUS304 Stainless Steel
• Push Bar Length: Standard 1045mm (field-cuttable to opening width)
• Backset: 2-7/16" for single door/double door with mullion, 2-5/8" for double door with overlapping astragal
• Door Width Compatibility: 650mm to 1500mm wide
• Door Thickness: Suits 1-3/4" (44.5mm) standard; contact D&D for other thicknesses
• Max. Door Weight: 200 kg
• Latch Point: 1-point latching
• Finish Options: Steel Painted Silver, SSS, PVD, AB, GOLD
• Application: Single & double doors (can have trims/levers on the opposite side)

3. Product Images and Videos

4. Product Features & Advantages

• UL Listed & ANSI Compliant: Meets North American safety and accessibility standards for panic exit devices.
• Durable Construction: Steel or SUS304 stainless steel options ensure corrosion resistance and longevity in high-traffic environments.
• 1-Point Latching System: Provides secure door closure while allowing immediate release during emergencies, compatible with Door Lock systems.
• Field-Cuttable Push Bar: Standard length is field-adjustable to match door opening widths, offering installation flexibility.
• Integration with D&D Door Hardware Ecosystem: Works with Door Closers, Stainless Steel Door Stops, and Door Accessories for a complete egress solution.
• Wide Door Compatibility: Accommodates doors up to 1500mm wide, ideal for large retail and commercial applications in North America.

5. Installation Steps

1. Prepare Door & Frame: Ensure door width (650-1500mm) and thickness (1-3/4" standard) match DDPD026 specifications. Gather tools (drill, screwdriver, hex key).
2. Mount Panic Touch Bar Assembly: Install the device onto the door, aligning with Door Hinge and Door Lock positions.
3. Adjust 1-Point Latching Mechanism: Calibrate the latching system to ensure secure closure and proper emergency release.
4. Integrate with Door Lock/Closer: Connect the touch bar to compatible Door Lock and Door Closer components for synchronized operation.
5. Test Operation: Verify one-touch egress functionality, latching security, and compatibility with other door hardware elements.

6. Application Scenarios

The DDPD026 UL ANSI Single Point Locking Panic Touch Bar excels in North American environments requiring compliant egress, including:

In retail stores across the USA and Canada, it ensures shoppers can exit quickly during emergencies while integrating with Door Locks for security. For office buildings, it provides UL/ANSI-compliant egress in corridors, paired with Concealed Hinges for a sleek look. In public schools, its durable construction withstands regular use, matching Stainless Steel Door Stops for longevity—reducing compliance risks and enhancing occupant safety in North American settings.

7. Certifications and Compliance

• UL Listed (SA45817): Complies with North American safety standards for panic exit devices.
• ANSI Compliant: Meets international norms for exit hardware performance and safety in commercial applications.

8. Customization Options

D&D offers customization for the DDPD026 touch bar to meet North American project-specific egress needs:

• Material Customization: Choose between Steel (DDPD026-P) or SUS304 Stainless Steel (DDPD026-S) based on corrosion resistance and aesthetic requirements.
• Finish Customization: Select from Steel Painted Silver, SSS, PVD, AB, or GOLD finishes to match Door Handles or architectural themes in North American markets.

9. Production Process & Quality Control

1. Material Sourcing: Procure high-grade steel or SUS304 stainless steel to ensure durability and compliance with UL/ANSI standards.
2. Precision Manufacturing: Use advanced machining to create the touch bar and latching components for dimensional accuracy and smooth operation.
3. Assembly & Calibration: Integrate the touch bar mechanism, calibrating the 1-point latching system for reliable emergency release and secure closure.
4. Quality Inspection: Each touch bar undergoes functional testing (one-touch egress, latching security) and compliance checks (UL, ANSI), with visual inspection for defects.
5. Packaging: Pack in protective boxes to prevent transit damage, with clear labeling for efficient logistics to North American ports.
