CE mortise lock with test machine

The Euro Profile Mortice Sash Lock is a professionally positioned locking solution designed for architectural and commercial door applications where durability, safety, and regulatory compliance are critical. Constructed from high-quality stainless steel, it delivers reliable mechanical performance while offering enhanced resistance to wear and corrosion, verified by EN 1670 with 240 hours corrosion resistance. Tested to BS EN 12209 / DIN 18251 Grade 3 with 200,000 operating cycles, the lock ensures long-term stability under frequent use. Its EN 1634 fire rating of up to 260 minutes makes it suitable for fire-rated door assemblies, maintaining door integrity and occupant safety during emergencies. Designed for Euro profile cylinders, this mortice sash lock is ideal for use on internal and external doors in commercial buildings, hotels, residential complexes, educational facilities, and public spaces where fire protection, dependable operation, and compliance with European standards are essential.

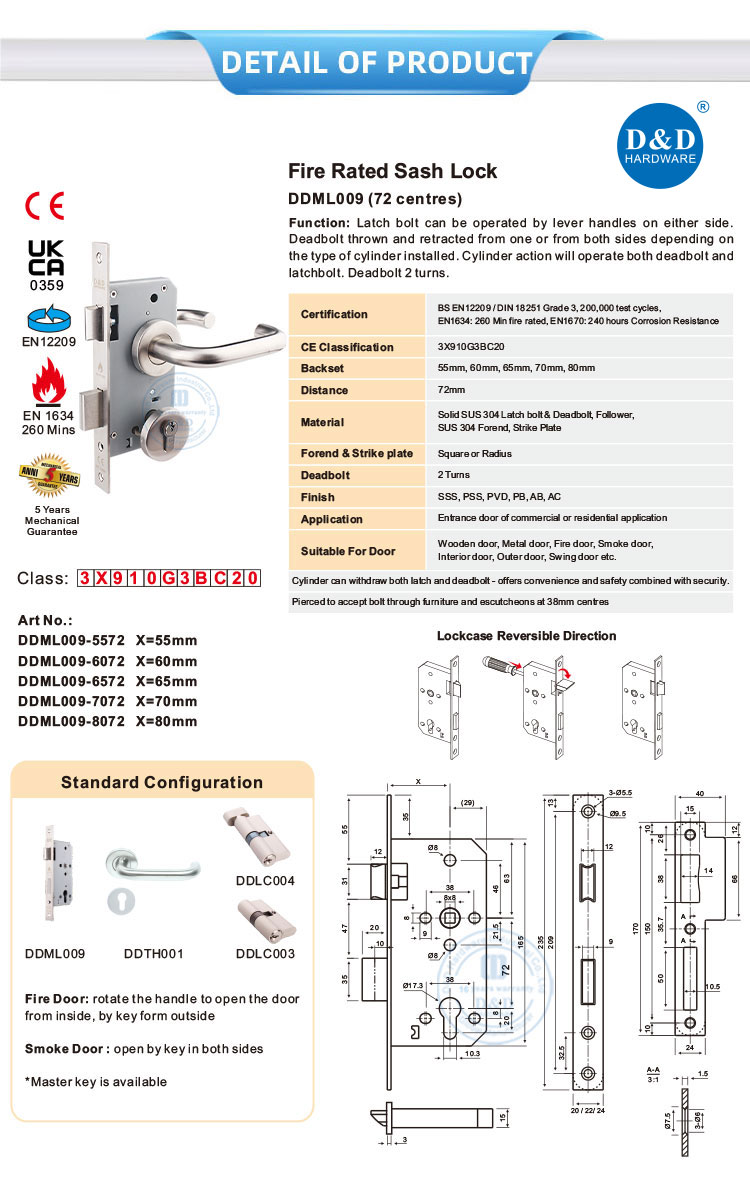

Technical Specifications

Product Images and Videos

Product Features & Advantages

• BS EN12209 Security: This mortise lock is tested and certified to BS EN 12209, delivering a security level suitable for commercial and medium-to-high risk environments. The internal mechanism is reinforced to resist picking, drilling, and forced manipulation, while the 2-turn deadbolt provides deeper engagement into the strike plate compared to standard residential locks. This extended throw significantly improves resistance against kick-in attacks and forced prying, making the lock well-suited for office entrances, retail storefronts, and shared-access buildings where both security and operational reliability are required.
• SUS304 Stainless Steel Durability: All major structural components are manufactured from SUS304 stainless steel, ensuring excellent resistance to corrosion caused by humidity, frequent cleaning, and environmental exposure. The lock has successfully passed 240-hour salt spray testing, demonstrating stable performance without surface rust, binding, or internal degradation. This material choice directly reduces the risk of lock jamming and extends service life, particularly in public buildings where door hardware is cleaned daily using chemical agents.
• Universal Backset Options: To accommodate diverse door designs and regional standards, the lock is available with multiple backset options ranging from 55 mm to 80 mm. This flexibility allows contractors to install the same lock model across different door thicknesses and profiles without structural modification. By eliminating the need for custom machining or adapter plates, installation time is reduced and on-site errors are minimized, improving efficiency in multi-door projects.
• 260-Minute Fire Resistance: Tested to EN 1634 standards, the lock maintains structural integrity and operational function for up to 260 minutes. During a fire event, the deadbolt and latch remain engaged to ensure the door stays closed, preventing the spread of smoke and flames while still allowing controlled egress when paired with appropriate exit hardware. This performance supports compliance with commercial fire safety regulations and is suitable for use on fire-rated doors in public and commercial buildings.

Application Scenarios

• School Administrative Entrances: Administrative areas in schools require controlled access while maintaining compliance with fire safety regulations. The lock’s fire-tested construction and compatibility with panic exit hardware support safe evacuation routes, while its robust mechanical design resists tampering and unauthorized entry. This use case clearly demonstrates suitability for educational facilities where safety, durability, and regulatory compliance are equally important.
• Hotel Lobby and Shared Access Doors: Hotel lobbies and shared access doors must combine fire safety compliance with durable operation under constant use. The 260-minute fire resistance supports fire-rated door assemblies, while compatibility with lever handles and door closers ensures smooth, quiet operation suitable for hospitality environments. For project specifiers, this application highlights how the lock fits into regulated public spaces without disrupting design consistency.
• Retail Storefronts: Retail storefront doors face elevated security risks due to visible merchandise and extended opening hours. The reinforced deadbolt design and anti-drill performance directly address common break-in methods used after business hours. At the same time, corrosion-resistant SUS304 construction prevents performance issues caused by frequent cleaning and exposure to street-level humidity, making this lock a practical choice for shopping centers and standalone retail units.

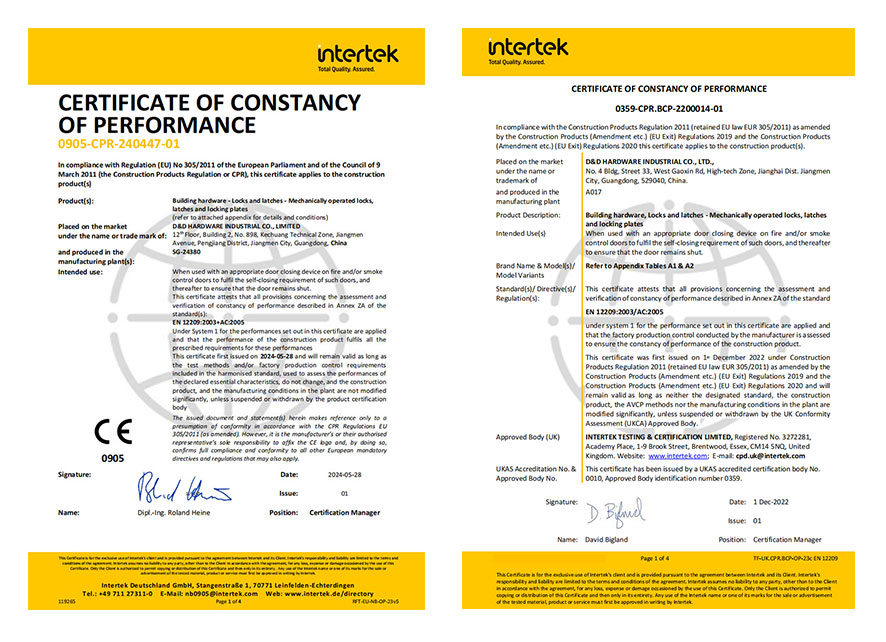

Certifications and Compliance

• BS EN12209/DIN 18251 Grade 3: Tested for 200,000 operating cycles, with verified resistance to picking (10 minutes) and drilling (5 minutes), confirming suitability for commercial applications.
• EN1634 Fire Rating: Certified for 260 minutes fire rated, supporting use in fire-rated door assemblies across EU-regulated projects.
• EN1670 Corrosion Resistance: Achieves 240-hour salt spray performance with no visible corrosion, suitable for humid and coastal environments.
• ISO 9001:2015: Manufactured under a certified quality system to ensure consistent materials, processes, and finished product performance.
• SGS Audited: Produced in an audited facility with a capacity of 200,000 units per month, ensuring supply stability and traceability.

Customization Options

• Size Modifications: Extended backset options (85 mm / 90 mm) and custom lock case lengths are available for non-standard Euro profile doors.
• Material Upgrades: Optional SUS316 stainless steel improves corrosion resistance in coastal environments, while antimicrobial coatings support healthcare and educational applications.
• Finish Customization: Optional thumbturn deadbolt configurations for residential use and pre-drilling for smart lock cylinder integration.
• Functional Enhancements: Thumbturn deadbolt for residential bathrooms; pre-drilled for smart lock cylinders.
• OEM/ODM Services: Support for private labeling, multilingual installation guides, and bundled hardware solutions including locks, door handles, and door closers.

Production Process & Quality Control

1. Material Testing: XRF testing confirms SUS304 chemical composition with approximately 18% chromium and 8% nickel, ensuring genuine corrosion resistance.
2. Precision Machining: Critical components are CNC-machined with tolerances controlled within ±0.005", ensuring consistent compliance with BS EN 12209 performance requirements.
3. Assembly & Calibration: Internal mechanisms are lubricated with aerospace-grade lubricants, and deadbolt movement is calibrated to ensure smooth, reliable two-turn operation throughout the product’s service life.
4. Performance Testing: Each unit undergoes functional testing before shipment, with random samples subjected to fire resistance, anti-intrusion, and salt spray tests.
5. Final Inspection: A 100% final inspection checks surface finish, deadbolt alignment, and certification markings prior to secure packaging and delivery.
