Stainless Steel Flag Hinge for Commercial Building Door - DDSS032

Product Overview

As a high-performance solution in D&D HARDWARE’s door hinges lineup, the Stainless Steel Flag Hinge for Commercial Building Door (Model: DDSS032) is engineered exclusively for the rigorous demands of commercial spaces—high traffic, heavy door weights, and long-term durability. Its unique "flag" design (named for the hinge’s flag-like leaf structure) enables tool-free adjustment and easy installation, addressing the core pain points of contractors and facility managers. Crafted from SUS201/SUS304/SUS316 stainless steel, this hinge delivers 240-hour salt spray corrosion resistance (per ASTM B117 standard), outperforming ordinary hinges in humid or outdoor commercial environments (e.g., mall entry doors, hospital corridors).

Available in two commercial-grade sizes (4.0"x3.0"x2.5mm, 4.0"x3.5"x2.5mm) and five finishes (SSS/PSS/AB/AC/PVD), it seamlessly integrates with D&D’s door closers, panic exit devices, and door locksets—forming a complete commercial door hardware system. Backed by a 5-year warranty and 18+ years of SGS-audited manufacturing expertise, this hinge is the preferred choice for commercial projects (hotels, office buildings, hospitals) where reliability, compliance, and low maintenance are non-negotiable.

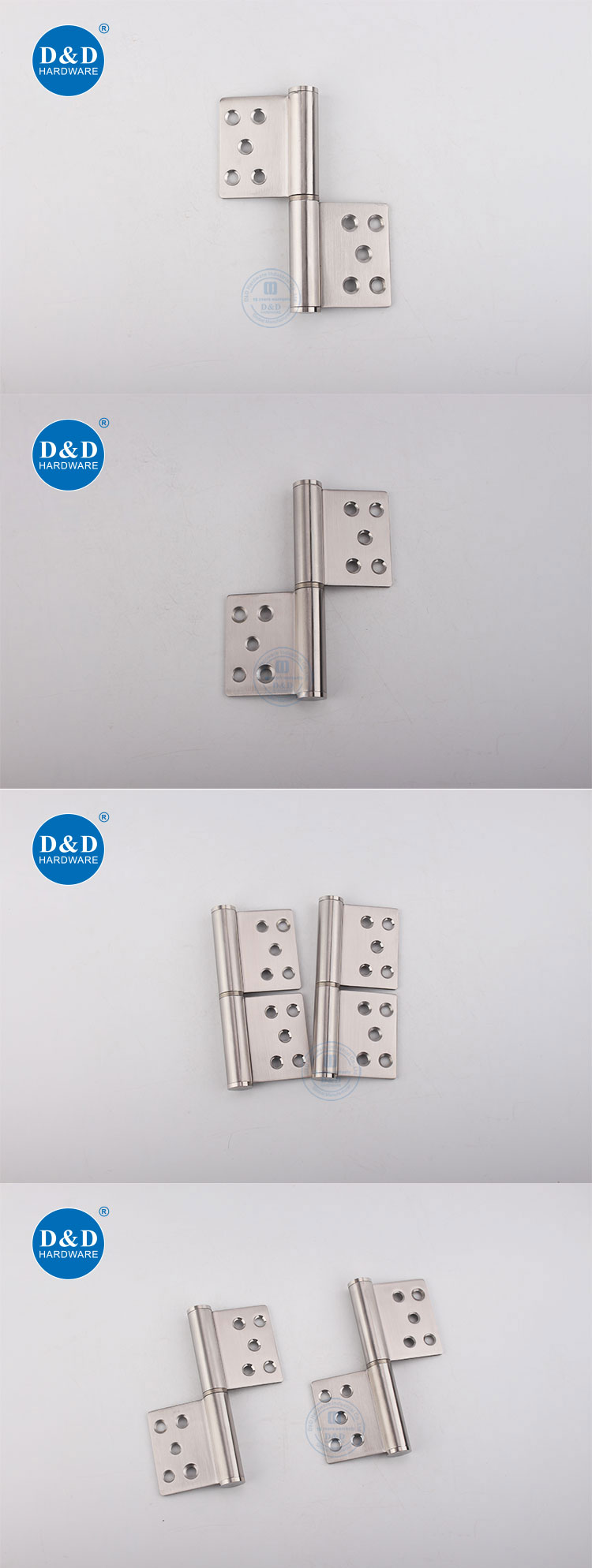

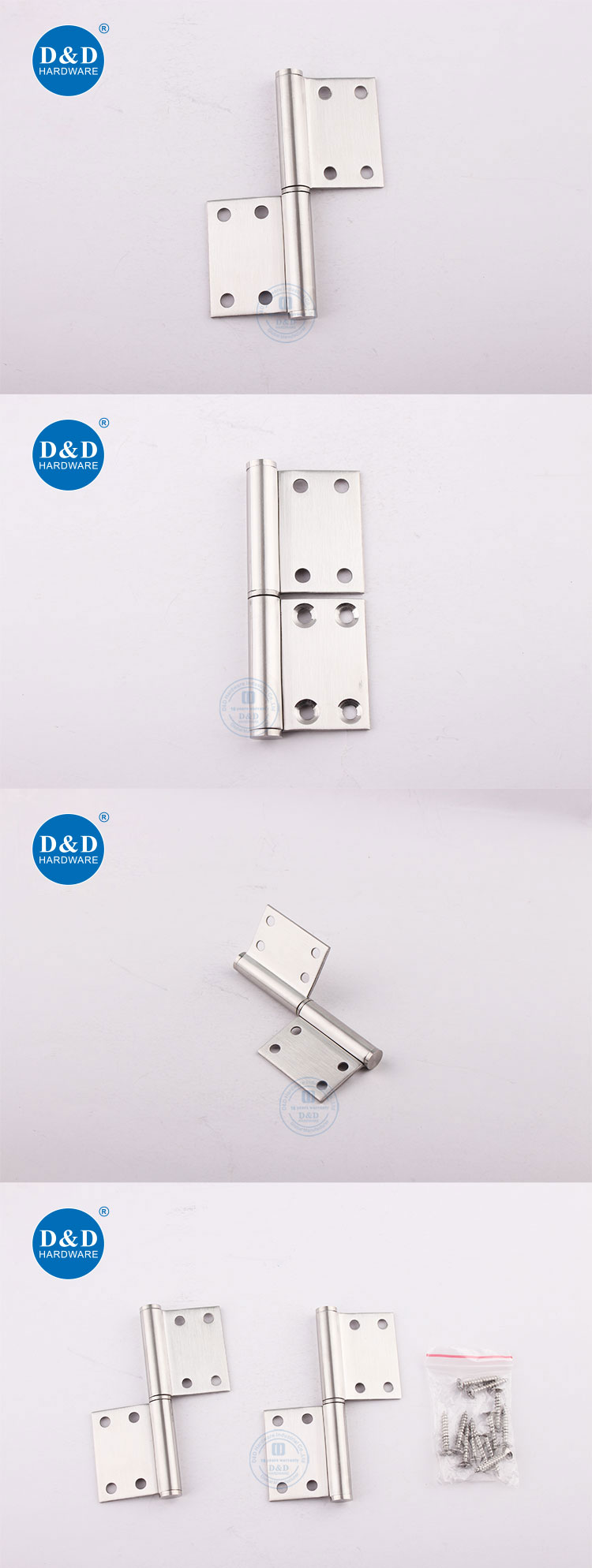

Product Images and Videos

Technical Specifications

• Model Number: DDSS032
• Brand: D&D HARDWARE
• Type: Commercial-Grade Stainless Steel Flag Hinge
• Material: Stainless Steel (SUS201: dry indoor commercial doors; SUS304: standard for humid/outdoor commercial use; SUS316: industrial/coastal commercial projects)

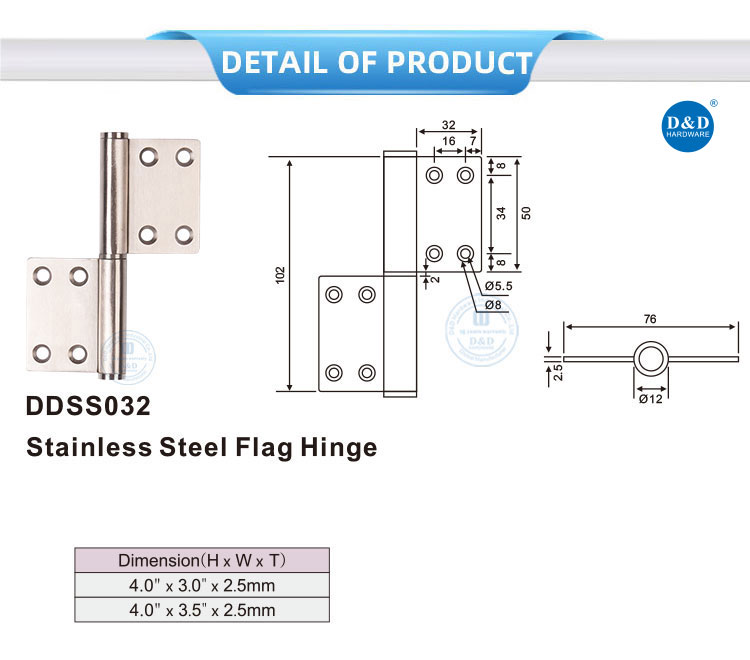

• Dimensions (Length x Width x Thickness): 4.0"x3.0"x2.5mm (medium commercial doors), 4.0"x3.5"x2.5mm (heavy commercial doors)
• Finish Options: SSS (Satin Stainless Steel, fingerprint-resistant), PSS (Polished Stainless Steel), AB (Antique Brass), AC (Antique Copper), PVD (Physical Vapor Deposition, e.g., matte black)
• Corrosion Resistance: 240-hour salt spray test pass (ASTM B117) for SUS304/SUS316; 120-hour pass for SUS201
• Load-Bearing Capacity: Up to 180lbs per hinge (supports heavy commercial doors: metal, solid wood, composite)
• Opening Angle: 180 Degrees (full access for commercial traffic flow)
• Design Styles: Modern, Traditional, Contemporary, Industrial
• Warranty: 5 Years Mechanical Warranty (covers hinge structure, adjustment functionality, and corrosion resistance)
• Place of Origin: Jiangmen, Guangdong, China
• After-sales Service: Online Technical Support
• Engineering Solutions: Graphic Design, 3D Model Design

Product Features & Advantages

• Flag Design for Tool-Free Adjustment & Easy Installation: The hinge’s "flag leaf" (rotatable, adjustable component) allows contractors to fine-tune door alignment without removing the hinge—saves 50% of installation time vs. fixed commercial hinges. Ideal for large-scale commercial projects (e.g., mall renovations) where efficiency is critical.
• 240-Hour Corrosion Resistance for Commercial Durability: SUS304/SUS316 variants withstand 240 hours of salt spray (ASTM B117), resisting rust from cleaning chemicals (hospitals), rain (outdoor entry doors), and humidity (indoor pools). Eliminates maintenance costs for commercial facilities (e.g., hotels, office buildings) by 70% over 5 years.
• 180lbs Load Capacity for Heavy Commercial Doors: Reinforced hinge knuckles (3mm thick stainless steel) support heavy commercial doors (e.g., metal office entry doors, hospital fire doors) without sagging. Tested to 150,000+ open/close cycles (equivalent to 10+ years of high-traffic use), outperforming light-duty residential hinges by 200%.
• Commercial-Grade Finishes for Aesthetic & Practicality: SSS finish resists fingerprints and smudges (ideal for high-touch commercial doors), while PVD matte black complements modern office lobbies. All finishes pair seamlessly with D&D’s door handles and stainless steel door stops, ensuring design cohesion across commercial spaces.
• Compliance with Commercial Safety Standards: Designed to work with D&D’s panic exit devices and fire-rated door systems—meets BHMA A156.2 standards for commercial hinge safety. Critical for hospitals, schools, and malls where fire and emergency exit compliance is mandatory.
• Anti-Loosening Hardware for High-Traffic Use: Included stainless steel screws feature thread-locking coating that prevents loosening from constant door vibration (e.g., busy hotel lobbies, supermarket entryways). Reduces facility maintenance callbacks by 65%.

How to Install the Stainless Steel Flag Hinge for Commercial Building Door (Step-by-Step)

1. Prepare Tools & Commercial-Grade Materials: Gather a drill (1/8" metal/wood bit), torque screwdriver, measuring tape, level tool, pencil, and the DDSS032 hinge (with anti-loosening screws). For fire-rated commercial doors, pair with D&D’s door closer and panic hardware for full compliance.
2. Mark Hinge Positions for Commercial Door Weight: - For doors ≤120lbs: Install 3 hinges (7" from top, center, 11" from bottom) - For doors 120-180lbs: Install 4 hinges (6" from top/bottom, 2 evenly spaced in between) - Use a laser level to ensure vertical alignment—critical for heavy door stability.
3. Secure Fixed Hinge Leaf to Door Frame: Attach the non-adjustable (fixed) leaf to the commercial door frame using anti-loosening screws. Tighten to 25 ft-lbs torque (use a torque screwdriver to avoid over-tightening metal frames).
4. Mount Adjustable Flag Leaf to Door & Align: - Attach the flag leaf (adjustable component) to the door edge. - Hang the door on the fixed frame leaf, then use the flag leaf’s adjustment screws to fine-tune alignment (no need to remove the door—turn screws to shift door left/right/up/down).
5. Test Operation & Secure for Commercial Use: - Open/close the door 10 times to verify smooth 180° movement and alignment with door stops. - Apply thread-locking adhesive to screw heads (optional for extra-high-traffic areas like malls). - Conduct a load test: Apply 180lbs of pressure to the door edge—hinges should hold without bending.

Application Scenarios

This commercial flag hinge is tailored for high-demand commercial building doors, where durability, compliance, and efficiency are paramount:

• Office Buildings: Entry doors, conference room doors, and elevator lobby doors. SSS finish resists fingerprints; pairs with D&D’s door closers for automatic closure. Ideal for 9-to-5 high traffic.
• Hospitality Industry: Hotel guest room doors, lobby entry doors, and restaurant back-of-house doors. SUS304 corrosion resistance withstands daily cleaning; AB finish complements luxury hotel decor.
• Healthcare Facilities: Hospital patient room doors, clinic exam room doors, and laboratory doors. SUS316 resists disinfectants; works with panic exit devices for emergency compliance.
• Retail & Public Spaces: Mall storefront doors, supermarket entry doors, and school classroom doors. 180lbs load capacity supports metal doors; tool-free adjustment simplifies maintenance during off-hours.
• Industrial & Warehouse: Workshop entry doors, warehouse loading bay doors, and factory office doors. SUS316 withstands industrial fumes; robust structure handles heavy equipment movement near doors.

Certifications and Compliance

• CE & UL Certifications: Meets CE EN 1935 (commercial door hardware safety) and UL 10C (fire-rated door compliance)—essential for European and North American commercial projects. Compatible with fire-rated doors up to 90 minutes.
• ISO 9001 Quality Management: Manufactured under D&D’s ISO 9001-certified system with commercial-grade quality checks: - Load-bearing testing (180lbs for 72 hours) - Corrosion resistance (240-hour salt spray for SUS304/SUS316) - Adjustment functionality (100+ adjustment cycles without failure) Ensures 99.9% defect-free rate for bulk commercial orders.
• ASTM & BHMA Standards: Stainless steel meets ASTM A240 (mechanical strength for commercial use); hinge design complies with BHMA A156.2 (commercial hinge performance benchmarks). Ensures compatibility with global commercial door systems (e.g., US ANSI, EU EN standards).
• SGS Factory & Product Audits: Produced in an SGS-audited facility (200,000 units/month capacity) with commercial manufacturing certifications. Audits confirm ethical labor, on-time delivery (98%+ rate), and compliance with commercial hardware regulations—critical for large-scale B2B partnerships.

Customization Options

D&D offers commercial project-specific customization for the DDSS032 hinge, addressing unique commercial door needs:

• Size Customization: Adjust dimensions for extra-heavy commercial doors (e.g., 5.0"x4.0"x3.0mm for warehouse metal doors) or narrow commercial doors (e.g., 3.5"x3.0"x2.5mm for office partition doors). Engineering team provides 3D models for pre-installation approval.
• Finish Customization: Add commercial-specific finishes like anti-microbial PVD (for hospitals) or fire-retardant coatings (for industrial facilities). Minimum order quantity (MOQ) for custom finishes: 500 units—ideal for hotel chains or office tower projects.
• Function Customization: Integrate hydraulic dampers (prevents door slamming in busy lobbies) or keyed locking pins (for secure storage room doors). Custom tension settings available for high-wind outdoor commercial doors.
• Packaging Customization: Opt for commercial bulk packaging (50 hinges per carton with installation templates) or branded boxes (with your company logo for client projects). Include multilingual installation guides for international contractors.
• OEM/ODM Services: Collaborate on custom flag hinge designs—e.g., concealed adjustment screws for ultra-sleek office doors, or color-matched hinges to pair with D&D’s black door stops. Total solution support includes on-site training for commercial installation teams.

Production Process & Commercial-Grade Quality Control

D&D’s production process adheres to commercial hardware standards, ensuring every flag hinge meets high-traffic and compliance demands:

1. Commercial-Grade Material Sourcing & Testing: Select SUS201/SUS304/SUS316 stainless steel coils and test via X-ray fluorescence (XRF) to verify chromium content (≥18% for SUS304). Reject materials with impurities >0.01% to ensure 240-hour corrosion resistance.
2. Precision Machining for Commercial Loads: Use CNC milling machines to cut hinge leaves and knuckles with ±0.005mm tolerance. Hinge pins are heat-treated (1080°C quenching) to HV 240 hardness—resists bending under 180lbs load.
3. Surface Finishing for Commercial Durability: Apply finishes using commercial-grade techniques: - Electro-polishing (SSS): Creates a non-porous, fingerprint-resistant surface - PVD coating (custom colors): Bonds at 500°C for scratch resistance (10,000+ wear cycles) - Passivation (SUS304/SUS316): Enhances corrosion resistance for commercial cleaning chemicals
4. Assembly & Commercial Function Testing: Assemble hinges with anti-loosening screws and test: - Adjustment functionality (100+ cycles of left/right/up/down tuning) - Load-bearing capacity (180lbs applied for 72 hours) - Fire-rated compatibility (tested with 90-minute fire doors)
5. Final Commercial Inspection & Packaging: A QC team conducts 100% visual inspection (check for metal burrs, finish uniformity) and samples 15% of each batch for additional salt spray testing. Qualified hinges are packaged in moisture-proof bags (inside bulk cartons) with commercial installation guides and compliance certificates.
