Product details

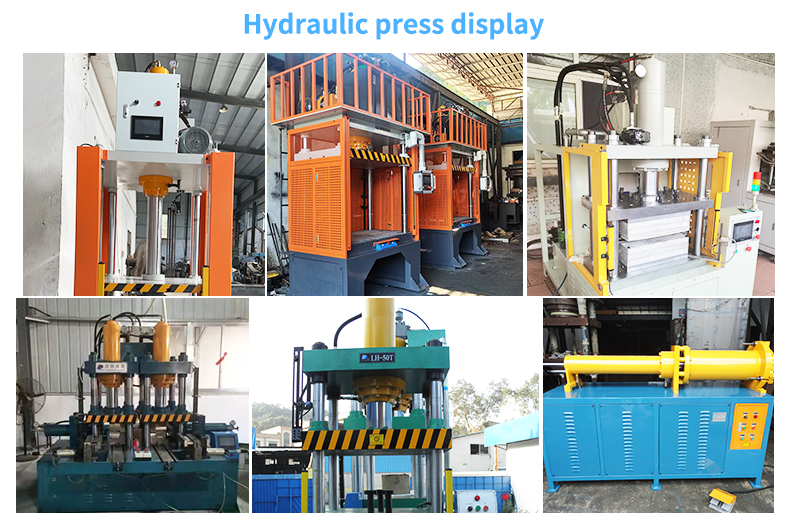

Hydraulic Trimming Press Features:

1. Adopt built-in fast cylinder, fast idle stroke speed and high production efficiency.

2. Adopt imported hydraulic, electrical components and seals, long service life.

3. In addition, the workbench blanking trough and blowing device can be designed according to customer requirements to improve production efficiency.

4. Photoelectric safety protector, force sensor and displacement sensor can also be optional.

Hydraulic Trimming Press Scope of application:

1. Riveting, stamping, forming, shallow drawing, shaping, and pressure assembly of metal or non-metal parts.

2. Pressing of glasses, locks and hardware parts, electronic connectors, electrical parts, motor rotors, stator press-fitting, etc.

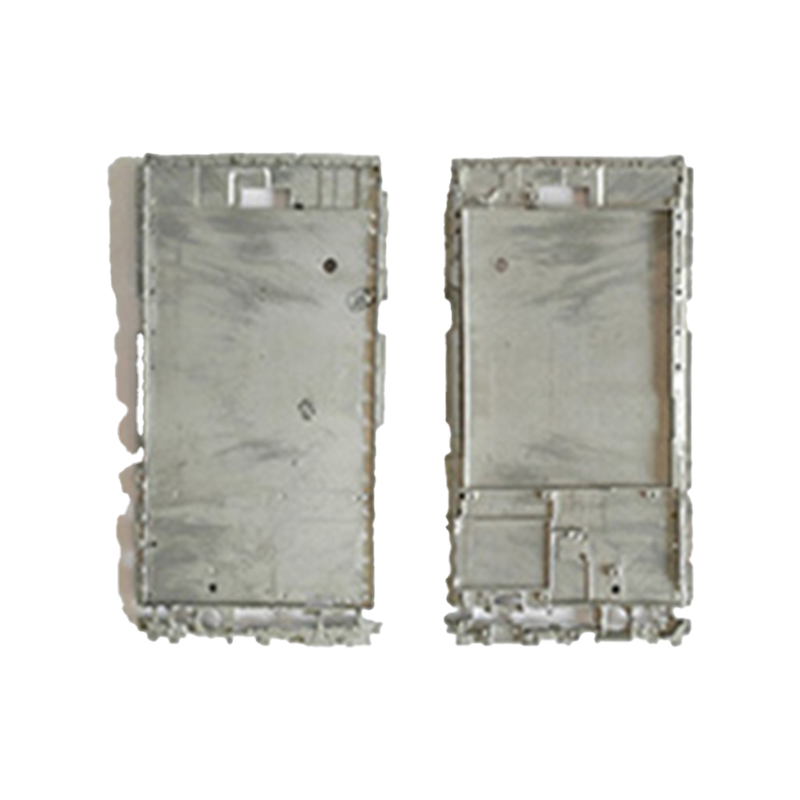

3. It is especially suitable for the burr punching and shaping of aluminum, magnesium, and lead alloy die-casting products, and the pressing of plastic rubber and powder products.

4. The most widely used parts in the automobile and motorcycle accessories industry.

项目Project		单位	规格Specifications
		Units	LHF-10	LHF-15	LHF-20	LHF-25	LHF-30	LHF-40	LHF-50	LHF-60	LHF-80
主油缸压力		Kn	100	150	200	250	300	400	500	600	800
Main cylinder capacity
系统压力		Mpa	13	13	18	21	21	21	21	21	21
System pressure
最大行程		mm	250	300	300	300	300	300	300	300	350
Main cylinder stroke
开口高度		mm	400	450	450	500	500	500	550	550	550
Open height
工作台有效尺寸	左右（柱内）L-R	mm	450	450	500	500	550	550	600	600	650
Working table size available	前后（边缘）F-B		400	400	450	450	500	500	550	550	600
固定工作台距地面高度		mm	800	800	800	800	800	800	800	850	850
Height of fixed working table
主缸速度	快进 Fast forward	mm/s	240	230	230	220	210	200	200	190	190
	工进 working		25	25	25	23	21	20	20	20	20
	回程 Fast backward		230	220	220	210	200	190	190	180	180
电机功率Main motor power		Kw	2.2	3.75	3.75	3.75	3.75	5.5	5.5	5.5	5.5
机器重量（参考）Weight (Approx)		Kg	700	800	900	1120	1300	2000	2700	2900	3100

Our factory mainly produces Gravity Casting Machine, Servo Press, and Liquid Die Forging Machin. Our products have been exported to over 50 countries and regions. We sell throughout European countries, Australia, New Zealand, South Asia, and other regions.

You can send an email or leave a message explaining your needs, and we will recommend a suitable machine for you based on the provided model and configuration requirements.
