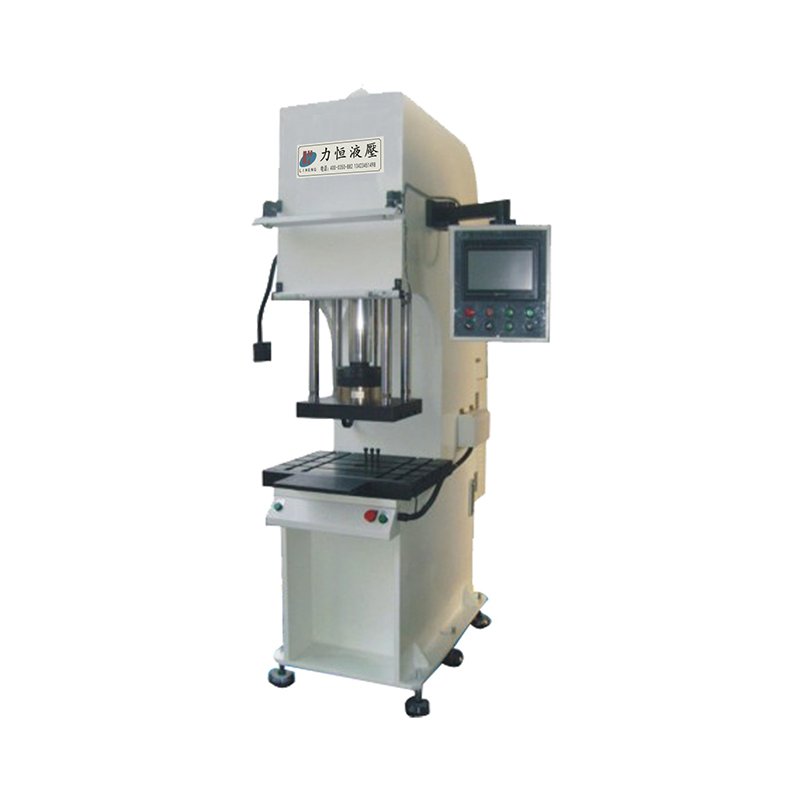

C-type hydraulic press desktop hydraulic press detailed introduction:
Equipment principle: The hydraulic oil pump is driven by the rotation of the hydraulic motor. The power mechanism consists of an oil tank, a high-pressure pump, a low-pressure control system, an electric motor and various pressure valves. The position and pressure of the press-fitting product are controlled by a manual hydraulic valve:
Hydraulic Hot Pressing Press Main uses of the equipment:
Imprinting, forming, shallow drawing, shaping and pressure assembly of metal or non-metal parts; pressing of glasses, locks and hardware parts, electronic connectors, electrical parts, motor rotors, stator press-fitting, bearings, motors, motors, sleeves, bushings, bearing guide sleeves, relays, piston press-fitting, etc.
C-type hydraulic press desktop hydraulic press product features:
1. This series of hydraulic presses uses 1-15MPA liquid pressure as the power source, and is externally connected to a three-phase AC380V 50HZ or three-phase AC220 60HZ AC power supply. The total power consumption does not exceed 3.7KW.
2. This series of equipment uses liquid as a medium to transfer energy, with flexible control, easy automation, and high operating speed The speed is uniform and stable. Compared with pneumatic equipment, the speed and pressure are adjustable and controllable, the output adjustment range is large, the independence is strong, the performance is more stable, and the pressing quality of the product can be greatly improved.
3. The solid open structure with integral welding can keep the machine body with sufficient rigidity and convenient operation space.
4. The operation mode of this equipment is to manually control the manual hydraulic valve to press and lift the product, which can effectively control the pressing position and pressing force of the pressed product according to manual control;
5. The pressing stroke of this series of presses is generally controlled by a timer, a pressure switch, a position sensor, or the customerx27s own mold
6. The lifting height of the pressing spindle can be adjusted within any stroke range through a timer or a position sensor.
7. The descending and lifting speed of the spindle is 90MM/S for 3tf, 75MM/S for 5tf, and 68MM/S for 10tf.
8. The pressure, stroke, holding time, and closing height can be adjusted by the customer for easy operation;
9. The hydraulic system is built into the frame, with a neat, light and stable appearance. 10. The noise of the equipment does not exceed 80 decibels when it is in standby mode.
11. It has an automatic counting function and can also be equipped with a force measuring display. It can be customized according to customer requirements.
12. The output range of this series of hydraulic machinery is 3-50. Optional.
Our factory mainly produces Gravity Casting Machine, Servo Press, and Liquid Die Forging Machin. Our products have been exported to over 50 countries and regions. We sell throughout European countries, Australia, New Zealand, South Asia, and other regions.
Special reminder: Different customers may customize colors, configurations, models, appearances, etc. according to their own needs. We will provide quotes based on customer requirements, so the quotes may vary. Please understand.
