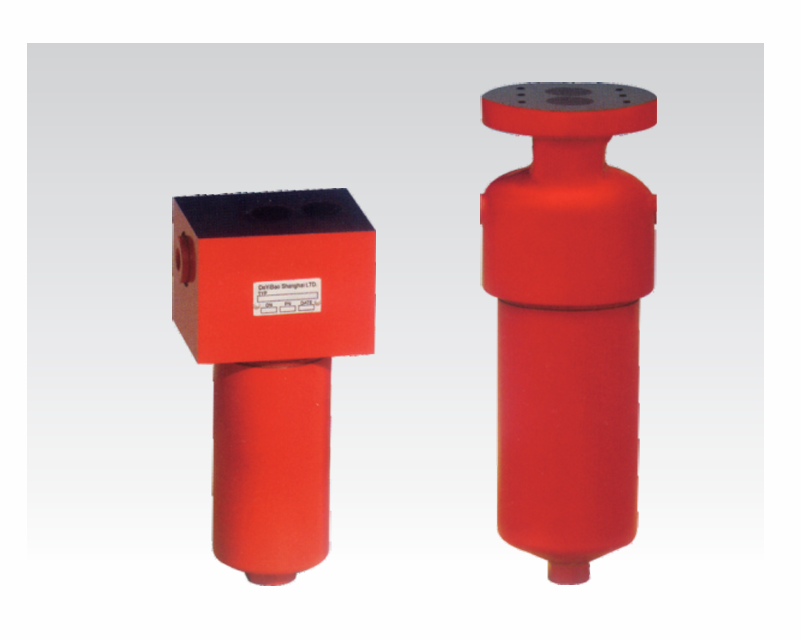

Pressure Filter SDDFP V 60 QB 5 D 1.X

Change-over Pressure Filter with Block Mounting

Change-over Pressure Filter with Block Mounting is advanced filtration solutions designed for industrial and commercial applications where reliable and efficient fluid purification is essential. These units are engineered to handle high-pressure environments while ensuring minimal downtime and maximum performance.

1. Technical Specification

1.1 Filter Housing

Construction

Chang-over pressure filters with block mounting are designed in accordance with international regulation, which consist of a filter housing with a screw-on cover plate

Standard equipment

*without clogging indicator

*two-piece bowl for size 990 and above

*drain plug with pressure relief (size 330 and above)

1.2 Filter Element

Shengda are sure that our filters are of reliable performance so that they can protect hydraulic parts from polluting and machines from abrasion.

*Filters are validated according to the following standards, DINISO 2941; DINISO 2942; DINISO 2943; ISO 3724; ISO 3968; ISO 16889.

*Filter elements are available with the following pressure stability values,

BN/HC:20bar  W/HC:20bar  V:210bar  BH/HC:210bar

1.3 Seals

NBR Or FPM

1.4 Special models and accessories

-Bypass valve

1.5 Spare parts

-See Spare part and maintenance list

1.6 Compatibility with hydraulic fluids ISO2943

-Hydraulic oil H to HLPD DIN 51524-Lubrication oils DIN 51517, APJ, ACEA, DIN 51515, ISO6743

-Compressor oil DIN 51506-Biodegradable operating fluids DMA24568, HETG, HEES, HEPG

-Non-flame operating fluids HFA, HFB, HFC, and HFD

2.General Mounting

As pressure filter for manifold block mounting

Temperature range: -10℃~to+100℃

Pressure setting of clogging indicator: ΔP=5bar-10%

Bypass cracking pressure: ΔPa=6bar+10%

4. Application

Chang-over pressure filter can be used with a wide range of fluids, including mineral oils, lubrication oils, non-flam fluids, synthetic fluids, and rapidly biodegradable fluids. It is the ideal choice for various industrial applications where reliable filtration is crucial to maintaining system integrity and performance.
