Packing shield
5 month ago
**Compliance Standard**
Meets GA 422-2008 (China Ministry of Public Security Standard for Riot Shields), passing 12 tests including impact resistance, puncture resistance, and high-temperature endurance.

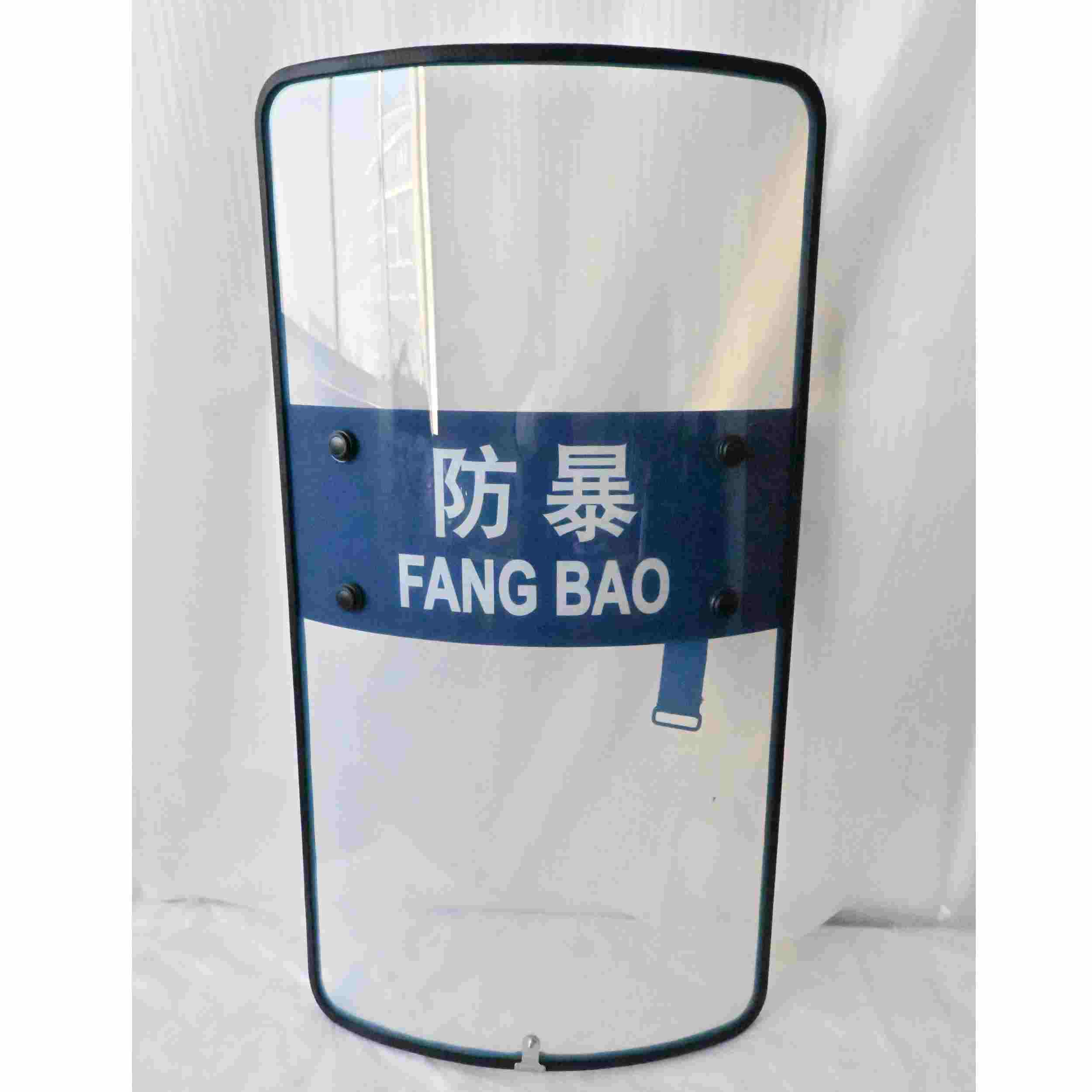

**Product Overview**
Manufactured with military-grade polycarbonate (PC) via heated press process, designed for riot control, counter-terrorism, and public security operations. Combines ultra-high impact resistance (>98J) with 85% light transmittance, achieving both protection and situational awareness. 35% lighter than traditional materials.
**Key Advantages**
✅ **Military-Grade Protection**
- **Impact Resistance**: Withstands 50mm steel ball impact at 5.5m/s (verified per GA 422-2008 Section 5.5.2)
- **Puncture Resistance**: Energy absorption >120J (exceeds standard by 20%)
- **Chemical Resistance**: Passes 72h salt spray test, resists acid/alkali splashes
✅ **Ergonomic Design**

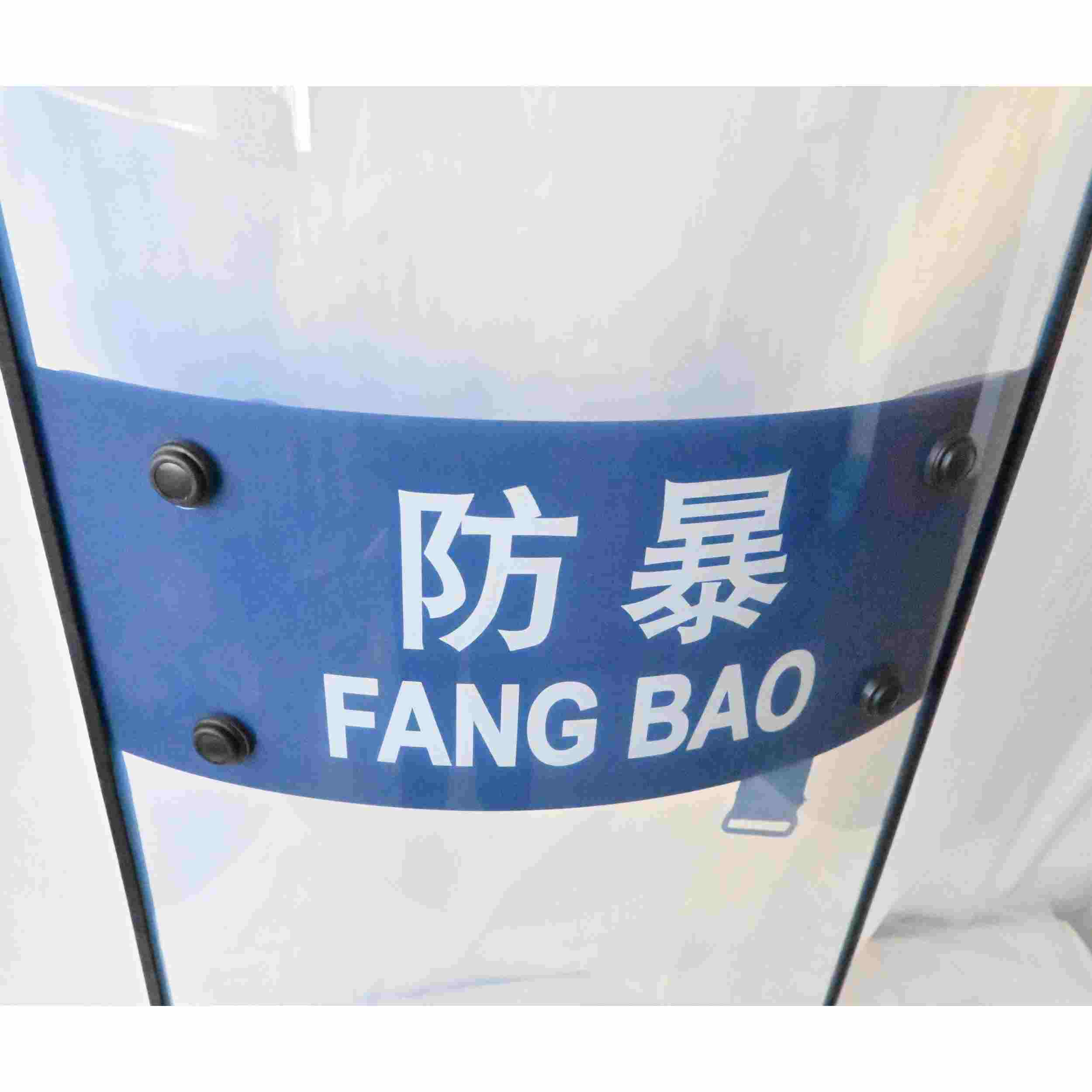

- **Visual Zone**: 8mm PC panel with ≥92% transmittance (no distortion)
- **Grip System**: Anti-slip rubber handle + adjustable wrist strap (single/dual-hand use)

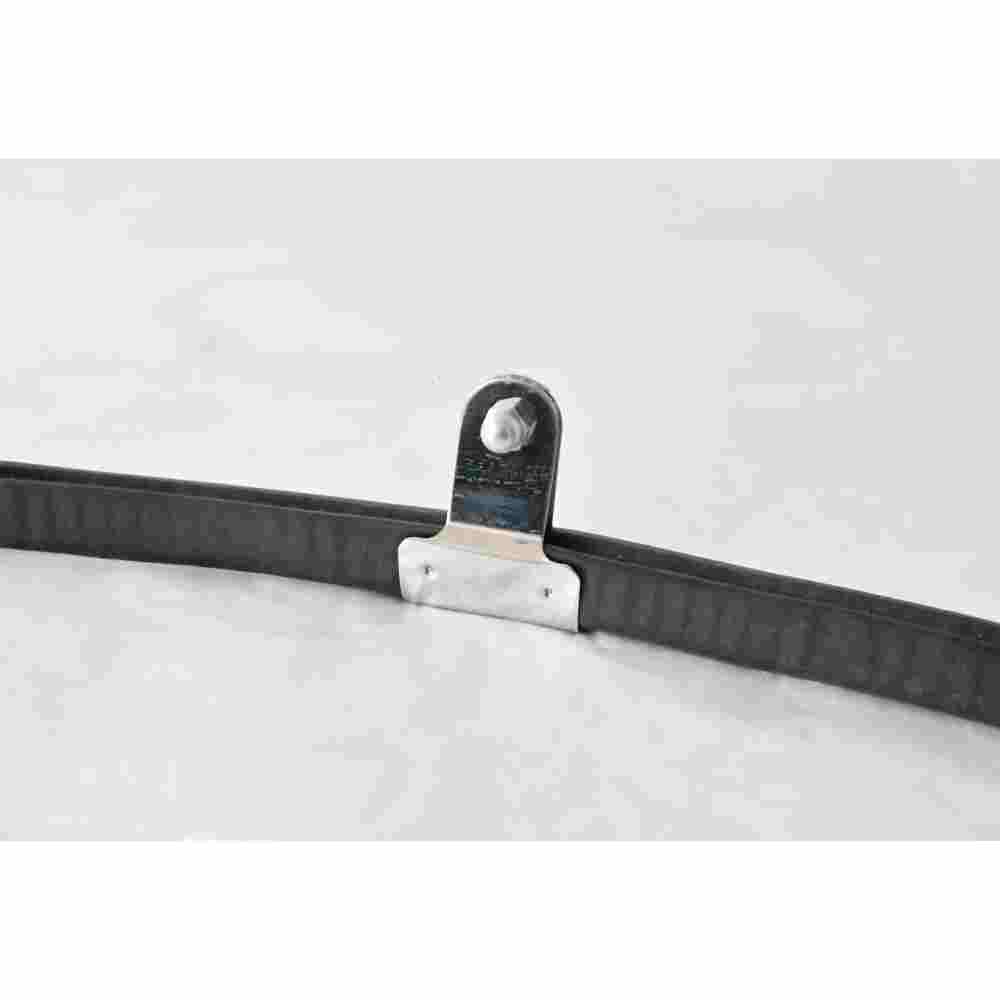

- **Edge Protection**: TPU buffer layer prevents fragment splintering
✅ **Lightweight Portability**
- Total weight ≤3.8kg (standard limit: 4.5kg), reduces operator fatigue
- Foldable shoulder rest for rapid posture switching
|
Technical Specifications |
|
|
Parameter |
Value |
|
Material |
Polycarbonate (PC) |
|
Thickness |
3mm/4mm/5mm±0.2mm (impact zones reinforced to 6mm) |
|
Dimensions |
900mm×500mm (GA 422-2008 compliant,customizable) |
|
Impact Energy |
≥147J |
|
Light Transmittance |
85%±2% (haze <3%) |
|
Operating Temp. |
-30℃~+55℃ (low-temperature brittleness resistance) |
|
Weight |
3.12kg (with accessories) |
**Applications**
- Police riot control & counter-terrorism
- Large-scale event security & crowd management
- High-risk facilities (prisons, banks, etc.)
**Certifications**
- MPS (Ministry of Public Security) Test Report
- ISO 9001:2015 Quality Management System
- REACH Compliance (no heavy metals/phthalate migration)
**Packaging & Shipping**
- Individual EPE foam packaging with cleaning cloth & manual
- Container shipping compatible (stacking load ≥800kg)
