Sintered Metal Mesh Support Grid

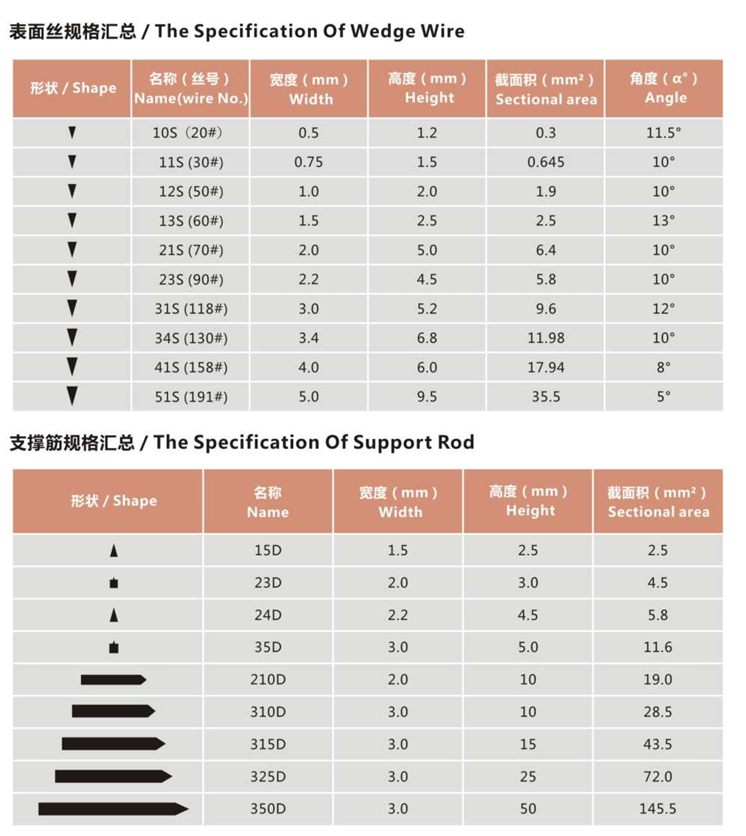

The stainless steel support grid  is a kind of paltelike Johnson screen. This pertrochemical support grid is made of several Johnson screen sieve plate. It is made of stainless steel. This kind of stainless steel support grid is composed of support rods and V-shape wire roll welding on the special weld facility.

2. Parameter and Characteristic

2.1 Basic Data

Packaging: Export packing

Brand Name: Shengda

Place of Origin: Xinxiang city, Henan province, China (Mainland)

2.2 Characteristic

Due to the good mechanical strength, Johnson support grid is effectively prevent its own damage and tear in contact with the filler (quartz sand or porcelain ball, etc.) and catalyst ensuring the safe and smooth operation of the reactor in a long period. Therefore, it has gradually replaced the traditional stainless steel woven mesh and perforated plate tray.

3.Company Profile

3.1 Company Introduction

Xinxiang Shengda Filtration Technique Co., Ltd, is engaged in designing and manufacturing filtration products since establishment in 1998. Many professional engineers, experts devote to filtration & purification research and applications to offer technical support for the product designing and manufacturing. We has advanced manufacturing equipments, sophisticated production technology, sound quality assurance system.

3.2 Product Application

MTBE unit, catalytic cracking, but also suitable for filling specifications below 3 mmworkingconditions.

3.3 Company Advantage

• We have many certificates about the design and manufacture of pressure vessel.

• The type, supply quantity and application field of our product are far ahead of other domestic manufacturers. We have the most complete product chain: metal sintered filter material-filter element-filter container-set of equipment--laboratory-filter cleaning and regeneration. This chain ensures that we can produce high quality product with relatively low cost.
• We have cooperated with many companies in the world such as SINOPEC,SEI, CNOOC,SABIC., BASF, BP p.l.c ., Petroleum Authority of Thailand, PetroKazakhstan, etc
• We have advanced filter element testing equipment such as filtration and purification engineering technology research center, filtering and separation technology joint laboratory, gas turbine air filter EN779 test room, etc.
• The company has set up 21 offices in China, from project follow-up, equipment delivery, spare parts replacement, etc. to provide meticulous and considerate services to the owners. In terms of international market, the company has set up an office in Dubai, which radiates the entire Middle East market, while the distribution and sales channels of North America and Central Asia are steadily advancing.
•

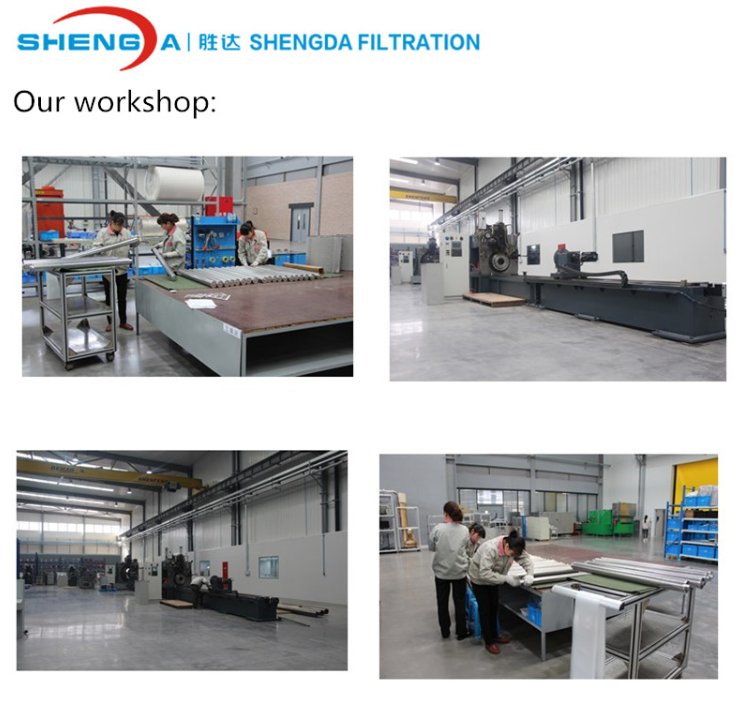

• 3.4 Introduction of Our Johnson Screen Workshop

  We have lots of resistance welding wire winding machines to produce filter element with small caliber (<100mm)and bigger caliber(100mm-1600mm). We have advanced equipment to produce our filter and filter element. Our annual production capacity of small caliber (diameter from 25mm to 100mm) filter element is more than 10000 pieces. The annual production capacity of water filter pipe used in water supply and geothermal projects is more than 10000 meters. The annual production capacity of Johnson screen support grid >is more than 100 sets.
