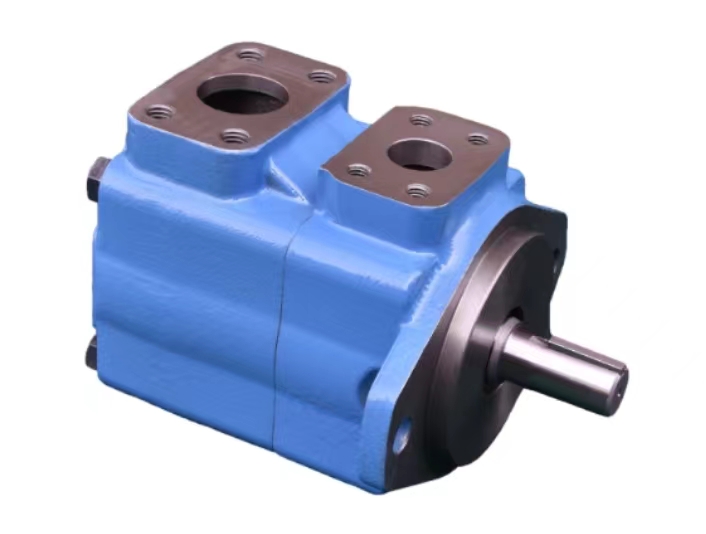

25V14A1A VANE PUMP

5 month ago

3 0 

3 year

Product details

The 25V14A1A is a specific model of hydraulic vane pumps designed for use in industrial settings. These pumps consist of various components including the rotor, cam ring, 12 vanes with internal vanes, flex plate, and pressure plate. The 25V14A1A hydraulic vane pumps are operated with high rotation speeds, high pressure and low noise.

SPECIFICATOINS:

1. Displacement: 14gpm( 45cm3/rev or 2.78 in3/rev)

2.Port Connections:SAE 4-bolt flange

3. Mounting: Flange mounting or Foot mounting

4, Shafts: 1# straight keyed , 86# HD straight keyed and 11# spline

5. Outlet Positions: opposite inlet port( viewed from the cover end of the pump)

6. Rotation: L-Left hand , R-right hand.

7. Maximum pressure @ 1800r/min:172 bar(2500psi)

FEATURES:

1. Easy for installation

2. Low noise level.

3. High effeciency

4. Good serviceability

5. Low amplitude flow pulsations

APPLICATIONS:

1. Presses

2. Molding injection machines

3. Material handling machines

4. Metal processing machines

The hydraulic pumps known as 35V38A1A are designed with a rotor, cam ring, and a cartridge kit consisting of 12 vanes, intra-vane, flex plate, and pressure plate. These pumps are highly favored by engineers who create hydraulic systems for industrial use due to their ability to handle high pressure, operate quietly, and achieve high rotation speeds.

SPECIFICATOINS:

1. Displacement: 38gpm( 121cm3/rev or 7.373in3/rev)

2 . Rotation: L-Left hand , R-right hand

3. Outlet Positions: opposite inlet port( viewed from the cover end of the pump)

4, Shafts: 1# straight keyed , 86# HD straight keyed and 11# spline

5. Mounting: Flange mounting or Foot mounting

6. Port Connections:SAE 4-bolt flange

7. Maximum pressure @ 1800r/min:172 bar(2500psi)

FEATURES:

1. Low noise level.

2. Low amplitude flow pulsations

3. Good serviceability

4. High effeciency

5. Easy for installation

APPLICATIONS:

1. Shoe making machines

2. Molding injection machines

3. Material handling machines

4. Metal processing machines

5. Presses
