Product details

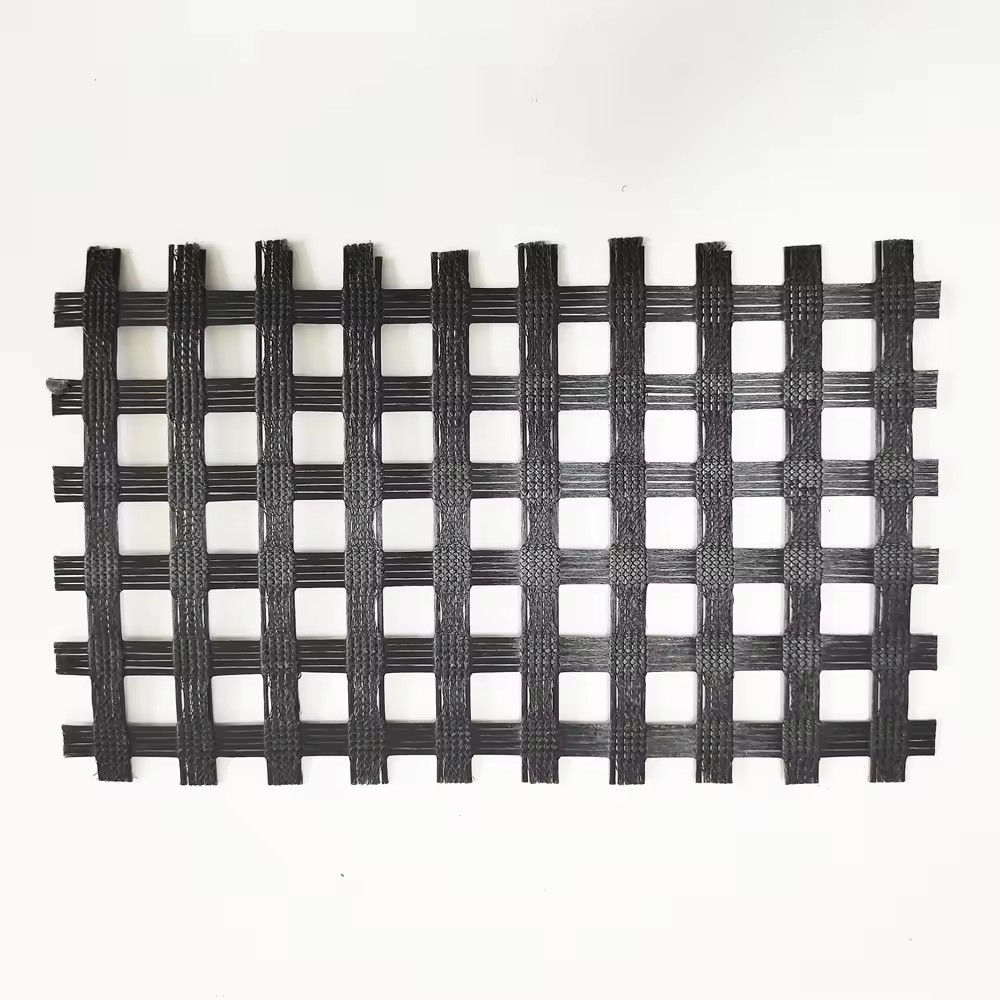

Glass Grid for Roads Asphalt Reinforcement

The product is made of non-alkali glass fiber through the international advanced warp knitting process of reticular substrate, through the surface coating treatment and made of semi-rigid products.

Product Feature

Asphalt Reinforcement Fiberglass Geogrid is geosynthetic material used to reinforce soils and similar materials. Geogrids are commonly used to reinforce retaining walls, as well as subbases or subsoils below roads or structures. Soils pull apart under tension. Compared to soil, geogrids are strong in tension. This fact allows them to transfer forces to a larger area of soil than would otherwise be the case.

Product Function

1. It reinforce old asphalt concrete road surface and asphalt layer, and prevents damage;

2. It is used for rebuilding cement concrete road surface into composite road surface and restraining reflection caused by block contraction.

3. It is used in road expansion and improvment project and crack caused by old and new combination position and uneven sedimentation;

4. It is used in soft soil base reinforcement treatment ,is favorable for soft soil water separation and concretion,restrains sedimentation effectivly,distributes stress uniformly and improve overall strength of road base;

5. It is sued for preventing contraction crack caused by new road semi-rigid base layer,and reinforces and prevents road surface crack caused by foundation crack reflection.

Specification

Performance/Specification		GG25-25	GG30-30	GG40-40	GG50-50	GG80-80	GG100-100	GG120-120
Intensity (KN/m)	Longitudinal	≥25	≥30	≥40	≥50	≥80	≥100	≥120
	Horizontal	≥25	≥30	≥40	≥50	≥80	≥100	≥120
Break elongation ratio (%)	Longitudinal	≤3	≤3	≤3	≤3	≤3	≤3	≤3
	Horizontal	≤3	≤3	≤3	≤3	≤3	≤3	≤3
Mesh size (mm×mm)		12~50	12~50	12~50	12~50	12~50	12~50	12~50
Breadth (m)		1~6	1~6	1~6	1~6	1~6	1~6	1~6

Our Main Products:

Fiberglass Geogrid,Polyester Geogrid,Nonwoven Geotextile,PP Biaxial Geogrid,Fiberglass Geogrid,Polyester Geogrid,Asphalt Reinforcement Geocomposite,Woven Geotextile,HDPE Geocell,HDPE Geonet,Drianage Geocomposites,Fiberglass Mesh,Spunbond Nonwoven Fabric,etc
