Product details

AIR Linear Power Supply is an efficient compact led driver equipped with a 4-position potentiometer for flexible current adjustment, with an output voltage range of 24–42V. Designed as a reliable Constant Voltage power solution, it delivers outstanding efficiency and superior cost-effectiveness. The product boasts high-efficiency performance: the 25W model reaches up to 91% efficiency, while both 32W and 42W versions achieve up to 92%. With its excellent performance and compact structure, it is well-suited for various indoor and outdoor luminaires, and can be flexibly matched with the compact round Led Driver series for diverse lighting applications.

1.Product feature

Current ripple: ±5%

Protection: open circuit / short circuit / overload / class II

Start time:≤0.5S (230VAC，full load)

Ambient Temp: -20~35℃

Storage Temp: -25~85℃

5 years warranty

Certificates: ENEC/CE/SAA/CB

Application: Track light

Size: 158 x 31x 45mm (L*W*H)

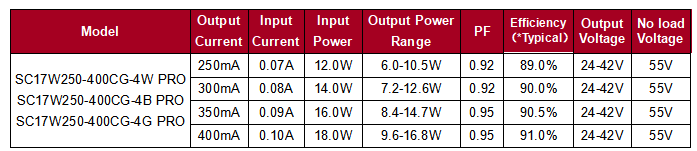

2.Product parameter list

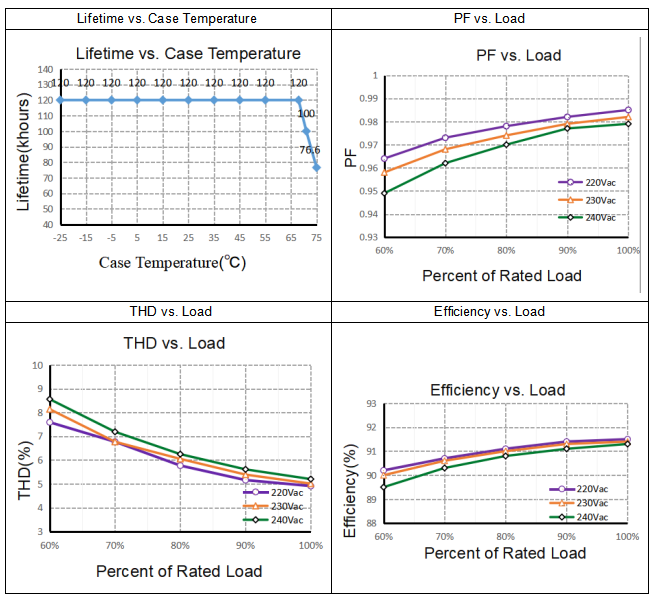

3.Electrical values

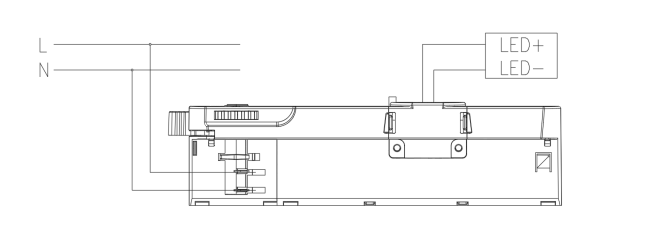

4.Wiring Diagram
