YZPST-QL60A

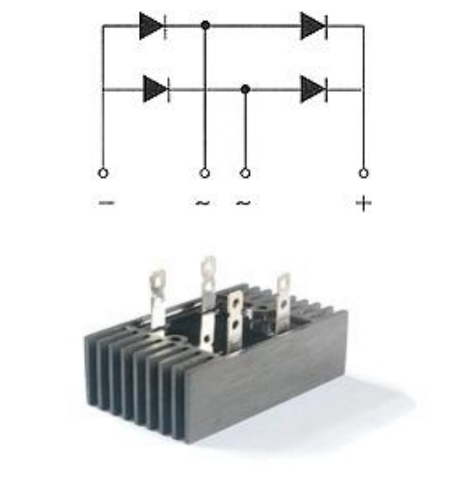

Single Phase 60 AMPS.

Silicon Bridge Rectifiers

Features

Ideal for printed circuit board

Reliable low cost construction technique results in inexpensive product

High temperature soldering guaranteed: 260℃ / 10 seconds / 0.375” ( 9.5mm )

lead length at 5 lbs.,( 66642077, 2.3 kg ) tension

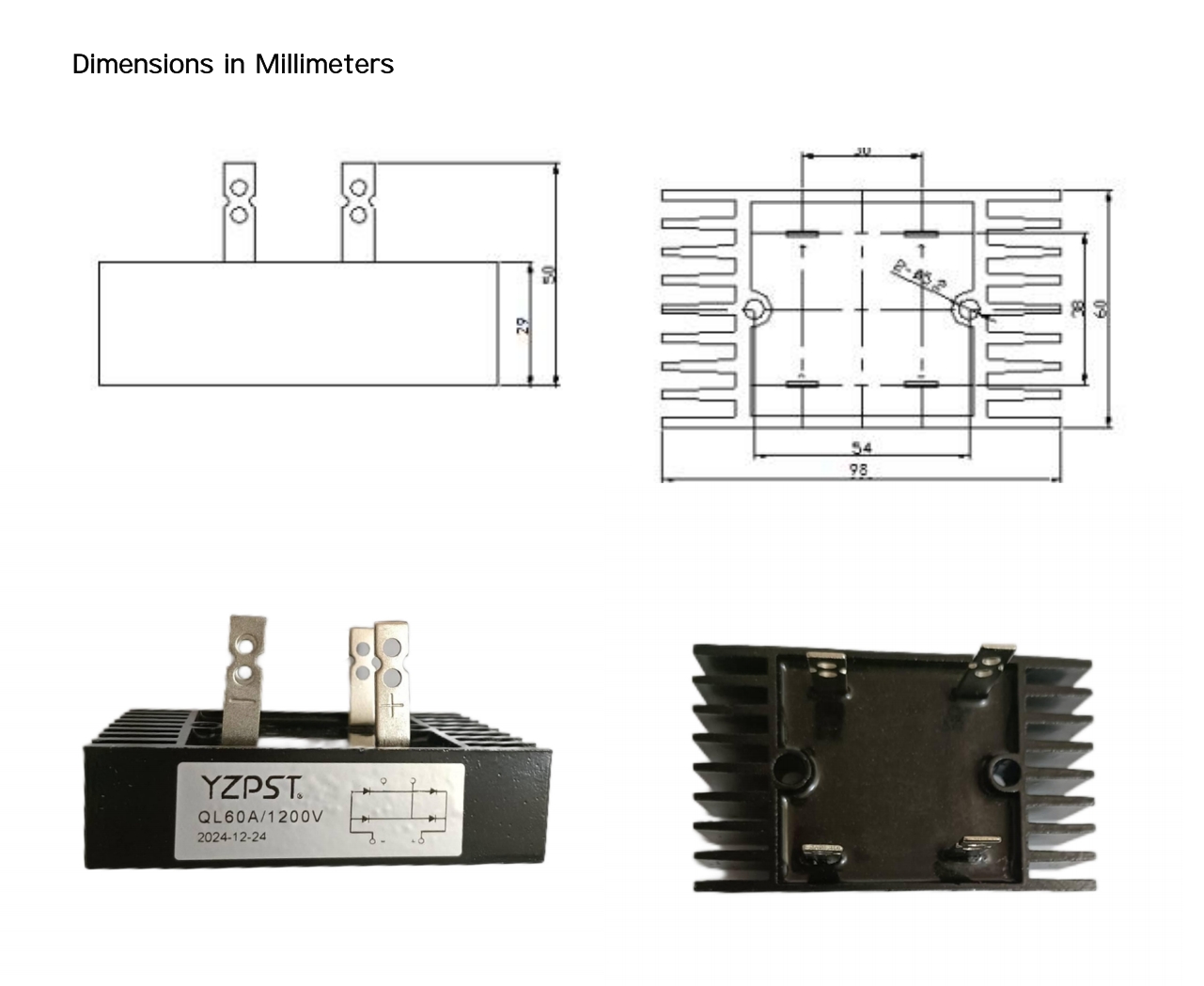

Mechanical Data

Case: Molded plastic

Lead: solder plated

Polarity: As marked

DFR		QL	QL	QL	QL	QL	QL	QL
	symbol								UNIT
		60A-02	60A-04	60A-06	60A-08	60A-10	60A-12	60A-16
Maximum reecurrent peak reverse voltage	VRRM	200	400	600	800	1000	1200	1600	V
Maximum rms lnput voltage	VRMS	140	280	420	560	700	840	1120	V
Maximum dc blocking voltage	VDC	200	400	600	800	1000	1200	1600	V
Tc=55℃	ID	60							A
Maximum average forward output rectifled	ID	60							A
Peak forward surge current 8.3ms single half sine-wave	IFSM	1000							A
IF =30 A,	VF	1.1							V
Maximum forward voltage	VF	1.1							V
Maximum reverse voltage	IR	10							μA
		10							μA
	IR(H)	200							μA
Thermal resistance junction to shell	RθJC	0.45							°C/W
Thermal resistance shell to environment	RθJA	0.5							°C
Operating temperature range	TJ	-40～+125							°C
storage temperature range	TSTG	-40～+150							°C
