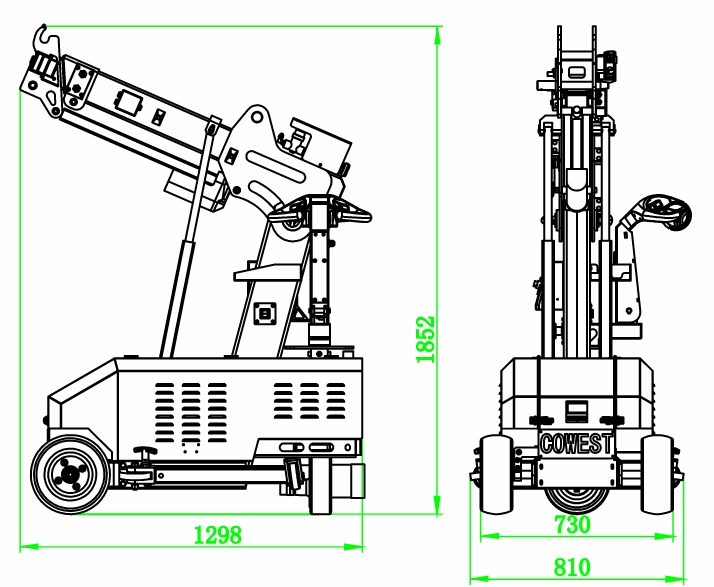

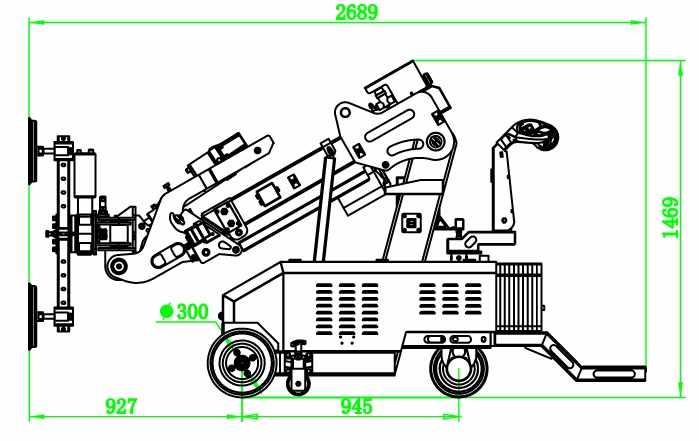

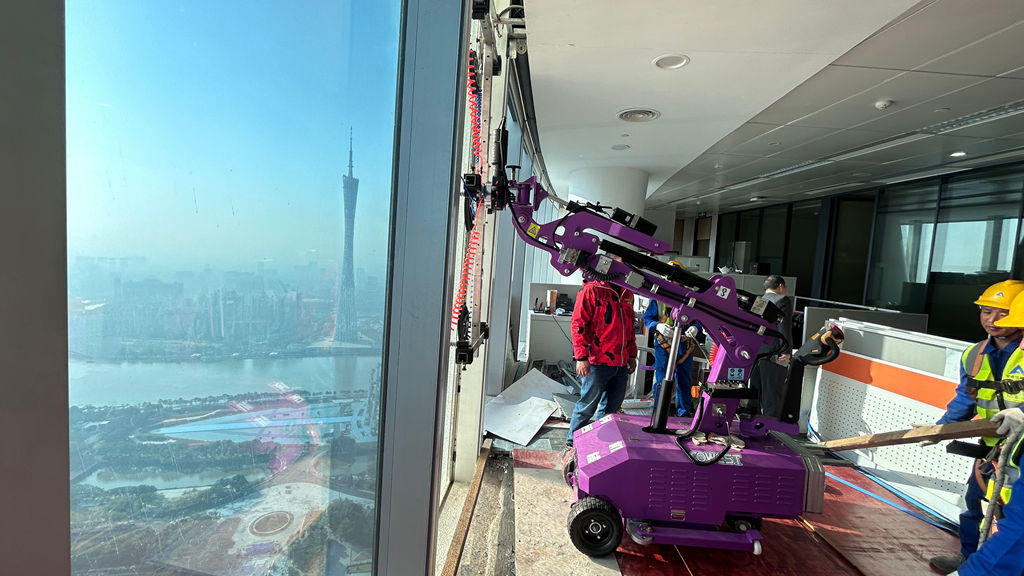

The WSR-400MINI is the most compact machine in the WSR range, and Cowest builds it around one residential constraint rather than one lifting job: a passenger lift. Its minimum dimensions are 1298 × 730 × 1852mm, so at 730mm across and 1852mm high it clears the door and the car of an ordinary residential lift, and the catalogue states this directly as "compact size: fits in most of elevators". It therefore never has to be craned through a facade, stripped down on a landing or carried up a staircase. It drives into the lift, rides up with the operator, and comes out on the floor being worked on — at 815kg self weight it is moved between floors by one operator without a second crane.

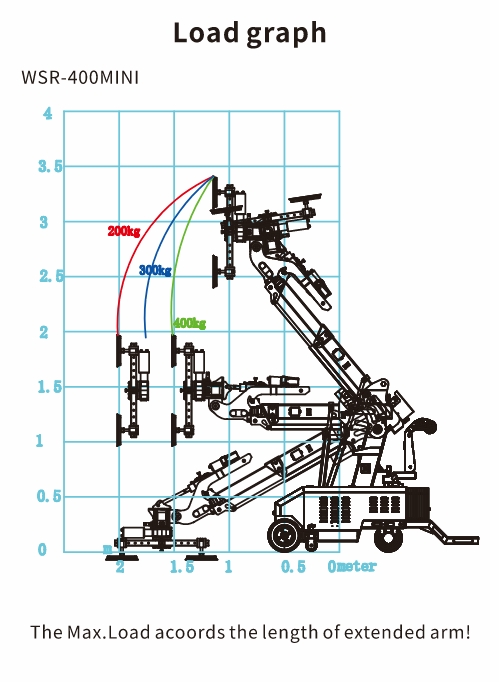

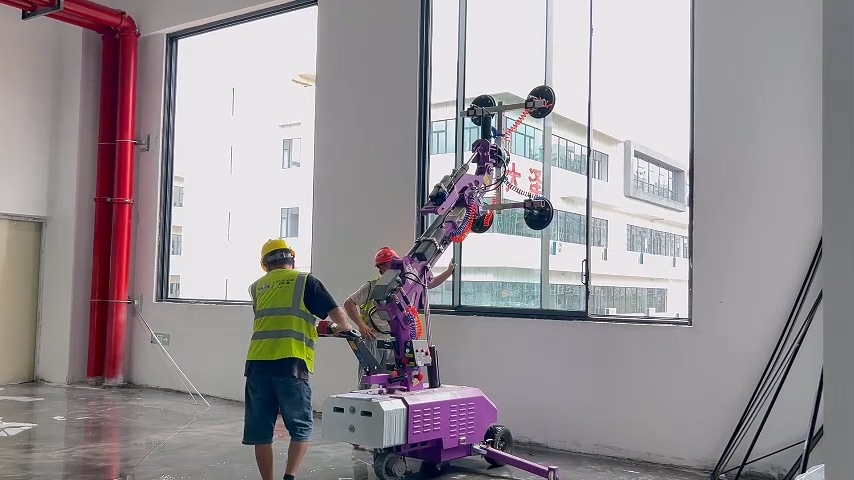

It lifts up to 400kg to a 3200mm lifting height with 500mm of forward arm extension, which covers partition glass, shopfront infill, balustrade panels, marble and tiles on an occupied floor. Four Dia.290mm suction cups on a dual-pump, dual-circuit vacuum system hold the panel, and light and acoustic alert indication is standard, so a loss of vacuum is raised on the machine rather than left to be discovered. Three load curves of 400kg, 300kg and 200kg are published, and the maximum load accords the length of the extended arm.

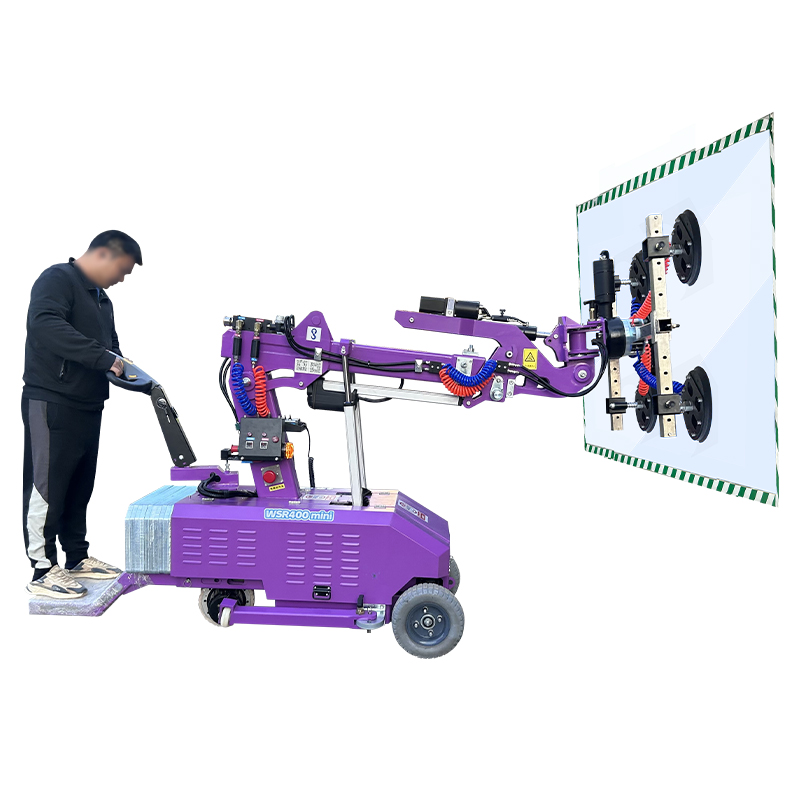

A standing platform is fitted at the rear of the machine, so the operator rides and steers with a clear view of the panel edge and the landing area instead of standing behind the load. On interior work the panel sits between the operator and the room rather than high above them, and this is the part of the machine that makes that position workable. The counterweight, the suction head and the rear platform all come off, which shortens and lightens the machine further when the lift car is tight.

The drive is a 24V motor on the back wheel with 15% uphill capability, and the machine is steered and positioned at walking pace rather than at a fixed speed. Electric control covers lifting, extension, rotation, tilting and side shifting, with side turning controlled manually on both sides. Every powered movement runs from a wired remote control, so the handset is held rather than carried loose and cannot drop mid-lift.





Electric control of: lifting, extension, rotation, tilting and side shifting. Side turning is manually controlled. Powered by a 24V battery with a wired remote control, and the speed is sensibly controlled rather than fixed.

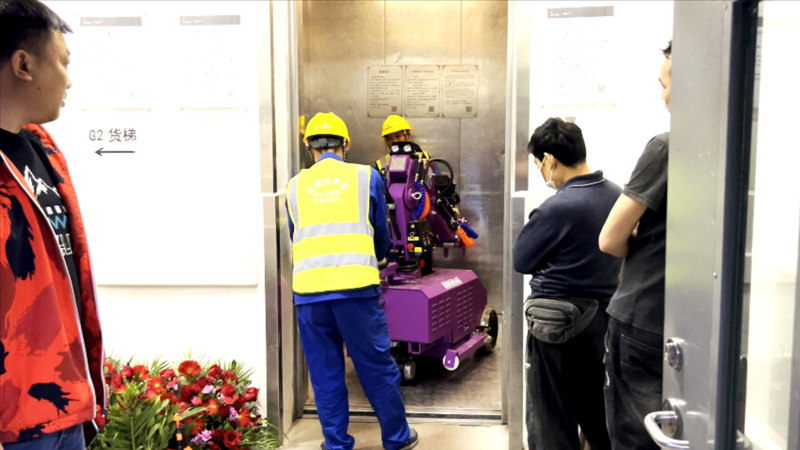

1. Compact size: fits in most of elevators. This is the machine's whole reason for existing, and the manufacturer states it as a headline specification rather than leaving it to be deduced from the dimensions. At 1298 × 730 × 1852mm the machine clears the door and the car of an ordinary residential lift, so it changes the installation method rather than just the specification. A glass panel for an upper floor is normally craned in through the facade, or the lifter is carried up a staircase in pieces, or the panel is carried by hand. This one rolls into the lift car, rides to the floor with the operator and rolls out — no facade crane, no stair carry, no dismantling on the landing, and no second machine waiting on the ground for the return trip.





2. At 815kg it is moved and repositioned by one operator. It does not need a second crane, a forklift or a delivery crew to move between floors or to be repositioned on site, and at that weight it puts no meaningful load on an ordinary multi-storey residential slab. That is what lets the work reach floors a heavier machine simply cannot be delivered to.

3. Full frame articulation in glass mode: 360° endless rotating, 0-180° tilting, ±50mm side shifting and 90° side turning on both sides, so one operator can bring a panel square to the opening without a second person guiding it.

4. Four Dia.290mm suction cups on dual pumps and dual circuits, with light and acoustic alert indication. Dual circuits mean one circuit can still hold the load if the other has a problem, and the alert is raised on the machine as well as being visible to the operator — which matters on an interior fit-out where the panel is between the operator and the room rather than high above them. Four cups on a compact head also means a smaller head to remove before entering a lift, which is where this machine is going most of the time.

5. 400kg to a 3200mm lifting height, with 500mm of forward arm extension and three published load curves of 400kg, 300kg and 200kg. The maximum load accords the length of the extended arm, so the capacity for your own panel weight and reach can be read off the published curve before you order rather than taken on trust.

6. Rear standing platform. The operator rides and steers from the rear with a clear view of the panel edge and the landing area, instead of standing behind the load. On interior work the panel is between the operator and the room rather than high above them, and this is the part of the machine that makes that position workable. The counterweight, the suction head and the rear platform all come off when the lift car is tight.

7. 24V motor on the back wheel with 15% uphill capability, and speed that is sensibly controlled rather than fixed. Back-wheel drive keeps the front of the machine clear for steering and for the standing platform, and a controlled speed lets the operator creep for final positioning at a threshold or in a confined landing instead of running at one speed.

8. Electric control of lifting, extension, rotation, tilting and side shifting, all from a wired remote control. The wired handset is a deliberate choice on a machine driven at walking pace: it is held in the hand rather than carried loose, and it does not drop mid-lift.

9. DC12V-100Ah × 2 battery packs with AC220V / 110V-240V charging give 6-8h of working time, so a full shift runs on one charge and the machine charges from the same site supply that drives it.





The WSR-400MINI is the most compact machine in the WSR range, rated to 400kg at a 3200mm lifting height with 500mm of forward arm extension, and it is built around one residential constraint: it has to get into a passenger lift. Its minimum dimensions are 1298 × 730 × 1852mm and the manufacturer states it directly as "compact size: fits in most of elevators" — so it drives in, rides up with the operator and comes out on the working floor, with no facade crane, no stair carry and no dismantling on the landing. At 815kg it is moved and repositioned by one operator without a second crane and puts no meaningful load on an ordinary multi-storey residential slab. The counterweight, suction head and rear standing platform all come off when the car is tight. Four Dia.290mm suction cups on dual pumps and dual circuits hold the panel, with light and acoustic alert indication, and three load curves of 400kg, 300kg and 200kg are published so the capacity for your own panel can be confirmed against the curve before you order. The frame gives 360° endless rotation, 0-180° tilting, ±50mm side shifting and 90° side turning on both sides; lifting, extension, rotation, tilting and side shifting are under electric control from a wired remote handset, side turning is manual, and speed is sensibly controlled rather than fixed. The drive is a 24V motor on the back wheel with 15% uphill capability. Batteries are DC12V-100Ah × 2 with 6-8h of working time. It is supplied as a complete unit with charger and remote control. Send us your heaviest panel, the panel dimensions, the height you need to reach, your lift car dimensions and your access route, and we will confirm the capacity from the load chart and whether the machine fits your lift and your floor.





1. Will it fit in our residential elevator?
That is the design point of this machine, and the catalogue states it as "compact size: fits in most of elevators". Minimum dimensions are 1298 × 730 × 1852mm, so it is 730mm across and 1852mm high, which clears the door and the car of an ordinary residential passenger lift. Note this is a machine that goes into a lift, not one that installs or services lifts. The counterweight, the suction head and the rear standing platform come off when the car is tight. It then drives itself in and out; no crane, no staircase carry and no dismantling on the landing. Please send us your lift car internal dimensions, the door opening width and the corridor widths on the route, and we will check the machine against them before shipment.

2. How much glass can it lift, and how does the capacity change?
Up to 400kg to a 3200mm lifting height with 500mm of forward arm extension. The maximum load accords the length of the extended arm, and three load curves of 400kg, 300kg and 200kg are published with the machine. Four Dia.290mm cups on a single head take a dense rectangular panel rather than small square units, and the same head handles marble and tiles. Send us the panel weight, the panel dimensions and the height you need, and we will read the rating off the curve for you.

3. How long does the battery last, and how long does a shift run?
Two DC12V-100Ah × 2 packs give 6-8 hours of continuous operating time, and the charger accepts AC220V / 110V-240V, so it charges from the same site supply that powers the site. The battery is included in the one-year quality guarantee, and the lift span of the packs is around four years when maintained to the manual.

4. How is it operated, and what does the warranty cover?
Lifting, extension, rotation, tilting and side shifting are under electric control from a wired remote control, while side turning is manual on both sides. The machine uses most common hardware parts, so parts can be bought at a local hardware or forklift parts supplier rather than shipped from us, and if it breaks down we guide the repair by video and repair instruction. One year quality guarantee including the battery; wheels are not included. If it breaks down within one year we send the parts free of charge.However, the feight cost should be yours.
