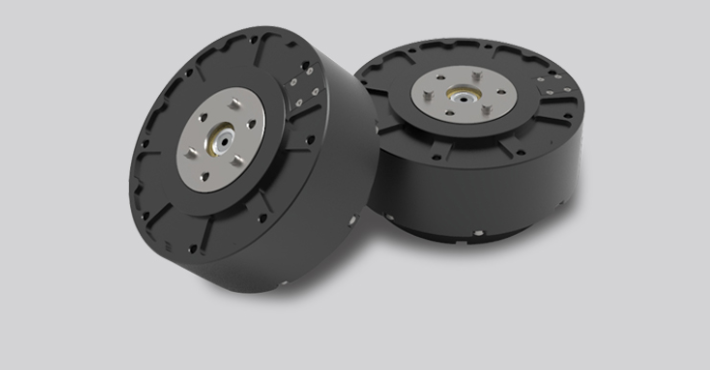

robot arm motors set
10 month ago

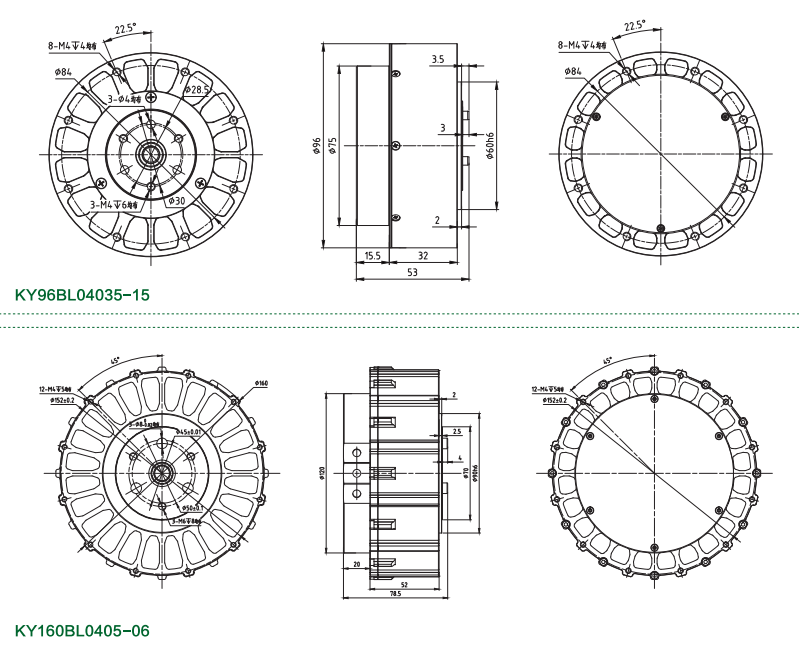

model KY96BL04035-15 joint motor parameter
- Rated Voltage: DC48-96v
- Four-in- one drive(integrated servo motor,driver, encoder and reducer) with stable running.
- Low speed, high torque, good dymatic performance and high control accuracy.
- multiple protection functions ensure smooth operation.
- Support customization.
| rated voltage | 48v |
| rated power | 350w |
| rated current | 10.3A |
| speed | 258r |
| rated torque | 13n.m |
| peakcurrent | 20A |
| peak torque | 30n.m |
| number of poles | 30 |
| feedback element | absolute encoder |
| reduction ratio | 1:6 |
| working mode | speed mode; torque mode; absolute mode; relative mode |
