4 axis vertical machining center
6 month ago

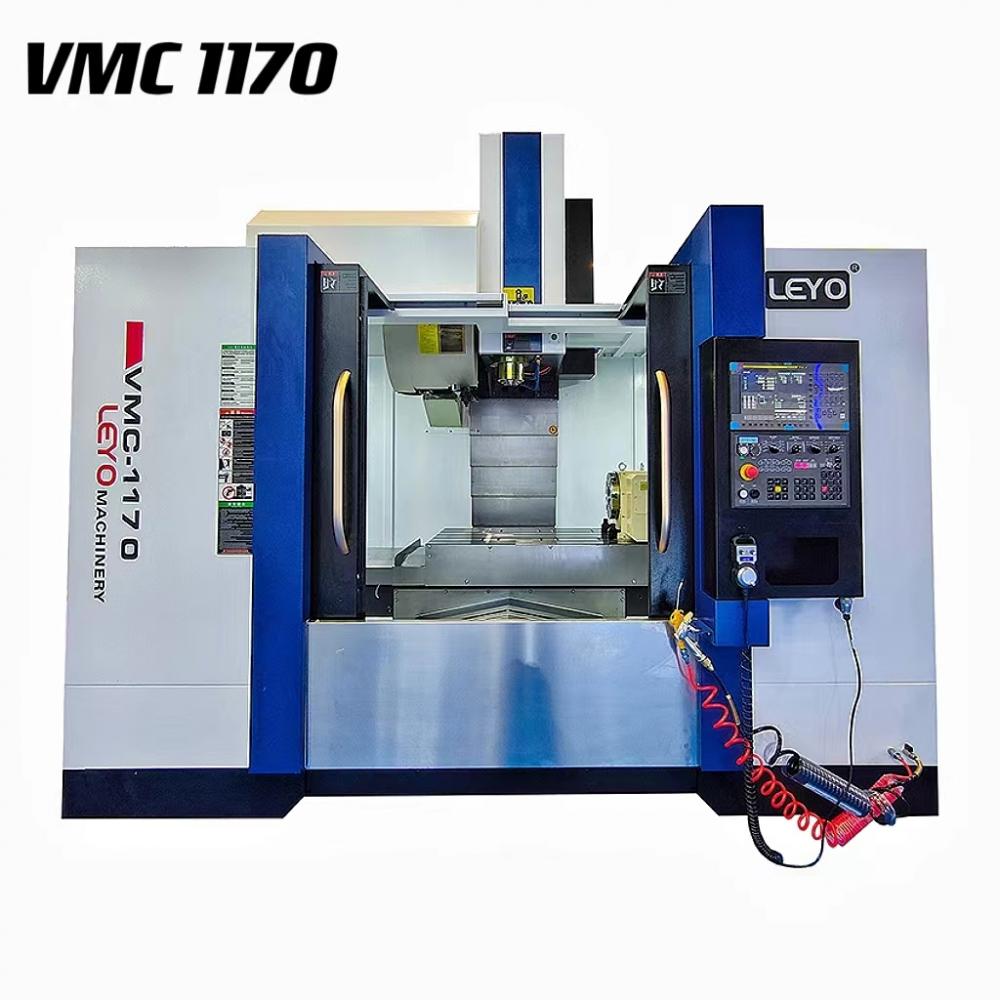

LEYO VMC 1170 Vertical Machining Center Description
The VMC1170 machining center belongs to the V10 series of vertical machining centers, which have higher cost-effectiveness compared to VMC1160 machines. The Y-axis and Z-axis are 100mm larger, but the price is close. And a spiral chip conveyor can be installed inside the machine, which is conducive to automatic cleaning of iron chips inside the machine.
Brand:LEYO
Machine Name:VMC 1170 Vertical Machining Center
Xyz Aixs Stroke: 1100/700/700 mm
Working Table Size and Max load:1200*650 mm 850 kg
Spindle Type:Belt spindle
SpindleTaper Hole:BT40
SpindlePower/Speed:11 kw 10000 rpm
Xyz Axis Position Accuracy:±0.005 mmXyz Axis Reposition Accuracy:±0.003 mm
Machine Weight:8000 kg
Machine Size:2850*2590*2390 mm
Axis Number:3/4/5 axis
Tool Library capacity:24T
Controller System:Gsk/Hnc/Lnc/Syntec/Mitsubishi/Fanuc/Siemens
FAQ
1. What is a spiral chip conveyor?
Spiral chip removal machine refers to industrial machinery and equipment used to remove debris. Generally installed on both sides of the machine inside the machining center and gantry milling machine, it can automatically clean the waste residue inside the machine. Keep the interior of the machine in a hurry, extend the service life of the machine, and save on the cost of manual cleaning.
