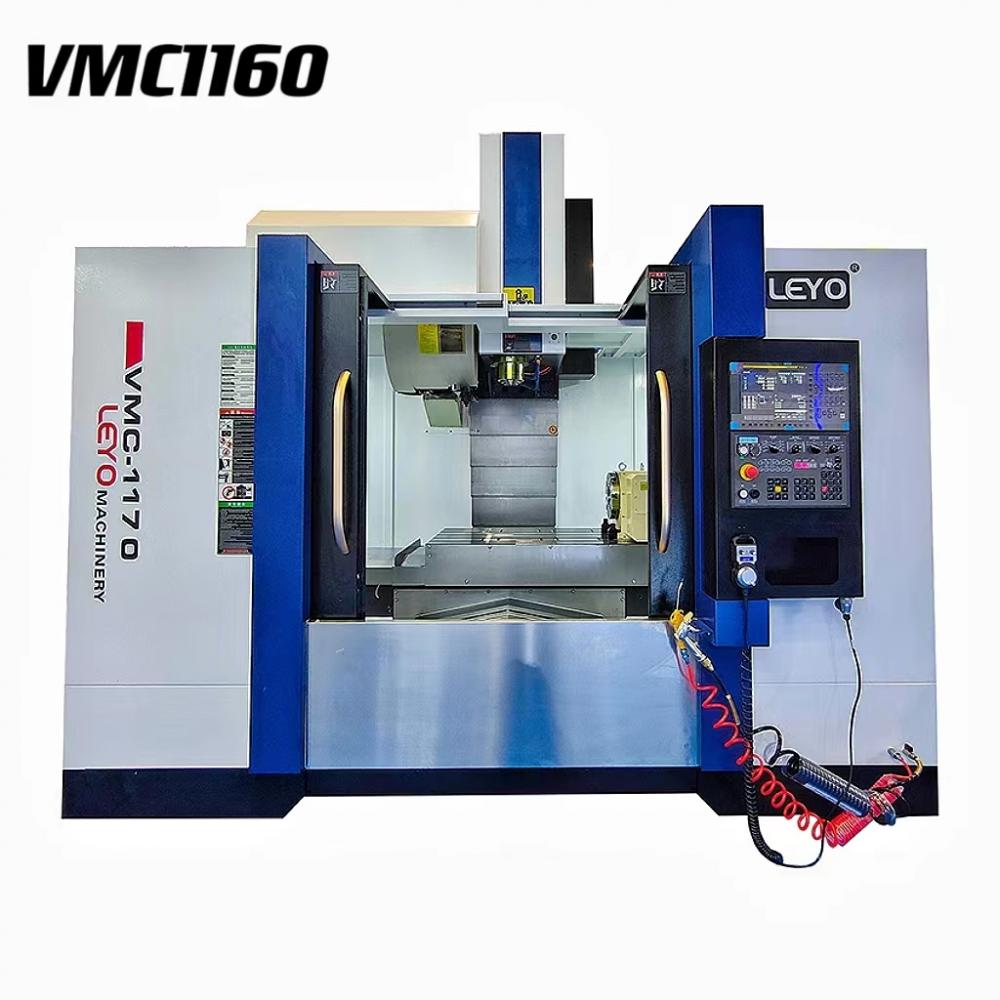

VMC1160 vertical machining center

2 year ago

26 0 

Dongguan Liyang Intelligent Technology Co., Ltd

4 year

Product details

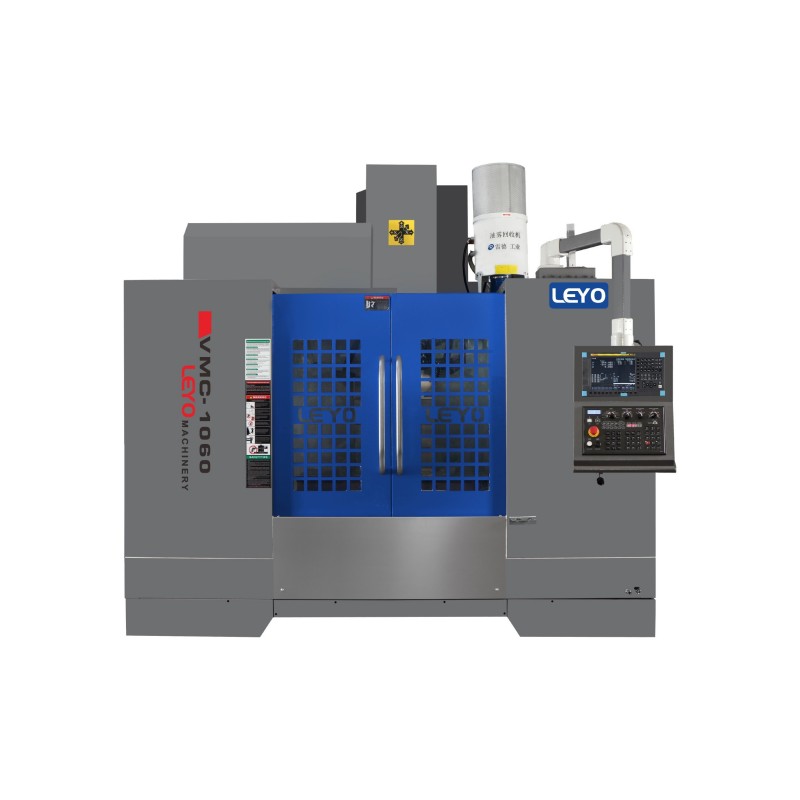

LEYO VMC1060 CNC Machining Center Description

LEYO VMC1060 CNC Machining Center Technical Parameters

Brand:LEYO

Product Name:VMC1060 CNC Machining Center

Xyz Aixs Travel: 1100/600/600 mm

Working Table and load:1100*600 mm 1000 kg

Spindle:Belt spindle BT40 11 kw 12000 rpm

Machine Weight:6500 kg

Machine Size:3150*2340*2800 mm

Axis Number:3/4/5 axis

Tool magazine capacity:24T

Controller:Syntec/Mitsubishi/Fanuc/Siemens

Tip：The information provided above is for reference only. Specific technical parameters can be customized according to customer needs, and the actual specifications shall prevail.

FAQ

Q1: What is VMC1060?

A: VMC1060 is a very common vertical machining center (VMC). "VMC" stands for vertical machining center, "10" represents an X-axis travel of approximately 1000 millimeters, and "60" represents a Y-axis travel of approximately 600 millimeters. It is an automated precision machine tool controlled by a computer numerical control (CNC) system, with the spindle arranged vertically, used for various machining operations such as milling, drilling, tapping, boring, etc., on metals (such as steel, aluminum, copper, iron) and certain non-metallic materials.

Q2: What is the difference between a vertical machining center (VMC) and a horizontal machining center (HMC)?

A: The main difference lies in the direction of the main axis.

VMC (Vertical Machining Center): The spindle is vertically downward. Its advantages include simple structure, small footprint, convenient clamping (especially suitable for plate and disc parts), and relatively low cost. However, it has disadvantages such as difficulty in chip removal and limited depth when machining box-type parts.

HMC (Horizontal Machining Center): The spindle is arranged horizontally. The advantage is smooth chip evacuation, and multiple surfaces can be machined through rotating the worktable (tray) with one setup, making it ideal for complex box-type parts. The disadvantage is that the equipment is expensive and requires a large footprint.
