VMC1170 vertical machining center
6 month ago

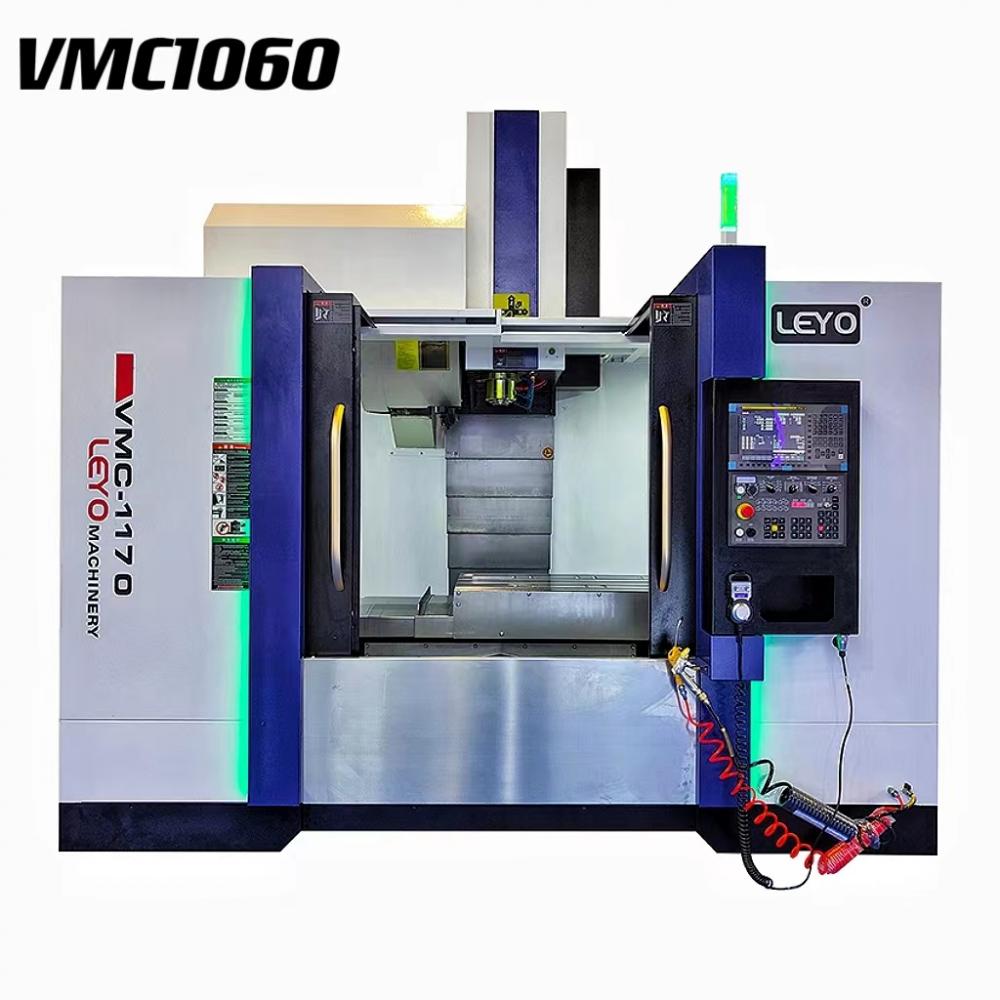

LEYO VMC1060 CNC Machining Center Description
Leyo vmc1060 cnc machining center adopting Taiwan HIWIN/PMI or Japan THK's P-grade precision customized roller line rail for one-time molding without cutting, increasing the stress area, making the machine have heavier bearing capacity and improving machine accuracy.
Brand:LEYO
Product Name:VMC1060 CNC Machining Center
Xyz Aixs Travel: 1000/600/600 mm
Working Table and load:1100x600 mm 800 kg
Spindle:Belt spindle BT40 11 kw 10000 rpm
Xyz Position Accuracy:±0.005 mm
Xyz Reposition Accuracy:±0.003 mm
Machine Weight:6500 kg
Machine Size:2750*2440*2390 mm
Axis Number:3/4/5 axis
Tool magazine capacity:24T
Controller:Gsk/Hnc/Lnc/Syntec/Mitsubishi/Fanuc/Siemens
FAQ
How to distinguish vertical machining center and horizontal machining center？
1.Vertical machining center and horizontal machining center difference mainly lies in the table is different. The vertical machining center table is usually a T-slot table of cross sliding table structure. There are two sets of motion mechanisms responsible for moving in the vertical direction of each other. The X-feed table is covered on the guide rail responsible for Y-feed.
2.The horizontal machining center of the table, only designed to X or Y movement, the form of the table is generally a lattice screw hole table of the rotary table, relatively easy to install exchange type double table.
