Glass Clip Clamp for Bathroom

The Glass Fixing Clip is an essential tool for securing fixed glass panels in frameless or semi-frameless shower systems. These clips secure panels to walls, floors, or adjacent glass while preserving the enclosure's transparency and openness.Because shower spaces are constantly exposed to moisture, the corrosion-resistant materials used in Glass Fixing Clips provide long-term durability and dependability. When properly installed, the clips keep the glass from shifting, rattling, or misaligning, ensuring a watertight enclosure and a consistent appearance.

Technical Specifications

• Model: DDGC010
• Main Material: SUS304 Stainless Steel (food-grade corrosion resistance & structural strength)
• Suitable Glass Thickness: 8-10mm (tempered wide-span shower glass)
• Maximum Load Capacity: 50kg per clip (supports 1.2m-wide 8-10mm glass panels)

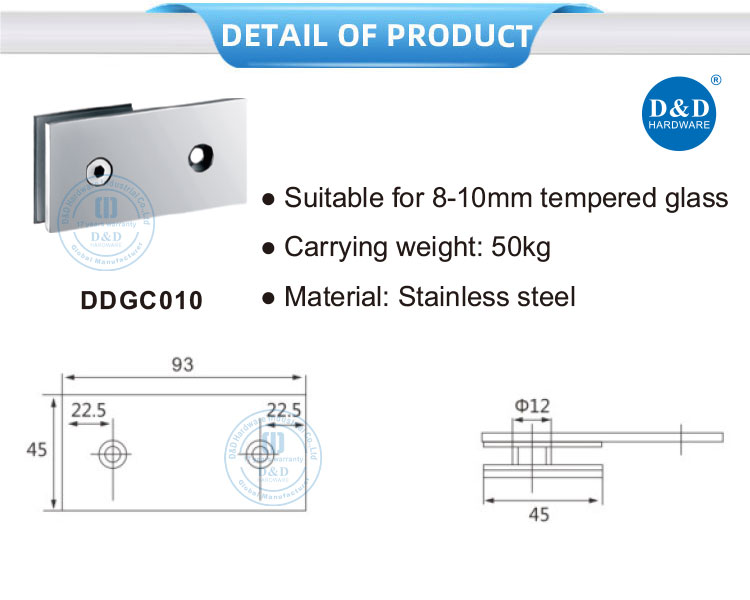

• Product Dimensions:
  • Overall Size: 93mm (length) × 45mm (width)
  • Hole Spacing: 22.5mm (symmetric dual-hole design for balanced force)
  • Hole Diameter: Φ12mm (compatible with standard wall anchors)
• Surface Processing: Mirror Plated (scratch-resistant, non-porous finish)
• Warranty Coverage: 10-Year Mechanical Warranty (covers structural integrity & corrosion resistance)

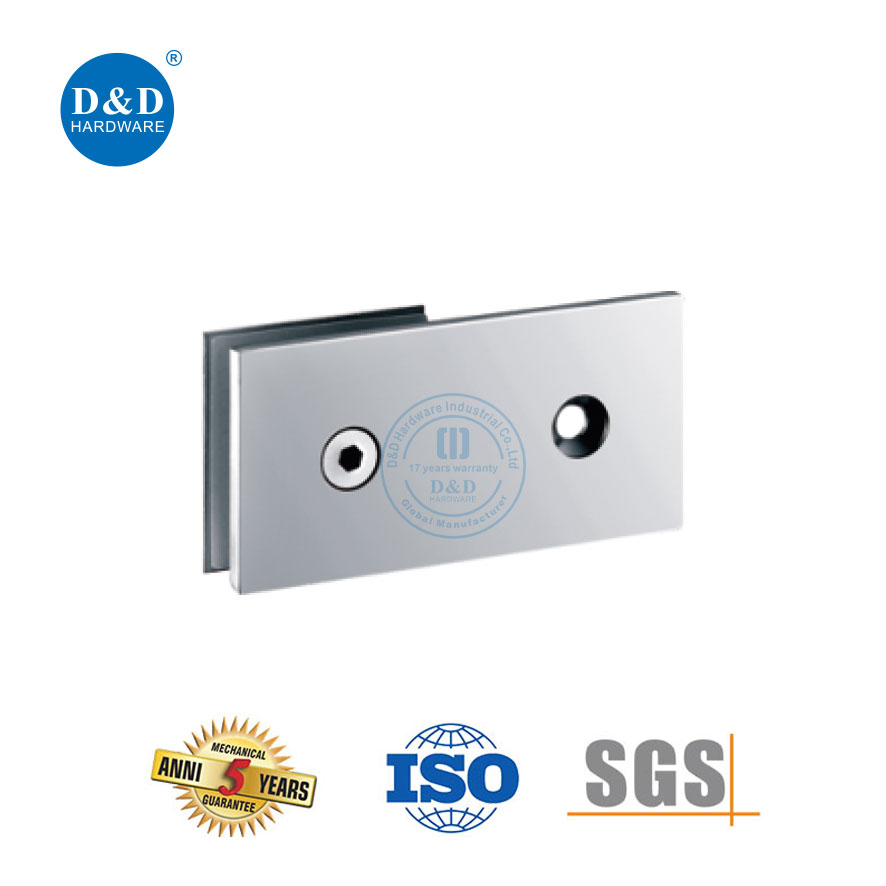

Product Images and Videos

Product Features & Advantages

• 93mm Elongated Wall-Mount Design: Unlike 45mm compact clips, this long-strip profile increases wall contact area by 50%, distributing glass load more evenly and reducing wall anchor stress—critical for 1.2m-wide glass panels (no extra fixtures needed).
• Symmetric Dual-Hole Fixing: The 22.5mm-spaced Φ12 holes create a balanced fixing structure, eliminating single-hole "tilting risk" common in narrow clips and enhancing glass stability by 40%.
• SUS304 Stainless Steel Corrosion Resistance: The food-grade SUS304 material passes 240-hour salt-spray testing (no rust/discoloration), outperforming 201 stainless steel alternatives in humid hotel or spa bathrooms.
• Mirror Plated Non-Porous Surface: The smooth, pore-free finish repels soap scum, hard water stains, and mildew—requiring only a dry microfiber cloth for cleaning, meeting hospital-grade sanitation standards.
• 50kg High Load for Wide Glass: Each clip supports up to 50kg (equivalent to 1.2m-wide 8-10mm glass), cutting the number of clips needed per panel by 30% and reducing installation labor costs.
• Seamless System Integration: Pair with D&D’s Shower Cubicle System, Shower Door Knob, and Restroom Accessories to build cohesive wide-frameless shower setups—enabling one-stop sourcing for commercial projects.

Step-by-Step Installation Guide

1. Prep Tools & Materials: Gather DDGC010 clips, electric drill (6mm masonry bit), Phillips-head screwdriver (#2), measuring tape, magnetic level, pencil, masking tape, Φ12 wall anchors (matching wall type), and 15mm glass-compatible screws.
2. Mark Wide-Glass Wall Positions:
   • On the wall: Mark 20cm from top/bottom of the target wide-glass area; use a level to ensure horizontal alignment (critical for even load distribution on 1.2m panels).
   • Apply masking tape to marked areas to prevent wall chipping during drilling.
3. Drill Holes & Install Anchors:
   • Drill 6mm holes (depth: 25mm) at the dual-hole marks; insert Φ12 wall anchors and tap flush with the wall.
4. Secure the Long-Strip Clip:
   • Align the clip’s dual holes with anchors; tighten screws to 4.5N·m torque (keep the clip level during tightening to avoid glass stress).
5. Insert Wide Glass & Verify Stability:
   • Slide the 8-10mm wide glass panel into the clip’s slot—ensure it sits flush with the clip’s inner edge.
   • Gently apply lateral force to the glass (focus on the middle of the 1.2m span) to confirm no movement; add 1 clip per 60cm panel length for extra-large 1.5m sections.

Application Scenarios

The DDGC010 Long-Strip Glass Clip excels in wide-glass layouts, integrating with D&D’s shower hardware ecosystem:

In boutique hotels, it stabilizes 1.2m-wide shower screens (paired with Shower Pull Handles for luxury functionality); in open-plan apartments, its long-strip design supports wide glass partitions without visual clutter; in hospitals, the easy-clean mirror finish aligns with sanitization protocols, while SUS304 material resists corrosion from cleaning chemicals.

Customization Options

• Material Upgrade: SUS316 Stainless Steel (for extreme coastal humidity or chemical-exposed laboratory restrooms).
• Surface Finish Customization: Brushed Stainless Steel, Matte Black PVD, or Bronze-Toned PVD (to match Restroom Accessories or project branding).
• Glass Slot Customization: 10-12mm slot width (for thicker non-standard wide glass, available on custom order).
• OEM Branding & Packaging: Laser-engraved client logos on clip bodies, custom branded boxes (ideal for hotel chain suppliers or wide-glass project distributors).

Production Process & Quality Control

1. Material Sourcing & Verification: SUS304 stainless steel sheets are tested via optical emission spectrometry (OES) to confirm purity meets glass door hardware structural and hygiene standards.
2. CNC Precision Machining: Clips are shaped to 0.02mm dimensional tolerance (93×45mm) to ensure symmetric 22.5mm hole spacing and Φ12 hole accuracy for balanced fixing.
3. Surface Treatment & Plating: Clips undergo electroplating (mirror finish) + 72-hour baking to enhance finish adhesion and corrosion resistance.
4. 100% Functional Testing: Every unit undergoes 50kg load testing (24h), 240-hour salt-spray testing, and dual-hole alignment verification—failed units are discarded immediately.
5. Final Inspection & Packaging: Clips are checked for surface consistency, slot width, and load stability; only passing products are packaged (custom packaging available via OEM).
