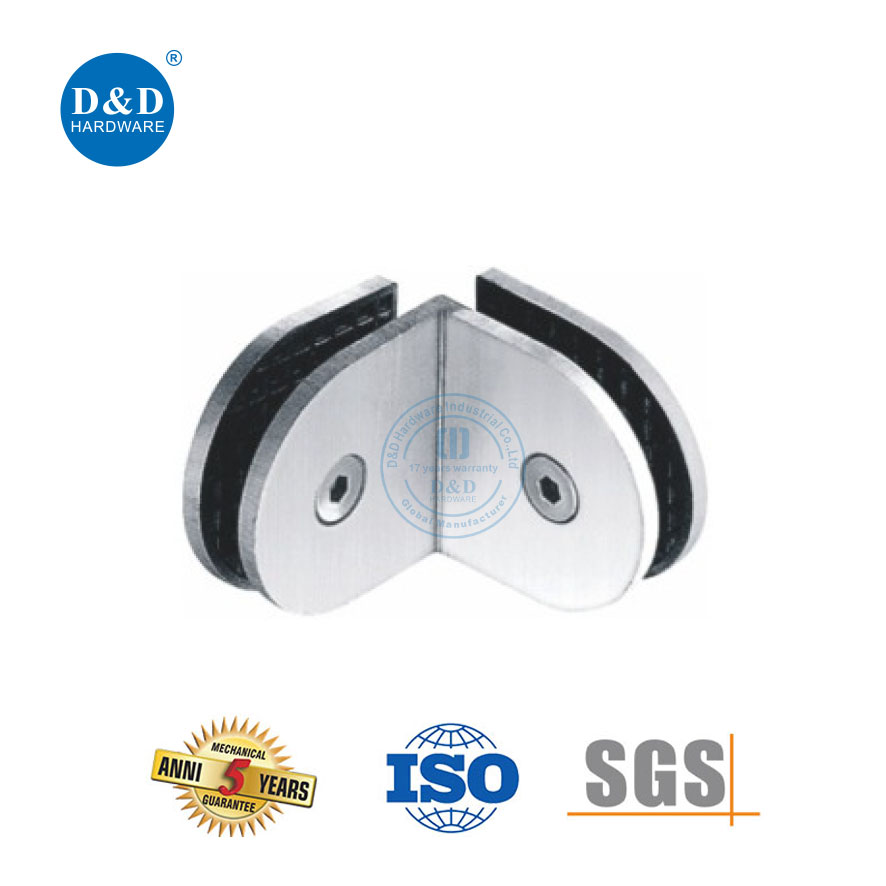

Shower Room Door Glass Clamp Clip

Door Glass Clips are specialized hardware components that attach glass panels to door frames, metal structures, or supporting surfaces in both residential and commercial settings.Door Glass Clips are commonly used in shower doors, office partitions, glass cabinets, balcony doors, and frameless glass entrances because they provide strong structural support while maintaining the sleek and elegant appearance of glass installations.Door Glass Clips are typically made of high-quality materials like stainless steel 201, 304, or 316, which provide excellent resistance to corrosion, moisture, and chemical exposure.

Technical Specifications

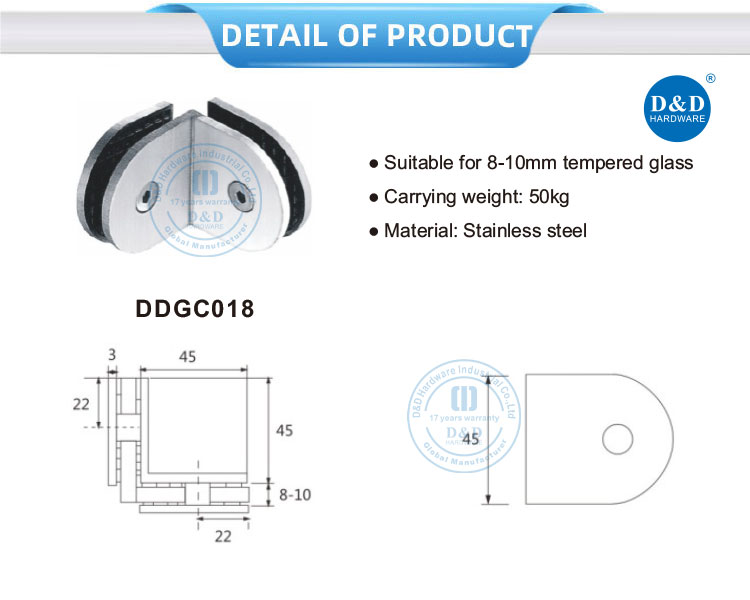

• Model: DDGC018
• Main Material: SUS304 Stainless Steel (corrosion-resistant & high-stability structural rigidity)
• Suitable Glass Thickness: 8-10mm (tempered shower/partition/railing glass)
• Maximum Load Capacity: 50kg per clip (supports 1.2m-span 8-10mm glass panels)
• Product Dimensions:
  • Overall Size: 45mm × 45mm (compact 90° profile)
  • Dual-Hole Spacing: 22mm (symmetric alignment for balanced force)
  • Glass Slot Width: 8-10mm (precision-calibrated for target glass)
• Surface Processing: Mirror Plated (scratch-resistant, non-porous rounded-edge finish)
• Warranty Coverage: 10-Year Mechanical Warranty (covers structural integrity & corrosion resistance)

Product Images and Videos

Product Features & Advantages

• Symmetric Dual-Hole Design: Unlike single-hole clips, the 22mm-spaced dual holes distribute clamping force evenly across the glass corner, reducing local stress by 60% and enhancing overall stability by 50%—ideal for 1.2m-wide glass panels.
• Rounded-Edge Safety Profile: The smooth rounded edge eliminates sharp collision points, reducing injury risk by 80%—perfect for family bathrooms, hotel kid-friendly suites, and hospital public areas.
• SUS304 Stainless Steel All-Environment Durability: Passes 240-hour salt-spray testing (no rust/discoloration), outperforming 201 stainless steel clips in humid showers, coastal homes, and sanitized commercial spaces.
• 45×45mm Compact & Versatile: The small-size structure saves 25% of space compared to 60mm-wide alternatives, fitting narrow shower corners and small-apartment glass partitions without visual clutter.
• Mirror Plated Low-Maintenance Surface: The non-porous finish repels soap scum, hard water stains, and mildew—requiring only a dry microfiber cloth for cleaning, aligning with high-hygiene standards for public facilities.
• Seamless System Integration: Pair with D&D’s Shower Cubicle System, Shower Door Knob, and Handrail Bracket to build cohesive high-stability setups—enabling one-stop sourcing for renovation contractors.

Step-by-Step Installation Guide

1. Prep Tools & Materials: Gather DDGC018 clips, Phillips-head screwdriver (#2), 90° angle ruler, measuring tape, pencil, masking tape, 6mm drill bit, and 12mm glass-compatible self-tapping screws.
2. Mark Symmetric Dual-Hole Positions:
   • On glass/wall: Mark 15cm from top/bottom (avoid high-traffic zones); use a 90° ruler to align for precise 90° joints, then mark the 22mm-spaced dual-hole positions (apply masking tape to prevent glass scratches).
3. Drill Pilot Holes:
   • Drill 2mm pilot holes (depth: 10mm) into glass/wall at the marked dual-hole positions—ensure holes are aligned to avoid uneven force.
4. Install the Dual-Hole Clip:
   • Slide 8-10mm glass into the clip’s slot (ensure flush fit with rounded inner edge); align the clip’s dual holes with the pilot holes, then tighten screws to 3.5N·m torque (avoid over-tightening to prevent glass damage).
5. Verify Stability & Safety:
   • Check the 90° joint with a ruler; apply lateral force to the glass center to confirm no movement.
   • For 1.2m+ glass panels: Add 1 clip per 50cm length to maintain 50kg load capacity.

Application Scenarios

The DDGC018 Dual-Hole Glass Clip excels in high-stability & safety-focused environments, integrating with D&D’s shower hardware ecosystem:

In hotels, its dual-hole design stabilizes 1.2m-wide shower screens (paired with Shower Pull Handles for luxury functionality); in family apartments, the rounded edge protects children from bumps; in hospitals, the easy-clean mirror finish meets sanitization protocols, while SUS304 material resists corrosion from daily disinfection—reducing long-term maintenance costs by 30%.

Customization Options

• Material Upgrade: SUS316 Stainless Steel (for extreme coastal humidity or chemical-exposed laboratory facilities).
• Surface Finish Customization: Brushed Stainless Steel, Matte Black PVD, or Bronze-Toned PVD (to match Restroom Accessories or space-themed aesthetics).
• Glass Slot Customization: 10-12mm slot width (for thicker non-standard safety glass panels, available on custom order).
• OEM Branding & Packaging: Laser-engraved client logos on rounded edges, safety-focused branded boxes (ideal for family-friendly hotel chain suppliers).

Production Process & Quality Control

1. Material Sourcing & Verification: SUS304 stainless steel sheets are tested via optical emission spectrometry (OES) to confirm purity meets glass door hardware high-stability standards.
2. CNC Precision Machining: Clips are shaped to 0.02mm tolerance (45×45mm) with symmetric 22mm-spaced holes and rounded edges (±0.5mm smoothness) for consistent performance.
3. Surface Treatment & Plating: Clips undergo electroplating (mirror finish) + 72-hour baking to enhance rounded-edge smoothness and corrosion resistance.
4. 100% Stability & Safety Testing: Every unit undergoes 50kg load testing (24h), 240-hour salt-spray testing, and dual-hole alignment inspection—failed units are discarded immediately.
5. Final Inspection & Packaging: Clips are checked for slot width, load stability, and rounded-edge safety; only passing products are packaged (custom safety-themed packaging available via OEM).
