Glass Door Accessories Patch Fitting

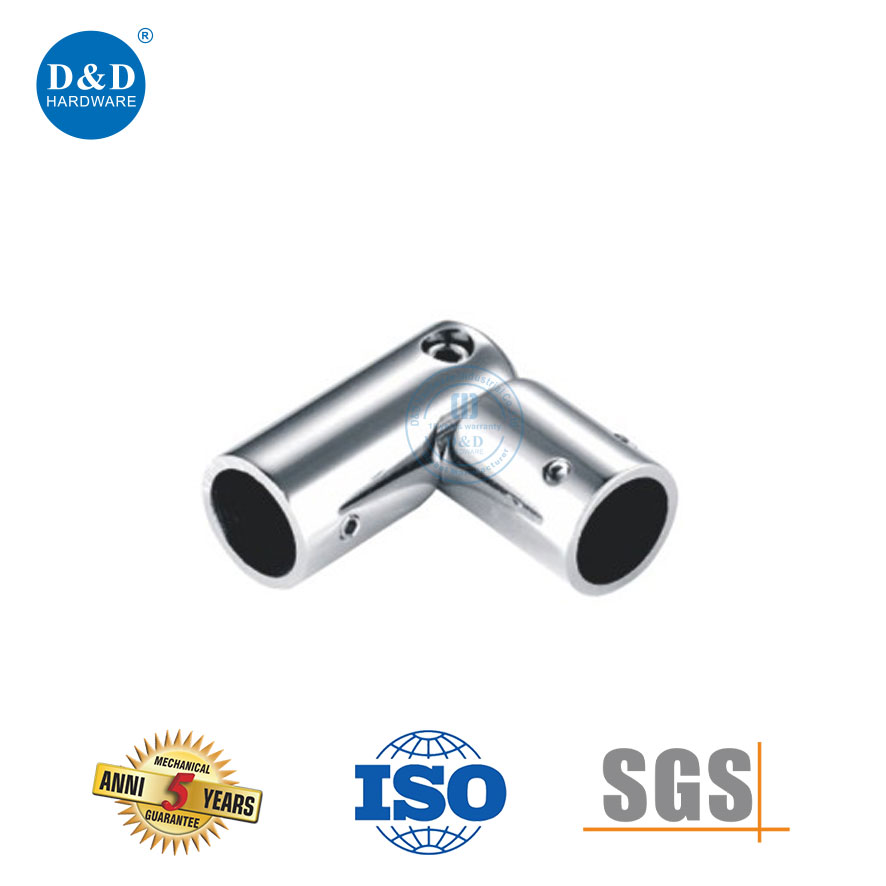

The D&D Hardware DDSC028 Stainless Steel Pipe Connector is a precision-engineered component designed to provide seamless integration and structural stability to modern shower cubicle systems and stairway guardrails. Crafted from premium stainless steel with a mirror-chrome finish, this connector securely joins two round tubes at a precise 90° angle, creating a stable and stylish transition in frameless shower enclosures and stairway guardrails. It is an essential part of our comprehensive Shower Door Hardware lineup, ensuring that every Shower Cubicle System achieves both functional reliability and a refined, contemporary appearance.

Technical Specifications

• Model No.: DDSC028
• Brand: D&D HARDWARE
• Material: Stainless Steel (SUS304)
• Surface Finish: Chrome, Mirror Plated
• Compatible Tube Size: Φ19-Φ25mm round tube

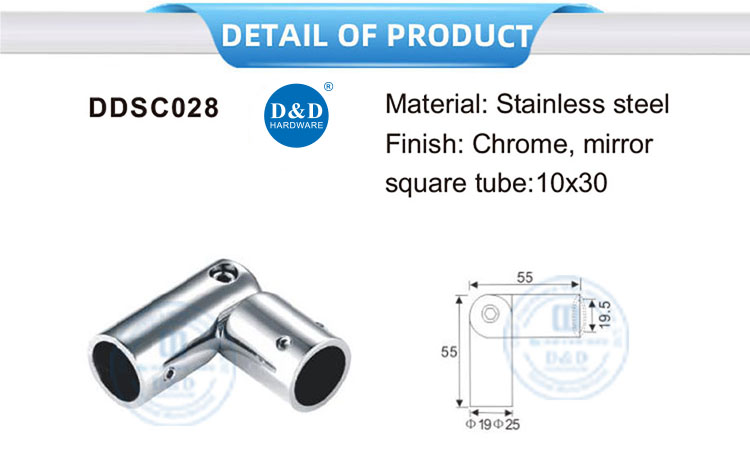

• Overall Dimensions: 55mm (width) × 55mm (height) × 19.5mm (depth)
• Mounting: Two-point screw fixation for secure installation
• Warranty: 5 Years

Product Images and Videos

Product Features & Advantages

• Precision 90° Angle Design: The DDSC028 is engineered to create a precise 90° corner, ideal for modern shower enclosures and stairway guardrails that feature right-angle configurations. This precision ensures a seamless transition between the two round tubes, eliminating gaps and maintaining the structural integrity of the entire system.
• Premium Stainless Steel Construction: Made from high-grade SUS304 stainless steel, this connector offers exceptional resistance to corrosion, rust, and tarnishing in the humid bathroom environment and outdoor stairway settings. Its durability ensures long-term performance, even in high-traffic commercial settings like hotels and hospitals.
• Mirror-Chrome Finish for Aesthetic Appeal: The mirror-chrome plating provides a sleek, reflective surface that complements the clean lines of glass panels and metal tubes. This finish not only enhances the visual appeal of the space but also resists fingerprints and smudges, making it easy to maintain a pristine appearance.
• Secure Two-Point Mounting: The connector features two pre-drilled mounting points, allowing for a secure and stable installation. This design ensures that the connected tubes remain firmly in place, preventing movement or shifting that could compromise the safety and functionality of the shower cubicle or stairway guardrail.
• Universal Integration: Designed to work seamlessly with our full range of Shower Door Hardware, including Glass Hinges and Shower Pull Handles, the DDSC028 is a reliable choice for both new installations and retrofitting projects, ensuring a cohesive and functional shower system or stairway guardrail.

Step-by-Step Installation Guide

1. Prepare the Round Tubes: Cut the round tubes to the required length, ensuring clean, square cuts. Deburr the ends to remove any sharp edges that could damage the connector or glass panels.
2. Position the Connector: Insert the two round tubes into the DDSC028 connector, ensuring they are fully seated. Use a spirit level to confirm that both tubes are properly aligned and level at a precise 90° angle.
3. Mark the Mounting Holes: Use a pencil to mark the positions of the two mounting holes on both tubes through the pre-drilled holes in the connector. This ensures accurate drilling and a secure fit.
4. Drill the Mounting Holes: Drill the marked holes into the tubes using a drill bit appropriate for stainless steel. Apply a small amount of cutting oil to the drill bit to prevent overheating and ensure a clean, precise hole.
5. Secure the Connector: Insert the screws through the connector and into the drilled holes in the tubes. Tighten the screws firmly using a screwdriver or Allen wrench, ensuring that the connector is securely fastened to both tubes.
6. Test for Stability: Gently shake the connected tubes to ensure that the connector is secure and stable. If any movement is detected, re-tighten the screws or check for any misalignment.

Application Scenarios

The DDSC028 Stainless Steel Pipe Connector is a versatile component that finds application in a variety of settings. In luxury hotel and villa bathrooms, it is used to create elegant, right-angle shower enclosures that enhance the guest experience. For residential apartments, it provides a modern, minimalist solution for frameless shower designs, complementing contemporary interior aesthetics. In commercial facilities such as hospitals and gyms, its durable construction and secure mounting ensure reliable performance in high-traffic environments. Additionally, it is an essential component for stairway guardrails, providing the necessary support and stability for safe and stylish stairway designs. When paired with our Glass Hinge and Shower Pull Handle, it completes a cohesive and functional Shower Cubicle System that meets the highest standards of quality and design.

Customization Options

• Material Upgrades: For enhanced corrosion resistance in coastal or high-humidity environments, we offer upgrades to SUS316 stainless steel.
• Finish Customization: In addition to mirror-chrome, we provide a range of finishes including brushed nickel, matte black PVD, and satin stainless steel to match different design schemes.
• Tube Size Customization: While the DDSC028 is designed for Φ19-Φ25mm round tubes, we can custom-manufacture connectors for specific tube sizes to meet unique project requirements.
• OEM Branding: Laser-engraved logos or part numbers are available for OEM clients, enhancing brand visibility and traceability in large-scale projects.

Production Process & Quality Control

1. Material Selection & Testing: All incoming stainless steel materials undergo spectrometer analysis to verify their chemical composition and ensure they meet our strict quality standards.
2. Precision Machining: The connector is precision-machined using CNC equipment, ensuring tight tolerances and a perfect fit with the specified tube sizes.
3. Surface Treatment: The connector undergoes a multi-stage electroplating process to apply the mirror-chrome finish, followed by a baking cycle to enhance adhesion and durability.
4. Functional Testing: Each connector is tested for fit, finish, and structural integrity before leaving the factory, ensuring it meets our performance specifications.
5. Final Inspection: A dedicated quality control team inspects each unit for dimensional accuracy, surface condition, and functionality, ensuring only the highest quality products are shipped to customers.
