QTY-50 2'' Pneumatic Air Pressure Regulator Pressure Reducing Valve With Gauge

2 year ago

21 0 

11 year

Product details

QTY-50 2'' 1MPa Pneumatic Air Pressure Regulator

QTY series pneumatic regulators (QTY-08, QTY-10, QTY-15, QTY-20, QTY-25, QTY-35, QTY-40, QTY-50, QTY-65, QTY-80), 1/4'' to 3'' port sizes, aluminum body, NBR diaphragm, 0.5 to 10 bar working pressure, 100L/min to 3200L/min high flow, if you have any demands, pls contact us!

Technical Data:

Model No	QTY-08	QTY-10	QTY-15	QTY-20	QTY-25	QTY-35	QTY-40	QTY-50
Port Size	G1/4''	G3/8''	G1/2''	G3/4''	G1''	G1-1/4''	G1-1/2''	G2''
Working Medium	Air
Working Pressure	0.5 to 10 bar
Working Temperature	-5 to 60ºC
Valve Type	With Overflow

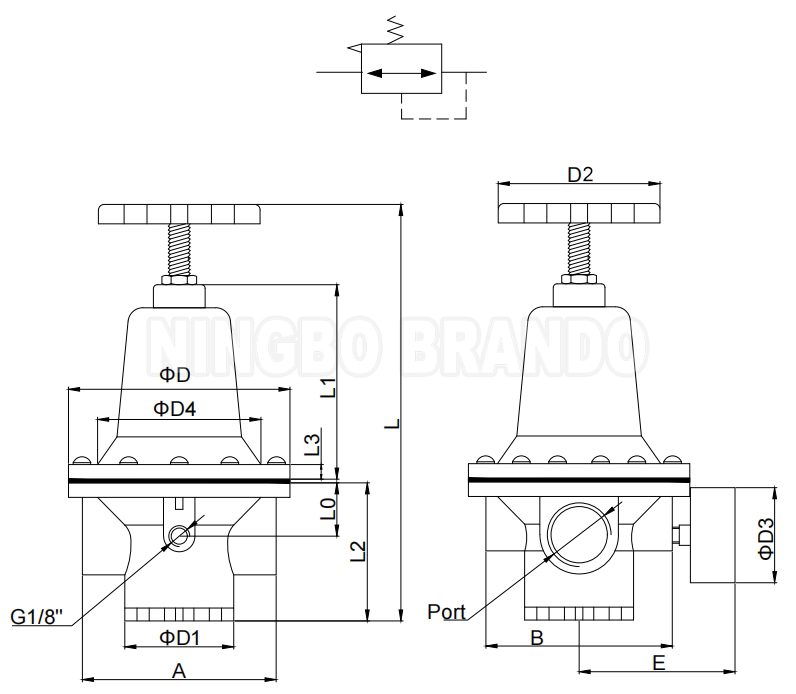

Main Dimension:

Model No	Port	A	B	D	D1	D2	D3	D4	L0	L1	L2	L3	E	L max.
QTY-08	G1/4''	74	64	80	44	60	52	60	20	57	70	8	70	180
QTY-10	G3/8''	74	64	80	44	60	52	60	20	57	70	8	70	180
QTY-15	G1/2''	74	64	80	44	60	52	60	20	57	70	8	70	180
QTY-20	G3/4''	106	105	120	60	97	52	90	30	77	108	9	85	240
QTY-25	G1''	106	105	120	60	97	52	90	30	77	108	9	85	240
QTY-35	G1-1/4''	133	100	120	64	97	52	90	40	110	108	9	95	275
QTY-40	G1-1/2''	133	100	120	64	97	52	90	35	110	108	9	90	275
QTY-50	G2''	133	100	120	64	97	52	90	35	110	108	9	90	275

Flow Rate:

Model No	When the Pressure-Reduction equals 5% of the primary pressure, the air flow rate shall not less than the following value.
	Air Flow Rate (L/min)
	Primary Pressure (bar)
	2.5	4	6.3	8
QTY-08	100	120	160	190
QTY-10	680	770	860	900
QTY-15	720	860	1000	1100
QTY-20	900	1100	1200	1300
QTY-25	1650	1800	1980	2100
QTY-35	1900	2250	2450	2650
QTY-40	2150	4020	2920	3200

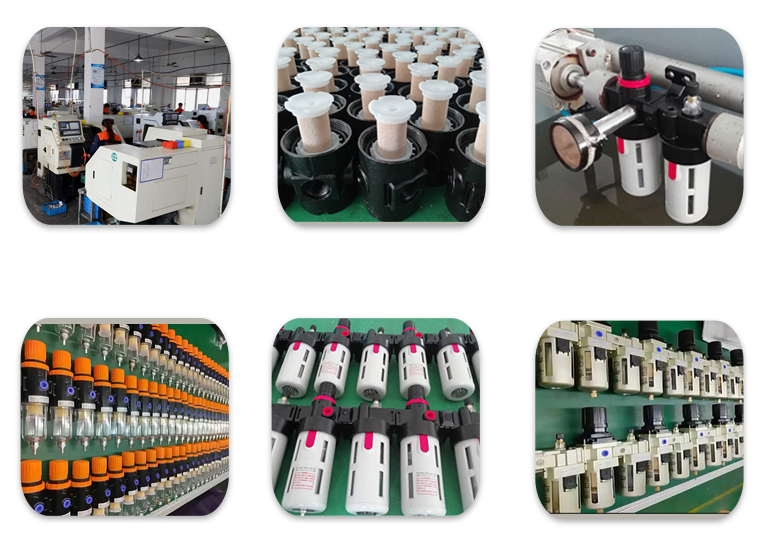

Our Production:

Related Products:


Pneumatic Valve	Pneumatic Cylinder	Pneumatic FRL	Pneumatic Fitting

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
