Product Overview

Electric Cylinder DGRST55 installed with 400W servo motor with controller 12-24V DC, AC 220V. The model can be used for Automation vehicle and medical facility. ST means standard type of Linear Actuator. We devote to design and produce very standard and widely-used model for you to choose; It comes with anti-rotation structure by default; DGRST55 is made of aluminum profile material,square shape, which has beautiful appearance and texture,with more sturdy and durable performance than the general ordinary ones.

High Precision Linear Actuator/Electric cylinder for industrial machinery:

Its maximum rated speed reaches 250mm/s, effective stroke 10-800mm. You can choose Inline type or Parallel type for different usage with regard to its shape. This high-quality actuator offers a very strong alternative to hydraulic solutions.

Dimension

Note: When the stroke is ≥ 300mm, the length L of the cylinder body will increase the guide length

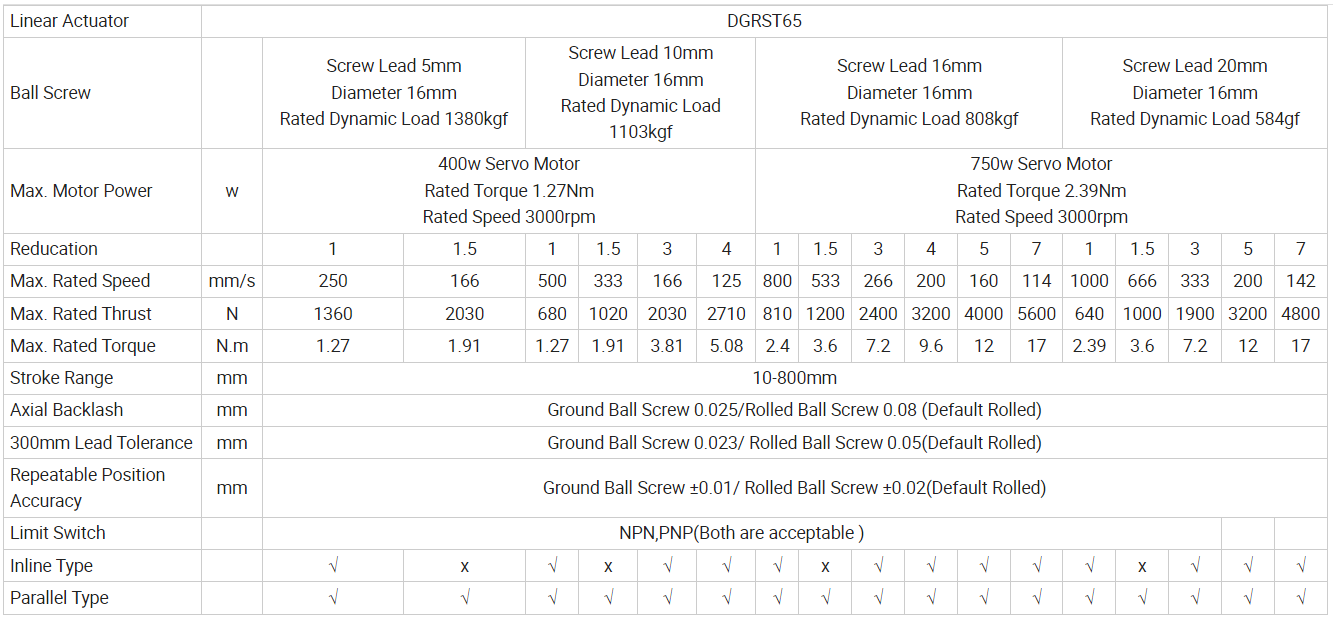

Technical Specification
