What Compressed Air Contain?
Compressed air in industrial applications contains in 1Nmᶟ more than 100 million of polluting articles. Most of these particles are so small in dimension, less than 5 micron, that they cannot be intercepted by the standard intake filters installed in the compressors. Such particles, mixed with water and oil vapour generated during compression, cause the early wear and tear of the appliances and consequently they are the cause of expensive interruptions of the production and remarkable increase maintain.
Selection right air filters will allow the best choice of the suitable equipment according to the quantity of air to be treated and the necessary filtration degree in order to increase and improve the performances of the whole system.

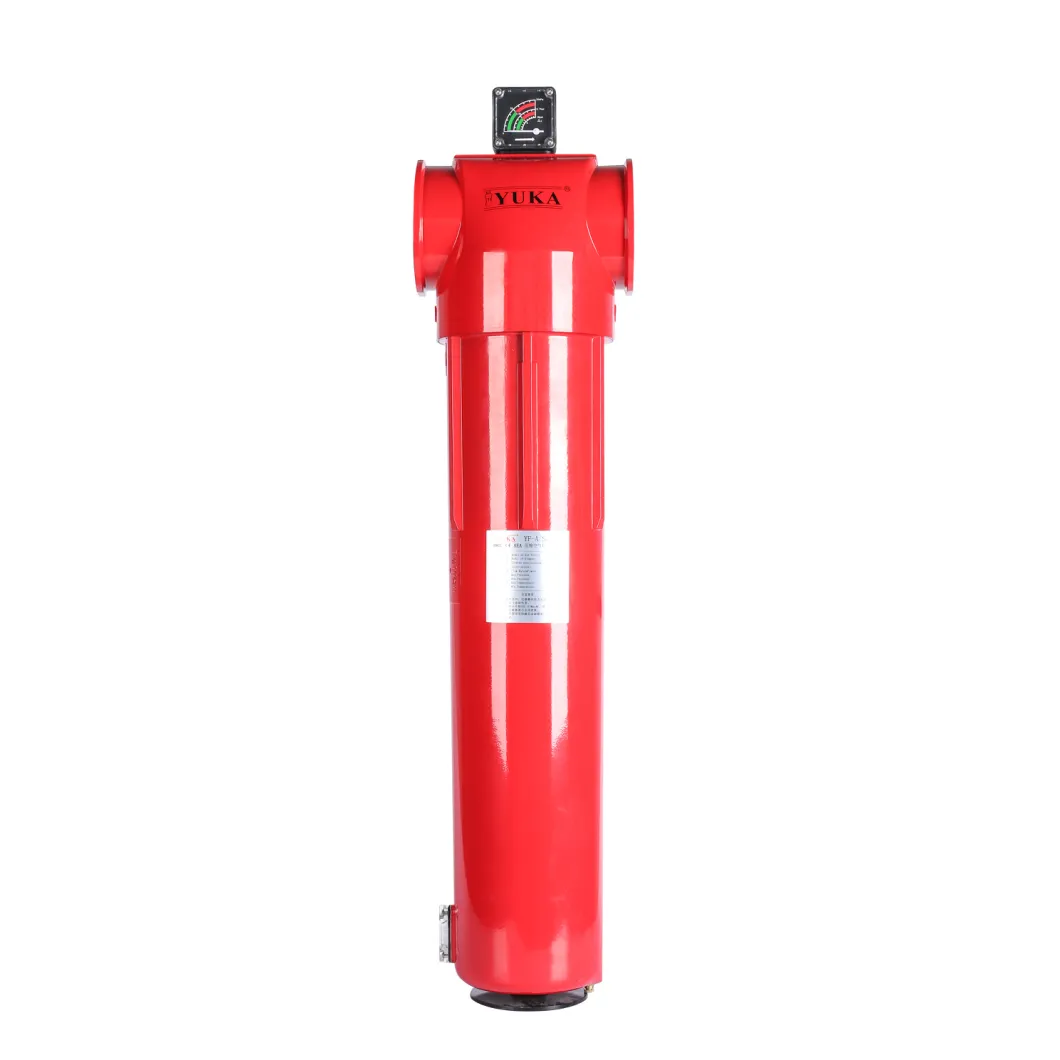

Why Recommend YUKA Compressed Air Filter?
Material: Grade A Aluminum Alloy with die-casting technology
Filter Housing serve life: 15 years
Filter Housing with Corrosion Treatment : Inside and outside
Housing and filter with 100% air tightness test

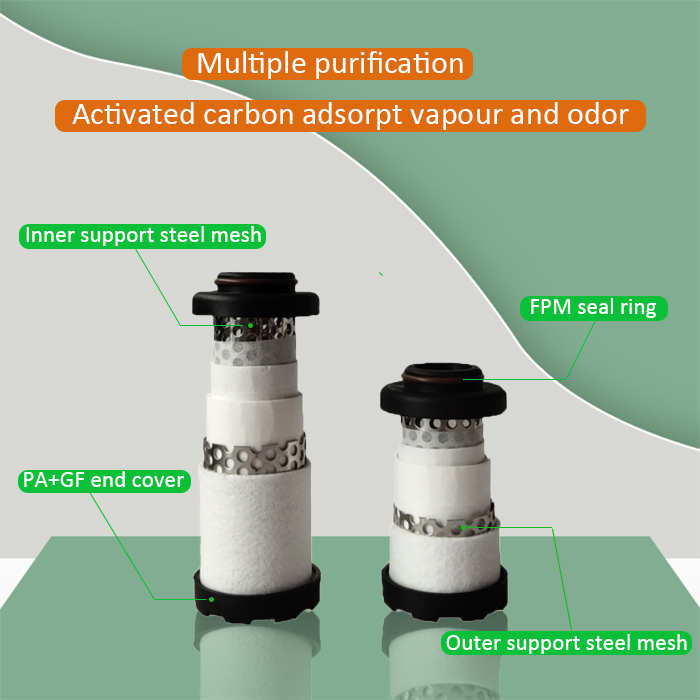

Element material: Fiber glass, element server life: 6000~8000 hours
Filtration Efficiency: 99.99%
With 7 Grades Filter Element
PF
AO
AA
AX
ACS
AR
AAR
As a primary filter, particles whose diameter more than 5μm can be remove,the maxi. residual oil content is negligible
High efficiency general protection, dust particles, water mist & oil mist whose diameter more than 1μm can be removed, the residual content of oil mist does not exceed 0.6mg/m³ (21ºC),1ppm(w).
High effiency oil remove filtration, dust particles, water mist and oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.01mg/m³(21ºC),0.01ppm(w)
Ultra-efficient filtration, dust particles, water mist&oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.001mg/m³(21ºC),0.001ppm(w)
Dust particles whose diameter more than 0.01μm, oil vapor &odor can be removed, the maxi. resident content of oil vapor does not exceed 0.003mg/m³(21ºC),0.003ppm(w)
Dust particles whose diameter more than 1μm can be removed
Dust particles whose diameter more than 0.01μm can be removed
International test and measurement standard ISO12500
>ISO 12500 has made clear a general test and definition method for the compressed air filter manufacturers. The main performance
parameters are the air inlet oil content and particles size distribution of the solid particles.
>ISO12500-1 specifies the test requirements for the filtration performance of oil aerosol in the coalescing filter.
>ISO12500-2 specifies the test requirements of adsorption filters for the removal performance of steam adsorption.
>ISO12500-3 specifies the requirements for removal of particulate matter from solid pullutants.
Product are test with the international advanced testing equipment based on standard ISO12500, Which is equivalent to the standard ISO8573.1-2010 quality standard, and provide filter performance test report.
|
Filtration Grade |
PF | AO | AA | AX | ACS | AR | AAR |
|
Size of solid particles(ISO12500-3) |
5μm | 1μm | 0.01μm | 0.01μm | - | 1μm | 0.01μm |
|
Filtration performance of solid particles(ISO12500-3) |
- | 99.999+% |
99.999+% |
99.999+% |
99.999+% |
99.999+% |
99.999+% |
|
Filtration performance of oil(ISO12500-1) |
50% | 80+% | 99.9+% | 99.99+% | - | - | - |
|
Residual oil content(ISO12500-1) |
5mg/m³ | 0.6mg/m³ | <0.01mg/m³ |
<0.001mg/m³ |
<0.004mg/m³ |
- | - |
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g).
For application in other working pressure, please refer to the correction factors.
m³/min
Model
Pipe size
Flow Rate
Dimenstion (mm)
L/S
scfm
W(Width)
H(Height)
A
B
C(clearance for housing)
YF010
RC1/2"
16.7
1.0
35.3
96
79
261
29
198
118
YF020
RC3/4"
25.0
1.5
53.0
96
79
261
29
198
118
YF030
RC1/2"
30.3
1.8
63.6
96
79
295
29
233
153
YF040
RC3/4"
33.3
2.0
71.0
96
79
295
29
233
153
YF060
RC3/4"
60.0
3.6
127.0
138
111
403
37
296
208
YF070
RC1"
83.3
5.0
177.0
138
111
503
37
396
303
YF080
RC1"
125.0
7.5
265.0
138
111
503
37
396
303
YF090
RC1-1/2"
166.7
10.0
353.1
174
142
736
58
607
469
YF100
RC2"
216.7
13.0
459.0
174
142
736
58
607
469
YF110
RC2-1/2"
283.3
17.0
600.0
174
142
1016
58
887
794
YF120
RC2"
316.7
19.0
671.0
174
142
1016
58
887
794
YF130
RC2-1/2"
416.7
25.0
883.0
220
184
793
74
649
514
YF140
RC2-1/2"
466.7
28.0
989.0
220
184
793
74
649
514
YF150
RC3"
683.3
41.0
1448.0
220
184
1050
74
906
764
YF160
RC3"
800.0
48.0
1695.0
220
184
1050
74
906
764
Technical requirements
Maximum operating pressure: 10 barg Operating temperature: 1.5°C~80°C.
Pressure
Barg
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Psig
15
29
44
59
73
87
100
116
131
145
160
174
189
203
219
232
Correction
0.38
0.53
0.65
0.76
0.85
0.93
1.00
1.07
1.13
1.19
1.23
1.31
1.36
1.41
1.46
1.51
Success Cases
YUKA service
a. Providing professional consultation, technical support and special solutions
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty
c. Providing perfect after sales service and warranty
Q:Why choose us?
a. 22 years' practical experiences in R&D and manufacturing Compressed air treatment;
b. Founder of Compressed Air Nation Standard GB/T30475.1-2013 and GB/T30475.2-2013;
c. ISO 9001:2015, CE and product follow ISO8573-1;
d. With Germany Imported high efficiency filtration Test Instrument;
e.All goods had been 100% test before dispatched.
Frequently Asked Questions:
Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.
Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.
Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.
Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.
Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
