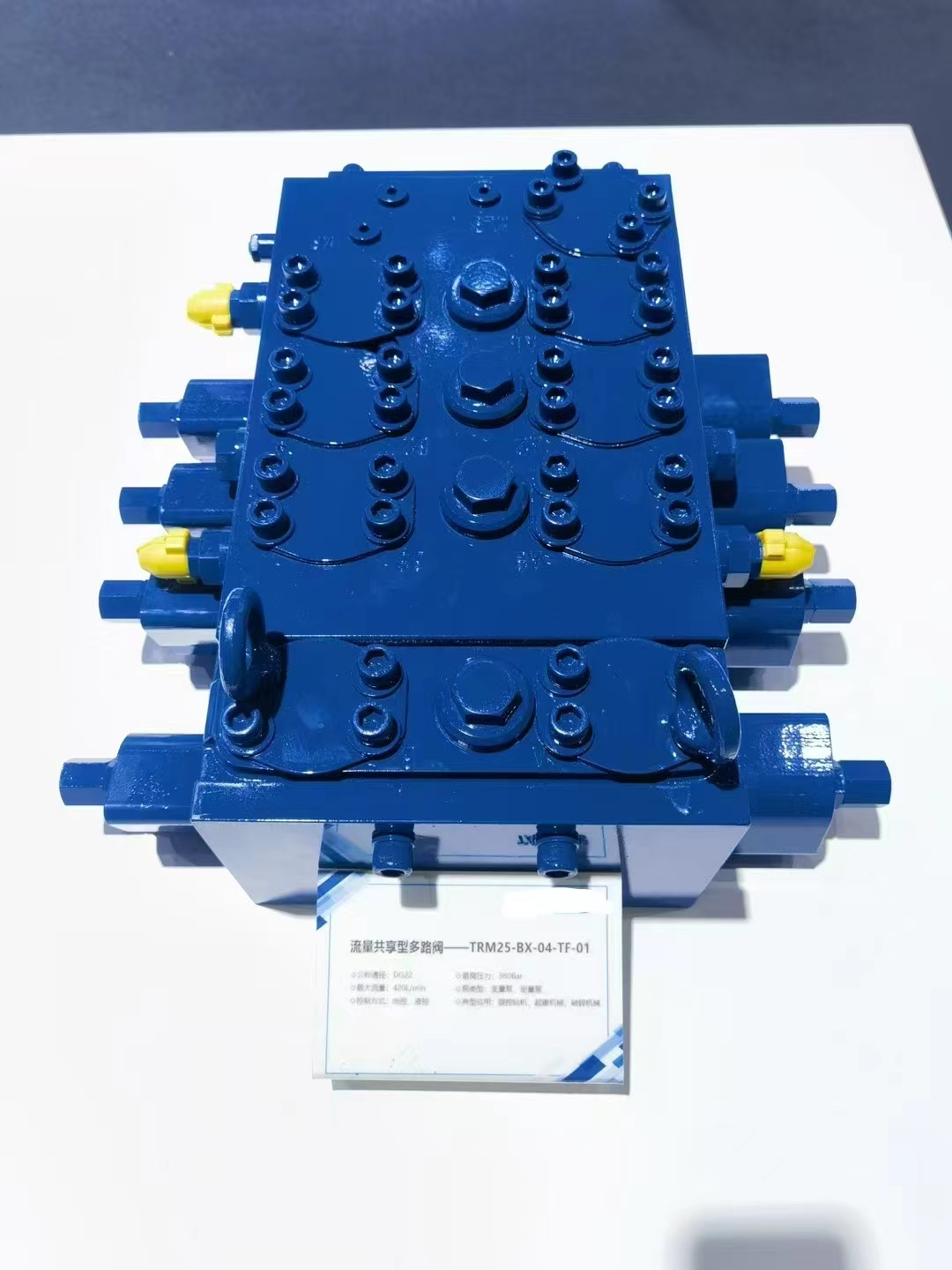

Flow-sharing multi-way valve TRM25-BX-04-TF-01

10 month ago

26 0 

4 year

Product details

Flow-sharing Multi-way Valve TRM25-BX-04-TF-01 Detailed Description

I. Basic Overview

The multi-way valve with the model number TRM25-BX-04-TF-01 features flow-sharing functionality and is widely used in construction machinery, agricultural machinery, mining machinery, and other fields for achieving flow distribution and control among multiple actuators.

II. Structural Characteristics

1. Flow-sharing Design: This valve employs flow-sharing technology to ensure stable flow distribution among multiple actuators when they operate simultaneously, avoiding efficiency reduction caused by flow competition.

2. Multi-way Control: It has multiple working oil ports that can simultaneously control multiple actuators, such as cylinders and motors.

3. Pilot Control: It is usually equipped with a pilot control circuit, which uses a small flow of pilot oil to control the opening and closing of the main valve spool for precise control.

4. Electro-proportional Control(if applicable): Some models may support electro-proportional control, adjusting the valve spool opening through an electrical signal to achieve stepless flow regulation.

III. Functional Characteristics

1. High Efficiency and Energy Saving: Flow-sharing technology reduces unnecessary energy loss and improves the overall efficiency of the system.

2. Stability and Reliability: It adopts advanced valve spool structures and sealing materials to ensure the valve's stability and reliability.

3. Flexible Combination: Different functional modules can be flexibly combined according to actual needs to meet diverse application requirements.

4. Easy Maintenance: The structural design is reasonable, facilitating disassembly and repair, and reducing maintenance costs.

IV. Application Fields

Hydraulic valve are applied in various hydraulic system.

This multi-way valve is suitable for various hydraulic systems requiring precise flow control and distribution, such as excavators, loaders, cranes, drilling rigs, and other construction machinery, as well as agricultural machinery and mining machinery.
