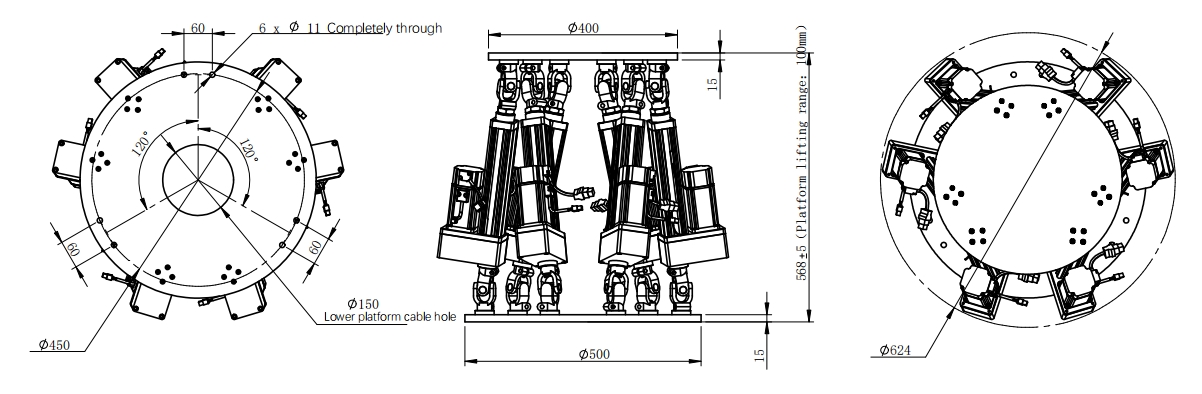

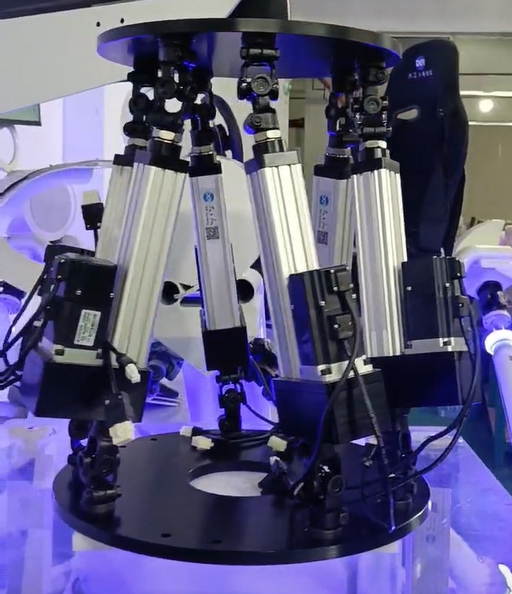

6DOF compare
7 month ago
| Linear Actuator | DGRHT-63 | ||||||||
| Ball Screw | Screw lead(mm) | 5 | 10 | 20 | |||||
| Diameter(mm) | 20 | 20 | 20 | ||||||
| Rated dynamic load(kgf) | 1551 | 1516 | 1118 | ||||||
| Max.motor power | / | 2000W servo motor | |||||||
| Rated Torque: 9.55Nm | |||||||||
| Rated speed: 2000rpm | |||||||||
| Speed reduction | / | 1 | 1 | 1.5 | 1 | 1.5 | 3 | 4 | |
| Max.rated speed | mm/s | 166 | 333 | 222 | 833 | 555 | 277 | 208 | |
| Max.rated thrust | KN | 10.2 | 5.1 | 7.6 | 2.04 | 3.06 | 6.12 | 8.16 | |
| Max.rated torque | N.m | 9.55 | 9.55 | 14.32 | 9.55 | 14.3 | 28.7 | 38.2 | |
| Stroke range | mm | 10-1500 | |||||||
| Axial backlash | mm | Ground ball screw | 0.025 | ||||||
| Rolled ball screw | 0.08(default rolled) | ||||||||
| 300mm lead tolerance | mm | Ground ball screw | 0.023 | ||||||
| Rolled ball screw | 0.05(default rolled) | ||||||||
| Repeatable position accuracy | mm | Ground ball screw | ±0.01 | ||||||
| Rolled ball screw | ±0.02(defautl rolled) | ||||||||
| Limit Swith | / | NPN, PNP | |||||||
| Inline type | / | √ | √ | × | √ | × | √ | √ | |
| Parallel type | / | √ | √ | √ | √ | √ | √ | √ | |
1.If you need drawings and life of ball screw, please consult customer service for details.
2.If the maximum stroke exceeds 500mm,it is recommended to add a guide device.
3.The Parameters may be affected by different brands of motors,please consult customer service for details
