ND-1 portable tamper
7 month ago
Portable Rail Tamping Machine
PRODUCT FEATURES

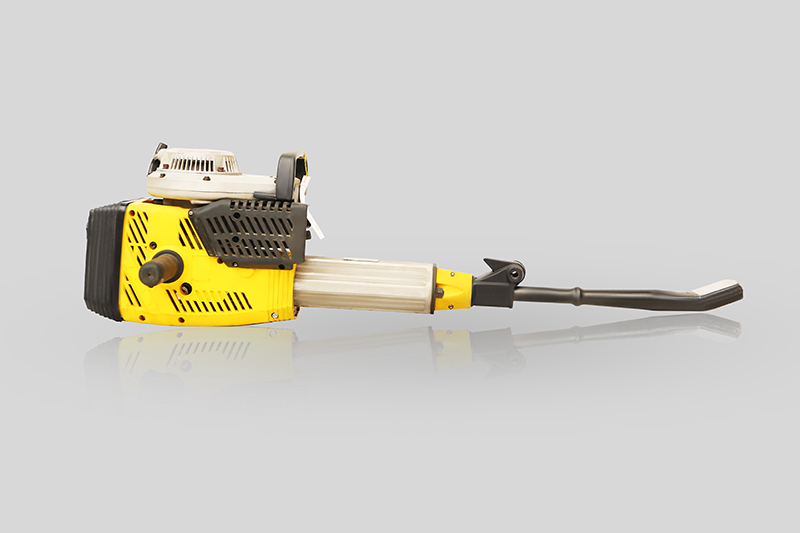

ND-1 portable Railway Tamping Equipment is a special machine for ballast tamping on railway lines and turmouts. Choose high-vibration, high-power gasoline engine as power, with high output power and stable. performance. The air compression hammer impact pick is used to impact the ballat. The impact force is large and the tamping effect is good. The whole machine is smal in size, ight. in. weight, and convenient. to go up and down, which can ffectively guarantee driving safety during operation.
Hydraulic Railway Tamping Machine Features
Compact and Mobile: Small footprint and lightweight design make transportation and operation easy, even in narrow track sections, tunnels, or mountainous regions.
High-Efficiency Tamping: Delivers powerful vibration and impact force to compact ballast quickly and effectively, enhancing sleeper alignment and stability.
Durable Construction: Built with high-grade steel and wear-resistant tamping rods, suitable for long-term use in demanding outdoor conditions.
User-Friendly Controls: Simple operating system allows for quick training and minimal manpower requirements.
Engine Versatility: Available in both gasoline and diesel engine options to match regional fuel preferences and operational environments.
Low Maintenance: Designed with minimal moving parts and quick-change tamping heads, reducing maintenance downtime.
TECHNICAL DATA
| Engine | Two- stroke petrol engine : 1.6kW |
| Rated RPM | 4400 r.p.m |
| Impact energy | 30~40 J |
| Impact frequency | 22 Hz |
| Fuel tank volume | 0.95 L |
| Dimensions | 840x470x350 mm |
| Weight | 25 kg |
