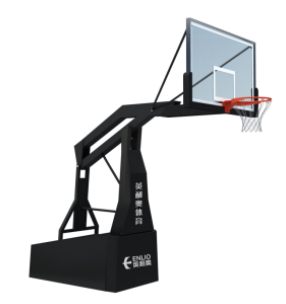

Basketball frame box dimensions: 2.2 x 1.1 meters (including cover 2.35 x 1.3), extension arm 2.45 meters (customizable 2.35) (cover position calculation 2.35 meters). Motor power 2.2KW.
The base of the box is made of 4mm steel plate and welded together on a special edge-folding machine. The upper cover plate is made of 3mm steel plate.
The basketball frame columns are made by welding 180mm x 120mm x 3mm, 150mm x 150mm x 2.75mm, and 150mm x 100mm x 2.75mm square tubes;
The extension arm is made by welding 150mm * 150mm * 2.75mm square tubes. The connection parts between the rotating part of the basketball frame column and the head of the extension arm are made of high-quality precision cast steel.
The rear pull rod of the basketball frame is made by welding 80mm * 80mm * 2.75mm square tubes and 180mm * 80mm * 3mm precision pulled square tubes. The upper pull rod is made of a 48mm diameter, 3mm thick round tube.
The front column, base, and extension arm of the basketball frame are equipped with special covers, which can effectively protect athletes from impacts.

Product structure principle: The electric-hydraulic basketball stand adopts a micro-computer control system, equipped with a basketball stand lifting system, wheel extension mechanism, electrical equipment, and hydraulic system. When in use, the motor is connected to a 220V, 50Hz single-phase power supply to start, which drives the oil pump. Through the micro-computer control system, the "function" is converted, and the oil cylinder then undergoes extension and contraction movements, thereby causing the basketball stand columns to rise and fall.
Backboard specifications: 1800x1050 (mm), equipped with internationally standard high-strength safety glass backboards (12mm thick), featuring high transparency, good weather resistance, anti-aging, corrosion resistance, and non-fading characteristics. The basketball board glass meets the 3C certification standard, and on the lower side of the backboard, there is a high-grade polyurethane protective rubber strip, which can effectively protect athletes from injury when performing slam dunks. New national standard basketball basket, the basket is made of φ20 solid round steel, and the basket has good bending resistance. The spring is made of thickened high-grade spring steel, meeting international competition standards.
