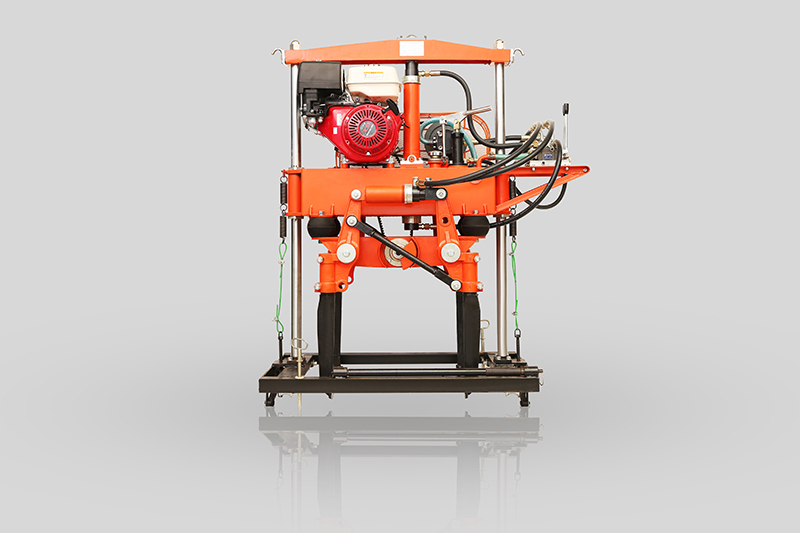

YD-22 Hydraulic rail tamping machine
4 month ago
Hydraulic Railway Tamping Machine
PRODUCT FEATURES
YD-22 hydraulic tamping machine is a kind of professional machinery used for railway line ballast tamping maintenance except for turnouts. Railway Tamping Equipment can be operated with train inervail time, without closing sections. It is equipped with three power modes. They are petrol, diesel and electric.
BENIFITS
● Engine types: Honda GX390 petrol engine or SF 190 diesel engine or electic engine.
● It is sitbl for the tamping operation in the new constuction of ordinary railway lines and the large-scaie or medium-scale railway line maintenance
● It can complete the tamping operation of various types of concret seepers and wooden sleepers
● Equipped with automatic rail clamping device
● Equppped wih the f-tac walkin frame, the machine can be removed off at any place and any time
TECHNICAL DATA
| Engine | HONDA GX390 petrol engine or SF 190 diesel engine |
| Power | 6.6 kW |
| Vibration frequency | 60~70 Hz |
| Exciting force | ≥22kN |
| Working pressure | 5.0 MPa |
| Clamping force | ≥7.4 kN |
| Insertion force | ≥15.5 kN |
| Working efficiency | ≥260 slepers/hour |
| Tamping insertion depth | 90~120mm under seepers |
| Dimensions | 1420x660x1380 mm |
| Weight | 360 kg |
