Garbage Truck(Hook Loader)

Product Brief Introduction

The Hook Loader detachable garbage truck adopts a fully enclosed dustbin, which can be lifted and unloaded from the chassis. With simple structure, convenient and flexible operation, safe and reliable, high degree of mechanization characteristics, so that it has a high working efficiency, at the same time can prevent misoperation, avoid accidents, and can save manpower, reduce the labor intensity of the staff. Because of its special structure and working mode, it can effectively avoid secondary pollution and noise pollution in the process of loading and transportation, which is very beneficial to the protection of the environment. It is a new type of garbage collection and transportation vehicle

Product Performance And Characteristics

The dustbin matched by the carriage detachable garbage truck is the mobile horizontal compression dustbin, equipped with four casters and locking device at the bottom, and a lifting ring at the front, which can be lifted or unloaded from the car body.

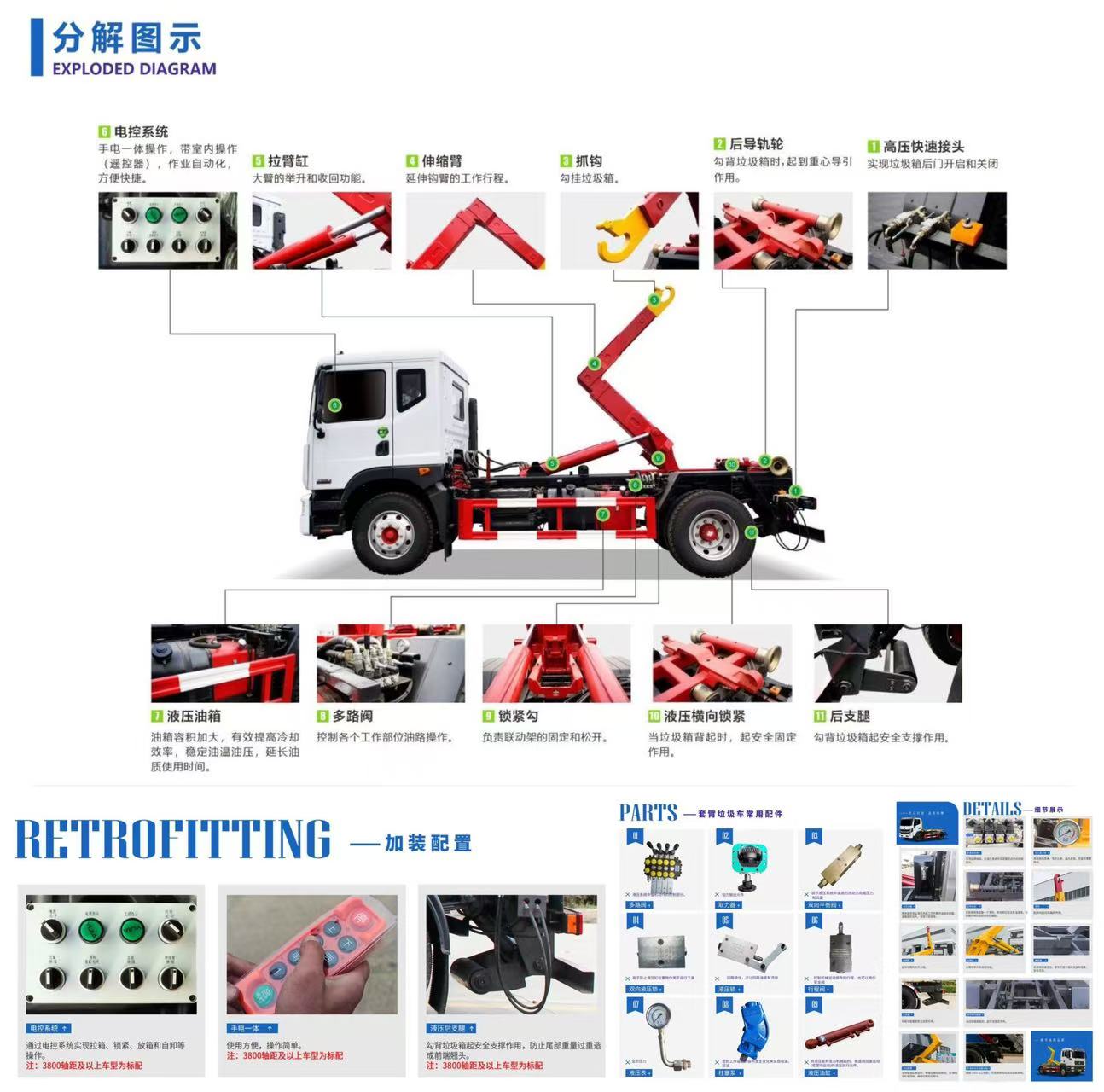

The drawhook is installed on the chassis of the car and used for lifting, unloading from the dustbin or dumping garbage.  It is mainly composed of hook arm, hook arm frame, auxiliary beam and hydraulic cylinder.  The secondary beam is mainly used to fix and support the dustbin with the chassis, and acts as the installation connecting frame of its other parts.  Pull arm, hook arm is mainly used for lifting, unloading from the dustbin and dumping garbage.  The hydraulic cylinder is the driving part of each action.

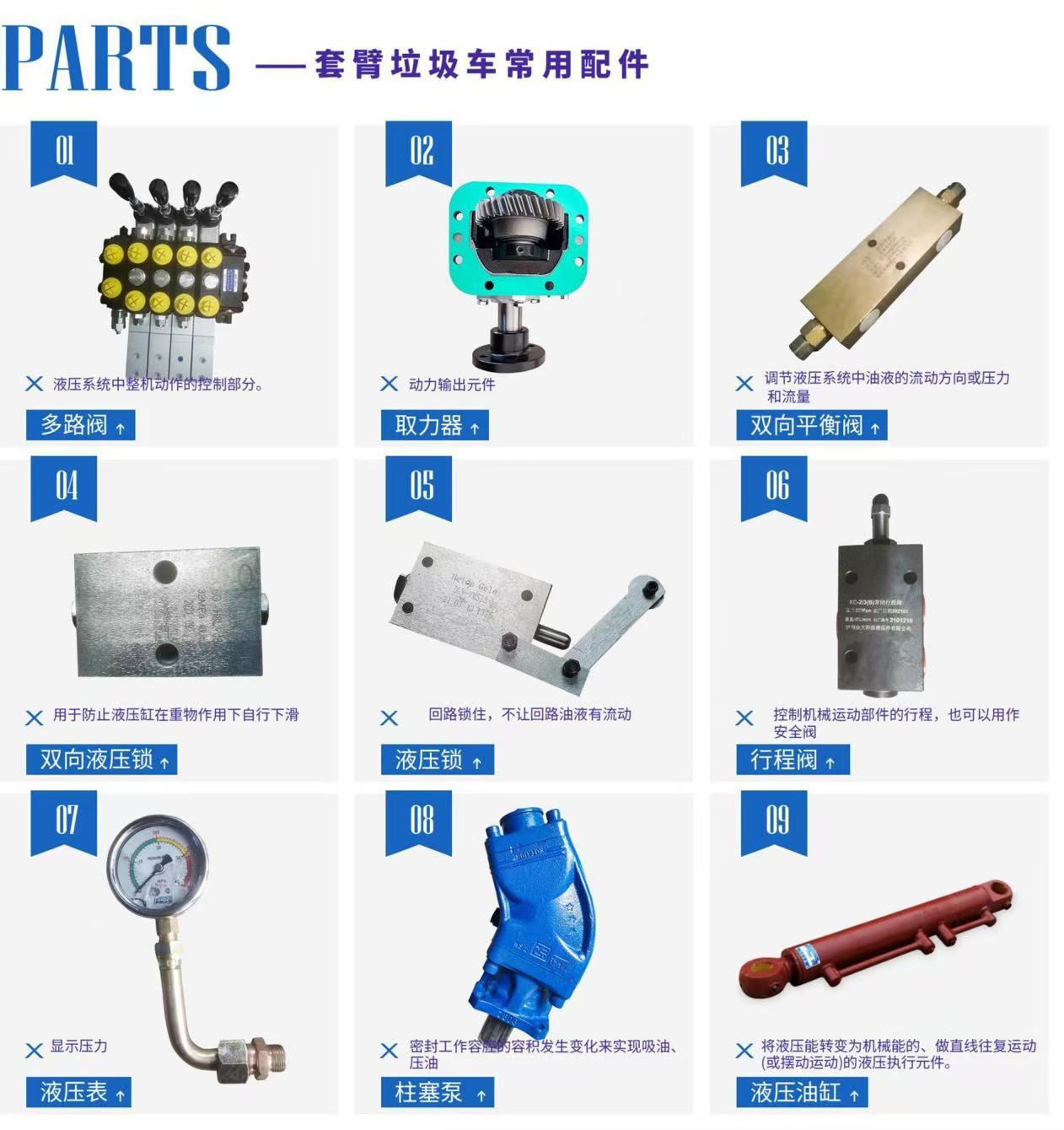

A balance valve is installed in the hook arm control oil path, so that the lifting force of the two cylinders is uniform and the movement speed of the two cylinders is synchronized.  At the same time, the motion can be kept in any position without sinking, so that the motion is reliable and safe.
