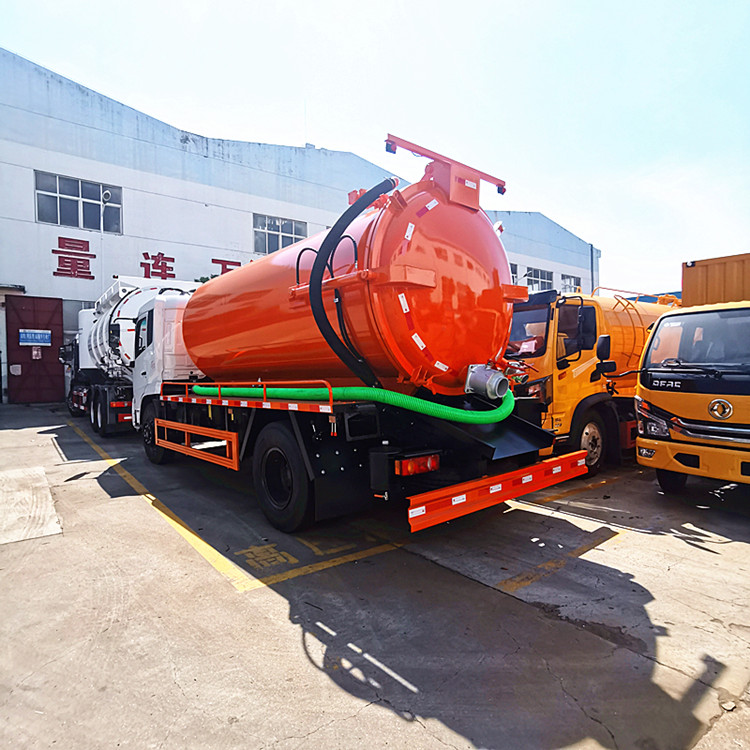

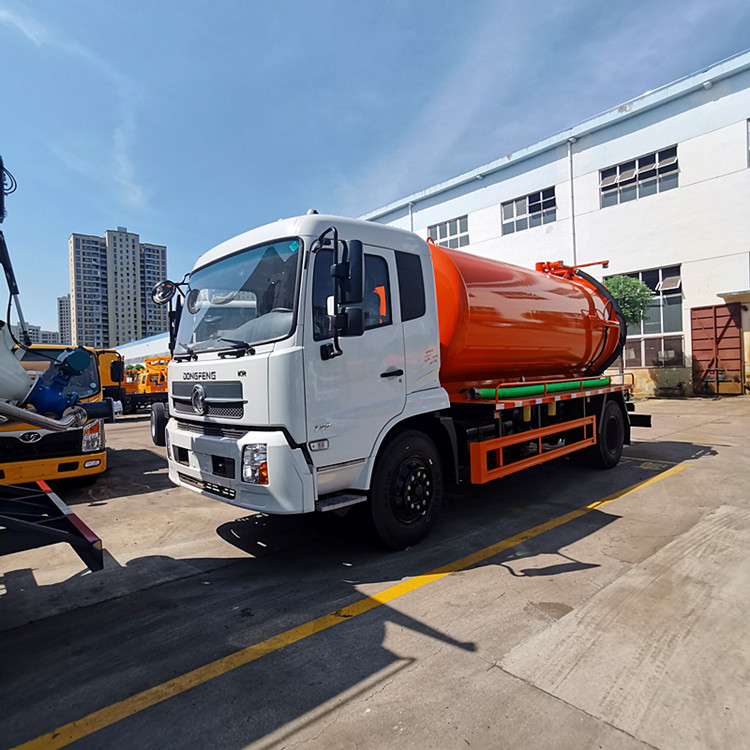

Sewage Suction Truck

Main Brands: DONGFENG, HOWO ,ISUZU, SHACMAN, BEIBEN, FAW, FOTON, JAC, JMC

HYUNDAIH, HINO,IVECO,HONYAN,GENLYON

Driving Type:  4x2,4x4,6x2,6x4.6x6,8x4,8x8

Capacity: 1-60T

Steering Wheel: Left Hand Drive and Right Hand Drive

Suction truck is a new type of sanitation vehicle that collects, transfers and clean up transportation sludge and sewage to avoid secondary pollution. Suction truck can self-suction and self-discharge, fast working speed, large capacity, convenient transportation, suitable for collecting and transporting feces, mud, crude oil and other liquid substances. The suction truck adopts the domestic technology leading suction vacuum pump, large suction, long suction range, especially suitable for suction, loading and discharge of sludge in the sewer, especially can suck sewage mud, silt, stone, brick and other large objects.

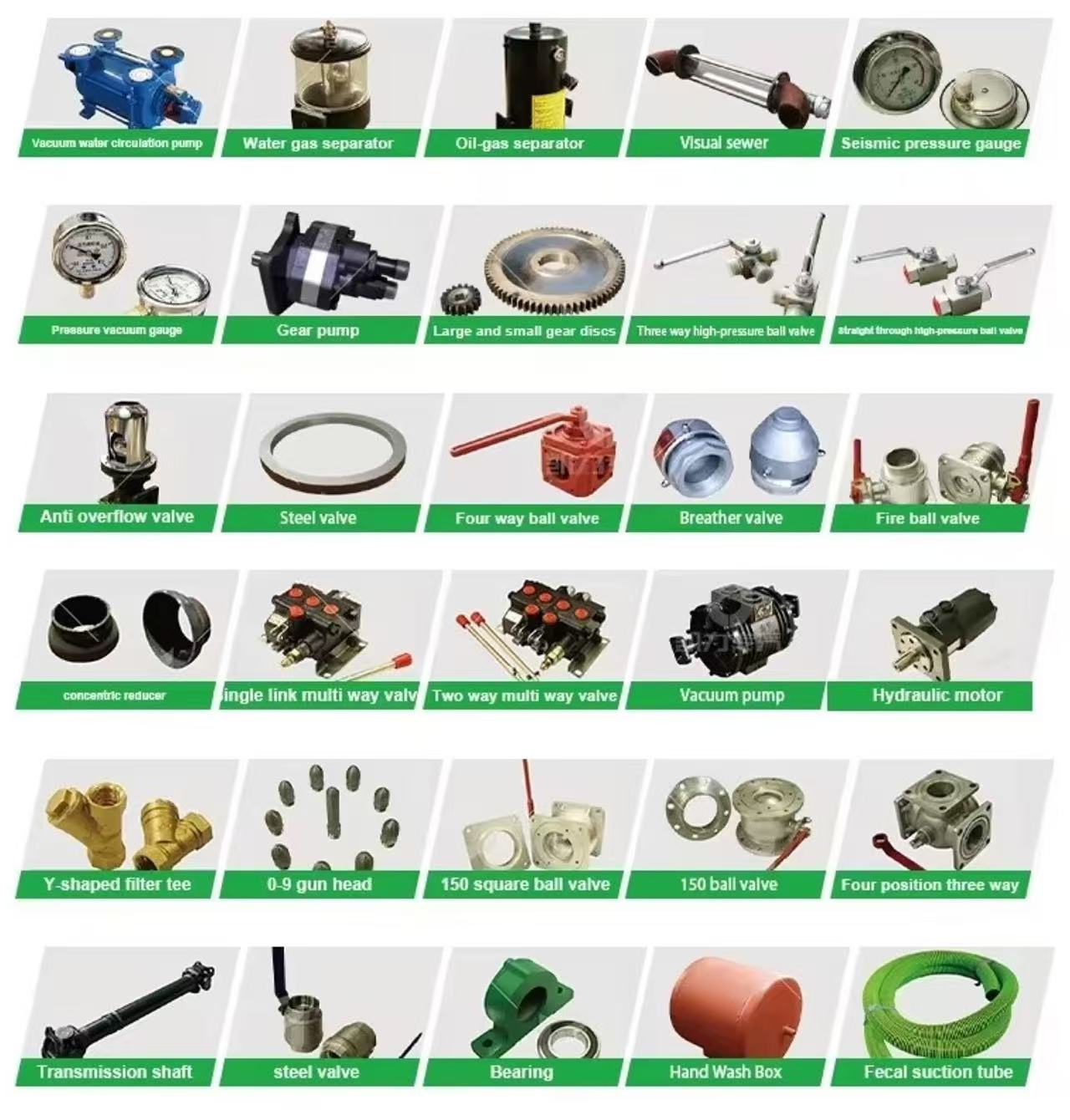

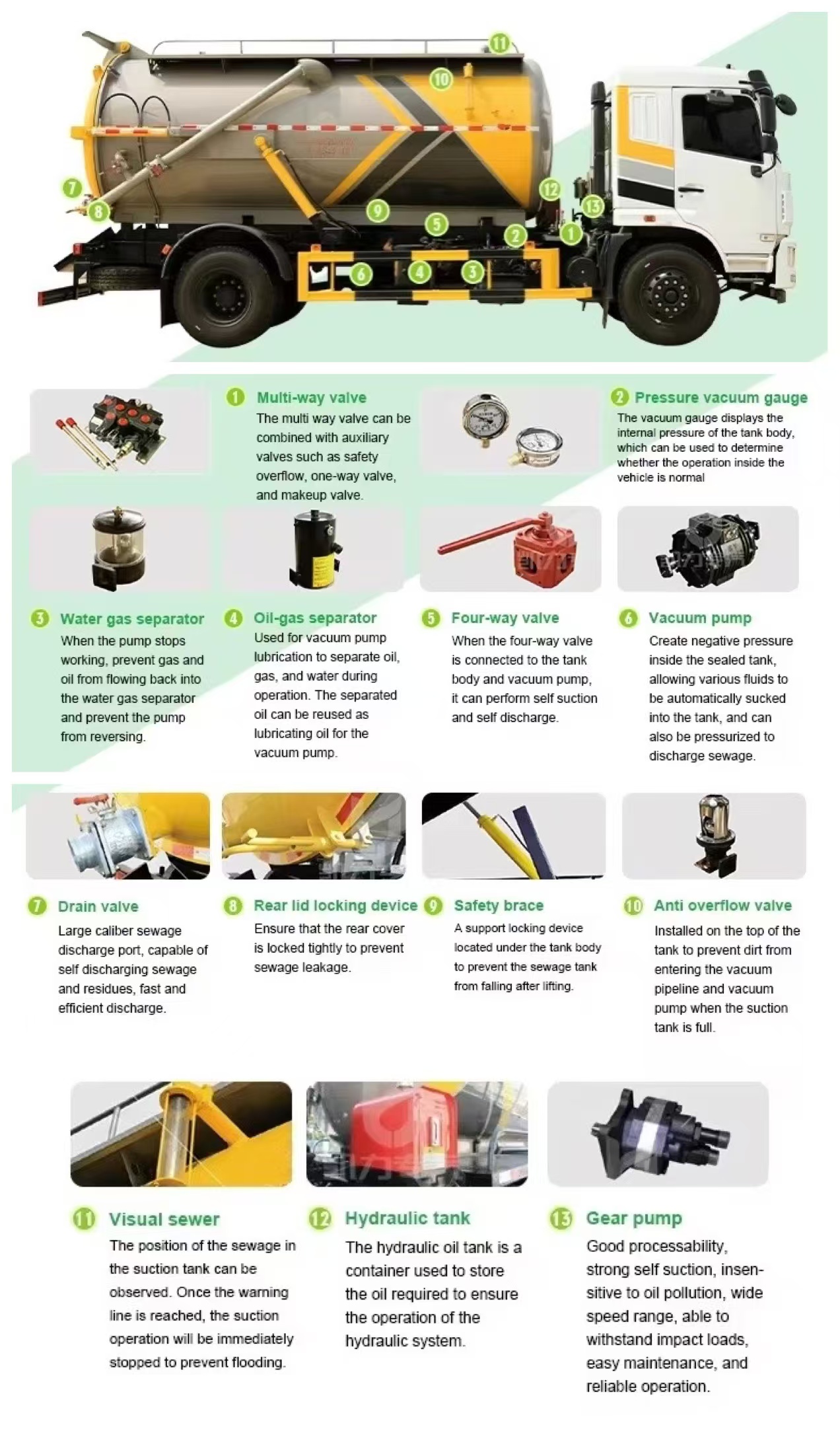

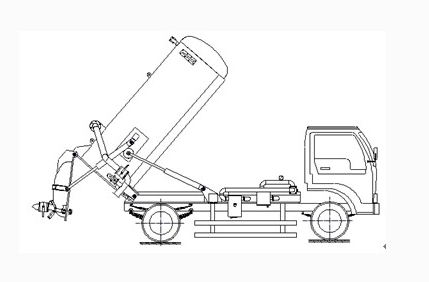

1. Function: The special part of the suction truck is composed of force extractor, transmission shaft, vacuum suction pump, pressure tank body, hydraulic part, pipe network system, vacuum pressure gauge, fecal window, hand washing device, etc., equipped with high-power vacuum suction pump and high-quality hydraulic system, the tank head is die-cast, the tank body can be opened back, and the double top self-unloading. The dirt in the tank can be dumped directly through the back cover, which has the characteristics of high vacuum (greater suction than the suction truck), large tonnage, high efficiency and wider use;

2. Working principle: The vehicle starts, hangs the force extractor, drives the suction pump, the suction pump operates to extract the air in the tank, because the suction hose is always immersed in the liquid level, the air in the tank is pumped, because it is not supplemented and becoming thinner, resulting in the tank pressure is lower than the atmospheric pressure, the sewage liquid is used under the atmospheric pressure, through the suction hose into the tank;
