Wholesale Aramid Braided Packing For Auto Water Pump Seal1

3 year ago

3 0 

3 year

Product details

Product introduction

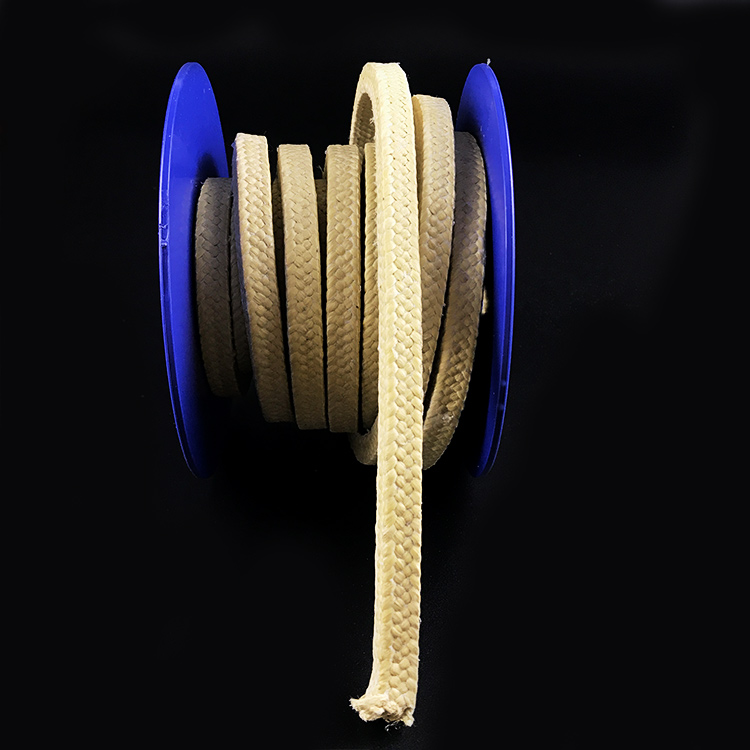

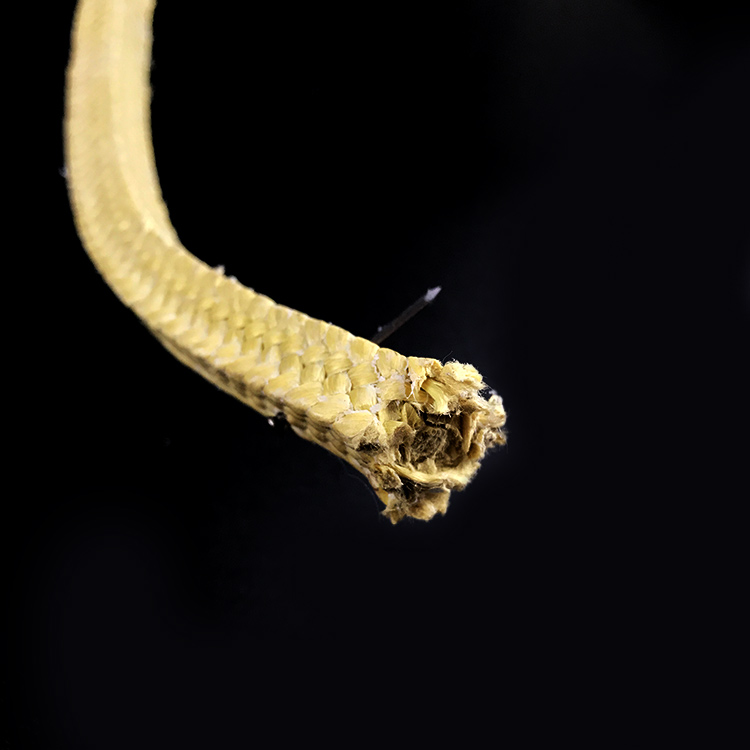

Aramid Packing,it is Braided from high quality Dupont Aramid/Kevlar fiber with PTFE Impregnation and lubricant additive. Extremely hard wearing. It shows good chemical resistance, high elasticity and very low cold flow. It is wear resistant but may damage the shaft if not used properly. A minimum shaft hardness of 60HRC is therefore recommended. Compared with other kinds of packing, it can resist more severe media and higher pressure. The packing is also lubricated with a silicone-based compound for quick and easy break-in.

Gauge Glass, Level Gauge, Quartz Glass, Reflex Gauge Glass, Sight Glass

Product Data Sheet

	Rotating	Reciprocating	Static
Pressure	25 bar	100 bar	200 bar
Shaft speed	25 m/s	1.5 m/s
Temperature	－100~+280°C
PH range	2~12
Density	1.4g/cm3

It is a universal packing which can be used for pumps in all types of industry such as chemical, petrochemical, pharmaceutical, food and sugar industries, pulp and paper mills, power stations etc. It is also a durable packing able to withstand granular and abrasive applications, it is recommended for serve in superheated steam, solvents, liquefied gases, sugar syrups and other abrasive fluids. For hot water applications it can be used un-cooled up to 160°C.

It can be used as stand-alone packing also combined with others as anti-extrusion ring.

Details Images
