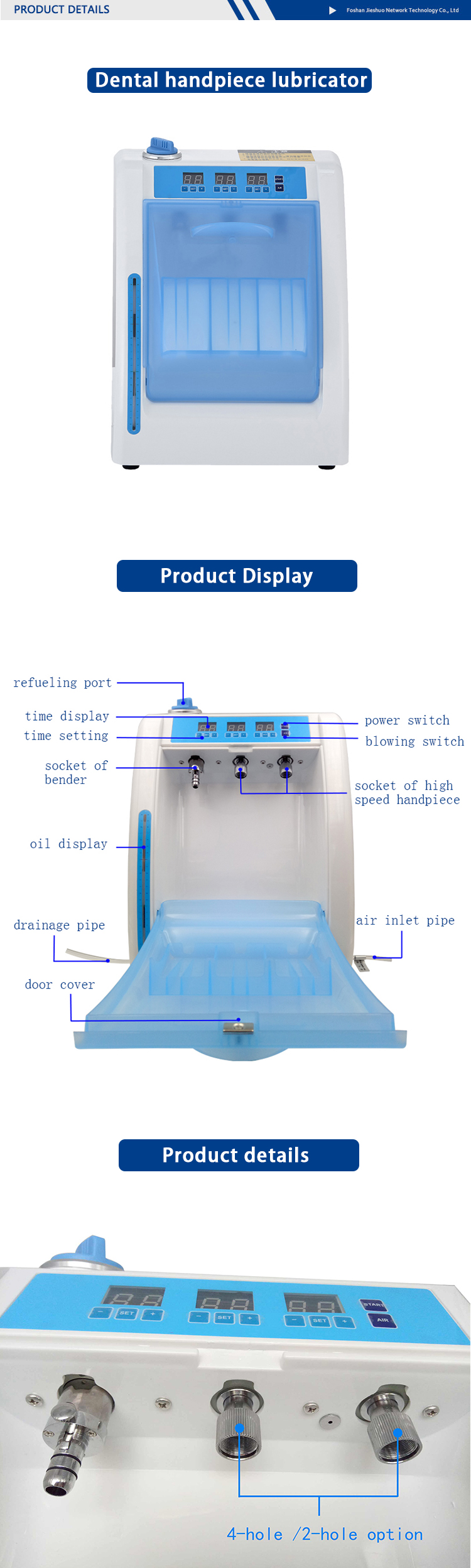

Professional Lubricators Device Foshan Dental Handpiece Lubricating Machine1

For 2 high-speed handpieces and 1 low-speed handpiece.

Advantages

◆ Dental handpiece cleaning lubrication system.

◆ Automatic handpiece maintenance unit.

◆ Specialized For High Speed/Contra angle/Straight Nose.

◆ 3 dental handpieces can be oiled and cleaned at the same time.

◆ The use of dental handpiece can improve the maintenance drive 40% of life.

◆ This machine can clean and oil the parallel shank or bending handpiece accurately and easily at any time.

◆ It have the character of high security, easily operating.

◆ Swing pinion can effectively clean and oil the dental handpiece from different angles.

◆ Having completed the procedure of the cleaning and oiling,the remained oil can be cleared by pressing the air key.

◆ Different handpieces can be oiled by choosing the short mode, The long mode, and the extra-long mode.

Parameters

(1) Supply Voltage: 2 version A: AC 220V B: AC 110V

(2) Power: 40W

(3) Air Pressure: 4kg / c㎡-8kg /c㎡;

(4) Working Pressure:2.2kg /c㎡-2.5kg / c㎡;

(5) Volume: 300ml

(6) Blower paranter: A.voltage rating: AC 12V B.power: 6W C.rotating speed: 3000rpm/min

(7) Working Temperature: 5contigrade-40contigrade

(8) Net weight: 7KG

(9) Net size: 300x230x360 (mm)

(10) Carton size:335x260x400 (mm)

Usage

First: Attaching Handpiece

(1)Attaching air turbine handpiece(according to ISO9168)

● Remove the bur from the handpiece.

● Open the door of the unit, attach the handpiece to the joint ,and tighten the nut securely

● Close the door securely.

(2)Attaching E-type handpiece(according to ISO3964 type) Straight Handpiece

● For the straight handpiece, attach the supplied test bur and lock it

● Open the door of the unit,and attach the handpiece to the E-type joint until it locks.

● Close the door securely. Contra Angle Handpiece

● Remove the bur from the handpiece.

● Open the door of the unit,and attach the handpiece to the E-type joint until it locks.

● For the contra angle handpiece, point the bur insertion hole toward the door side and close the door securely.

Second: Cleaning and Lubricating Third: Removing Handpiece
