Custom 90 Degree Angle Screw Locking Panel Mount USB 3.0 A Male to Type C Cable1

2 year ago

10 0 

2 year

Product details

Product Description

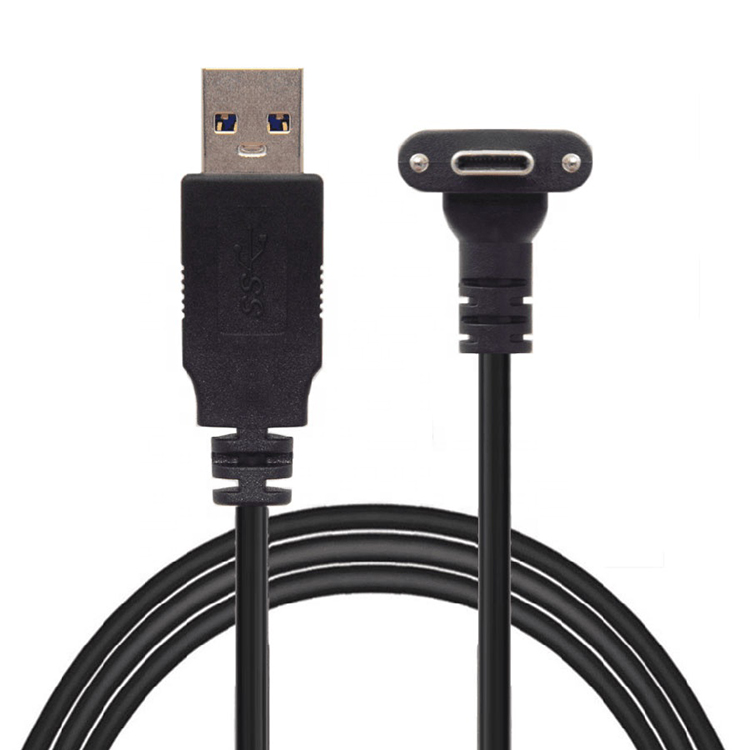

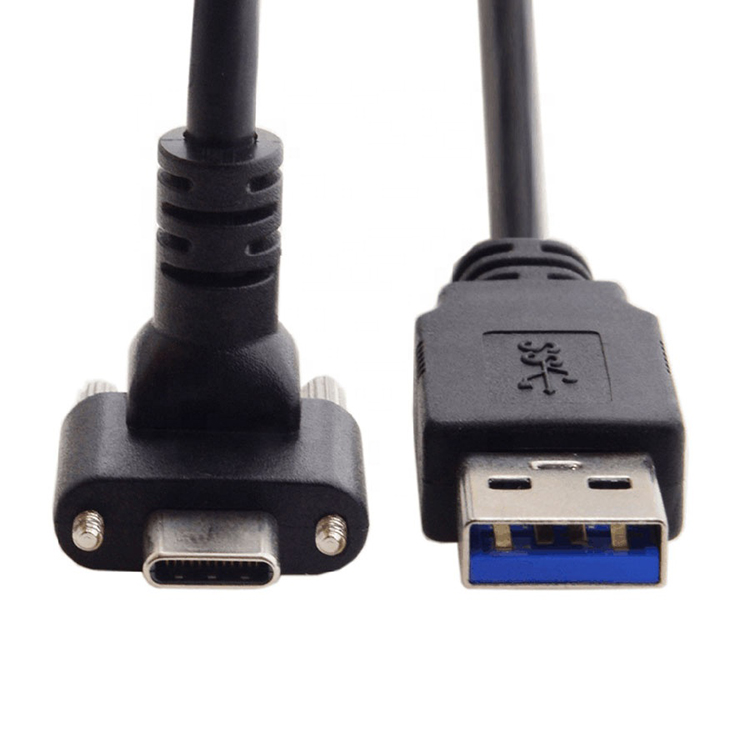

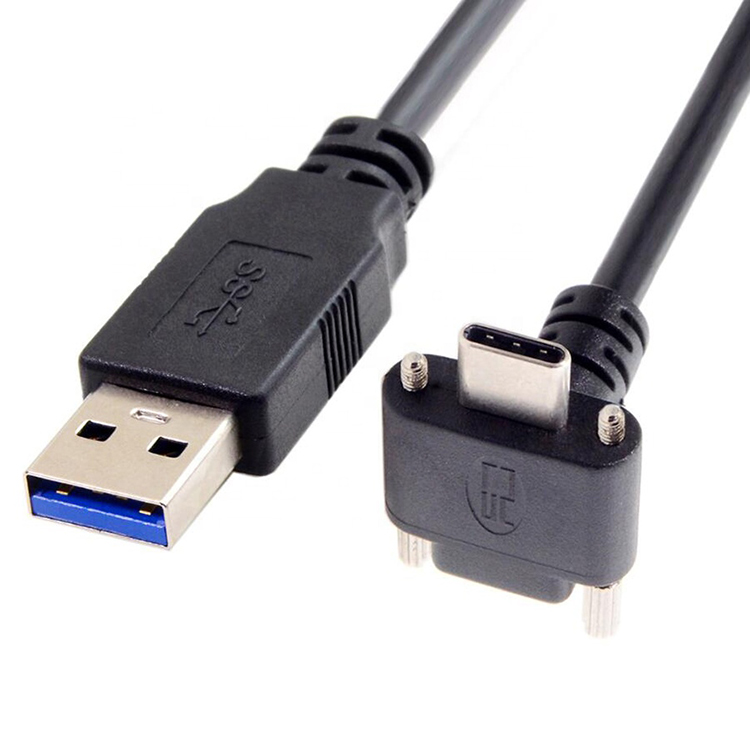

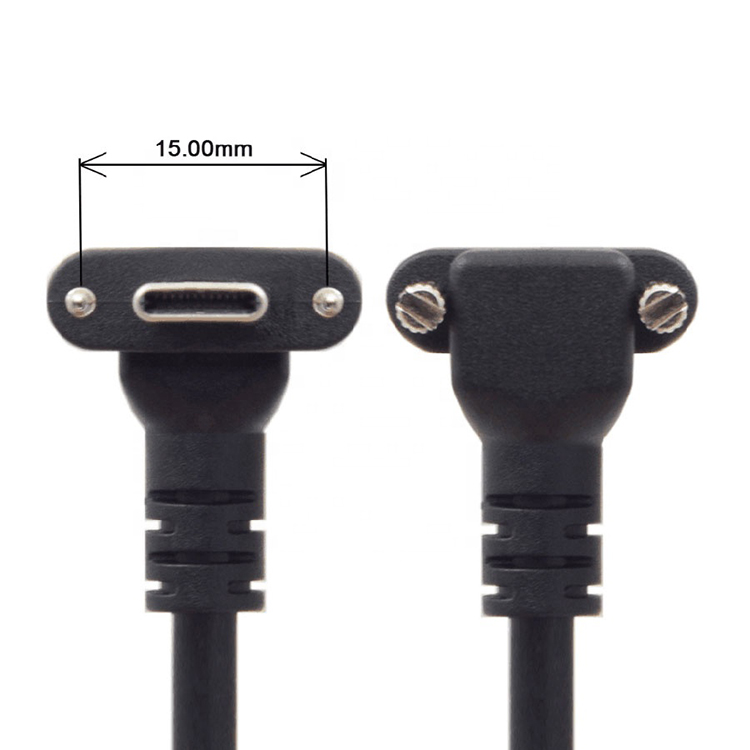

Custom 90 Degree Angle Screw Locking Panel Mount USB 3.0 A Male to Type C Cable

Product Name	USB3.0 A-male to right angle type c with lock cable
Length	2.0m	Application	data transmission
Connector	usb3.0 male	Wire	UL2464 AWG24#2C+28#1P
	Latching type c male		PVC
Shielding	braid	Color	Black
MOQ	500 pcs	Customization	OEM/ODM
Packaging	Polybag	Weight	96g~
Certification	CE	Warranty	1 year
Features	1) material
	Connector: gold plated, nickel plated
	Contact: Brass, gold plated
	Housing: PBT+GF
	Wire: AWG 24#/26#/28#
	Shield: Available
	Jacket: PVC, Black
	OD: 3.8mm
	Length: customized
	2) Electrical performance
	Rated current:1A
	Rated voltage: 5V
	Contact resistance: 30MΩ Max
	3) Insertion force: 3.6 KGF Max
	Withdrawal: 1.0 KGF Min
	4) Testing 100%
	5) Environment: -20°C~80°C
	Humidity: <90%
	6) latching feature provides a secure connection to any USB type A socket


Packaging & Shipping

Custom 90 Degree Angle Screw Locking Panel Mount USB 3.0 A Male to Type C Cable

Company Profile

Custom 90 Degree Angle Screw Locking Panel Mount USB 3.0 A Male to Type C Cable

FAQ

Q1. Can you provide the OEM manufacture

A1: Yes, we can offer the OEM service according to your cable solution as drawing and specification requires.

Q2. Do you offer after-sales warranty service?

A2:Yes, we have the professional sales for the customer service. And the warranty time is 1 year.

Q3. How many workers in the factory?

A3: We have more than 200 workers for the fast delivery and mass production.

Q4. What's the standard of the material quality?

A4: Our material can pass ROHS, SGS, CE.

Q5. Could I have a sample for quality check?

A5: Yes, the free sample can be offered if we have the stock.

Q8. What is the production time?

A8: Sample time around 3~5 days. And mass production is in 20days.

Q9. What is the payment term?

A9: Our payment term are Trade Assurance, T/T, Western union, Monogram and L/C at sight.
