How to connect Arduino with 50m USB Distance Measurement Sensors

40m Range of Sensors Socket Assembly Robotics

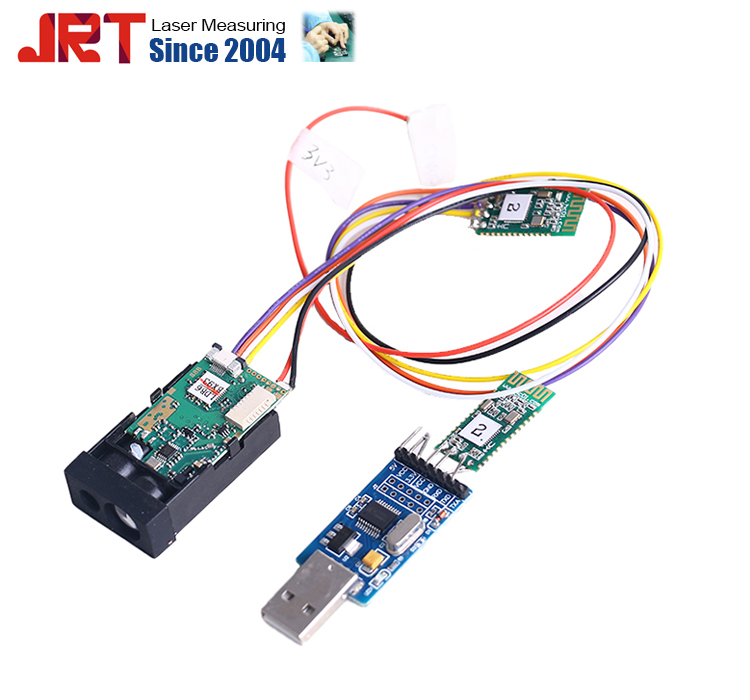

The accurate range of sensors we also called secondary development laser distance sensor, which is designed for industrial application. With socket assembly robotics, customers can easily test and integrate for your device. Using the usb socket model laser range sensor, you can directly connetct to your computer and test. Very convienent, right? Welcome to use our laser distance modules to your project. Or if you want to get more updates of JRT New Laser Sensors, please feel free to contact us.

Why Us

Chengdu JRT Meter is the factory of laser measure modules sensors since 2004. Support OEM your own laser measuring tools.
Welcome to tell us your applicaiton, we are glad to help.
Industial Applicaiton:
1. Distance optional: 40m, 60m, 100m, 120m, 150m, 200m, 1200m
2. Interface optional: serial port, USB, RS232, RS485, Bluetooth etc
3. Operating temperature: -10 ºC~50 ºC can be customized.

Technical Specifications:
Range: 0.03-40 meter
Invisible measuring: 620nm-690nm
Measuring accuracy: +-1 mm
Measuring frequency: Up to 3 Hz
Laser type: Class 2, red
Interface options: Serial/usb/rs232/rs485/bluetooth
Size: 45*25*12mm
Voltage: DC2.0~3.3V
Electrical Level: TTL/CMOS
Working temperature: 0 ~ 40 degree
Storage temperature: -25 ~ 60 degree

Note:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±3 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~50 ℃ can be customize

How to pack your range of sensors?
