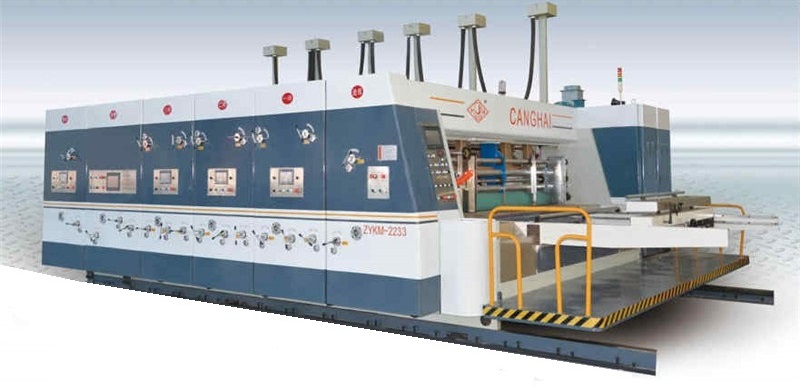

TYPE-1020 4 Colour Printer Slotter Die Cutting Machine Carton Printing Slotting Die-Cutting Machinery For Boxes1

2 year ago

4 0 

DONGGUANG CANGHAI PACKING MACHINE CO.,LTD

2 year

Product details

Specification

item	value
Brand Name	Cang Hai
Condition	New
Warranty	1 Year
Applicable Industries	Manufacturing Plant, Printing Shops, Advertising Company, corrugated carton making industry
After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location	Viet Nam, Mexico, Russia, Romania
Showroom Location	Viet Nam, Mexico, Russia, Romania
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC
Type	automatic printer slotter die cutter
After-sales Service Provided	Video technical support, Online support
Key Selling Points	Automatic
feature	high speed
color	3 colors
Product name	Automatic High Speed High Definition Printing Machine
Machine type	ZYKM 1020
Max machine speed	220 pcs/min
Max paper feeding size	1000*2200
Max printing area	950*2000
Max slotting depth	250
Control system	PLC
Registration precision	≤±0.6（4 colors）

Product Description

Features

1. The whole machine is designed and manufactured in accordance with high requirements, high standards, high efficiency, reliability and safety. Quickly change orders and easy operation.

2. Imported PLC touch screen, multi-function control. Can store frequently used orders to speed up the order change operation.

3. Choose high-quality materials and accessories.

4. All rollers are chrome-plated to enhance the hardness.

5. The transmission adopts alloy steel precision grinding gears and a spray circulating lubrication system;

6. Apply keyless continuous ring to reduce center wear, enlarge virtual position, and maintain long-term printing registration;

7. Adopt hanging board structure, automatic reset, quick change of orders;

8. Each unit is equipped with an emergency stop switch to protect and operate safely;

9. The gap adjustment adopts self-locking adjustment device, which is easy to operate;

10. Electrical components, bearings, pneumatic components, pneumatic control components, etc. adopt international brands;

11. Mechanical front edge paper feeding system, frequency conversion to adjust air volume, paper feeding is accurate and stable;

12. Slotting knife phase, box height adjustment mechanism, frequency converter control dynamic 360 degree adjustment;

13. The lateral movement of the grooving tool holder is electrically controlled, and the adjustment is quick and accurate;

14. The rubber pad roller automatic displacement mechanism extends the service life of the rubber pad;

15. Imported quick-change rubber pads, rubber pad grinding correction mechanism;

16. Quick traverse mechanism of paper guide wheel;

17. Equipped with automatic paper stacking machine.

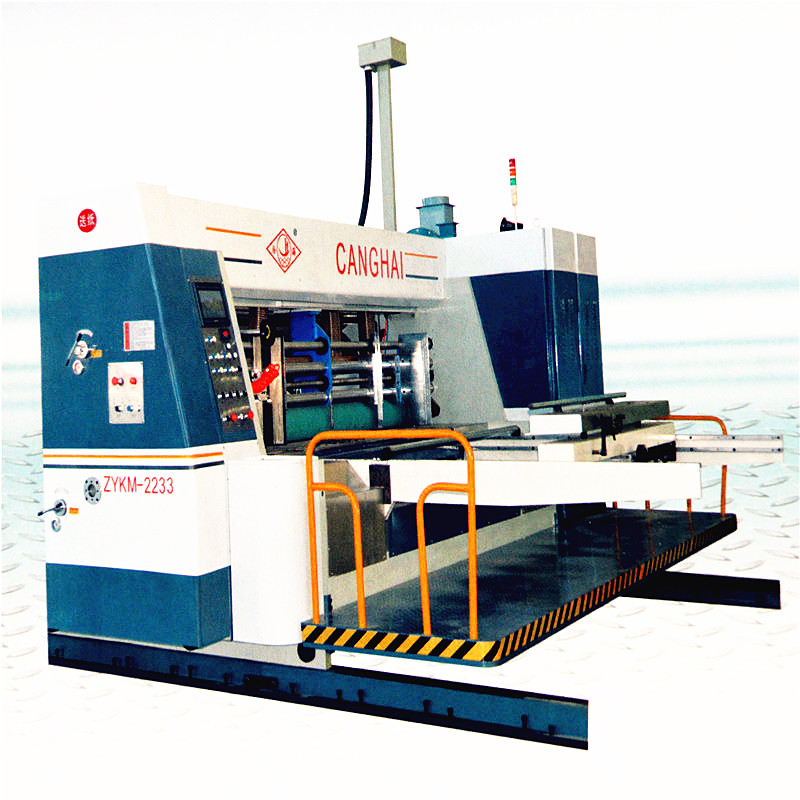

Feeder

1. The leading edge paper feeding system, frequency conversion to adjust the air volume, paper feeding is accurate and stable; 2. Double-row paper feed roller mode, front paper feed roller quick-change structure, covered with wear-resistant rubber, and equipped with spring adjustment function, which can prevent the cardboard from deforming and ensure accurate paper feeding; 3. Dust removal brush and dust suction device to remove paper scraps on the cardboard surface; 4. Touch screen displays production speed and production quantity; 5. The paper feed gap is adjusted manually.

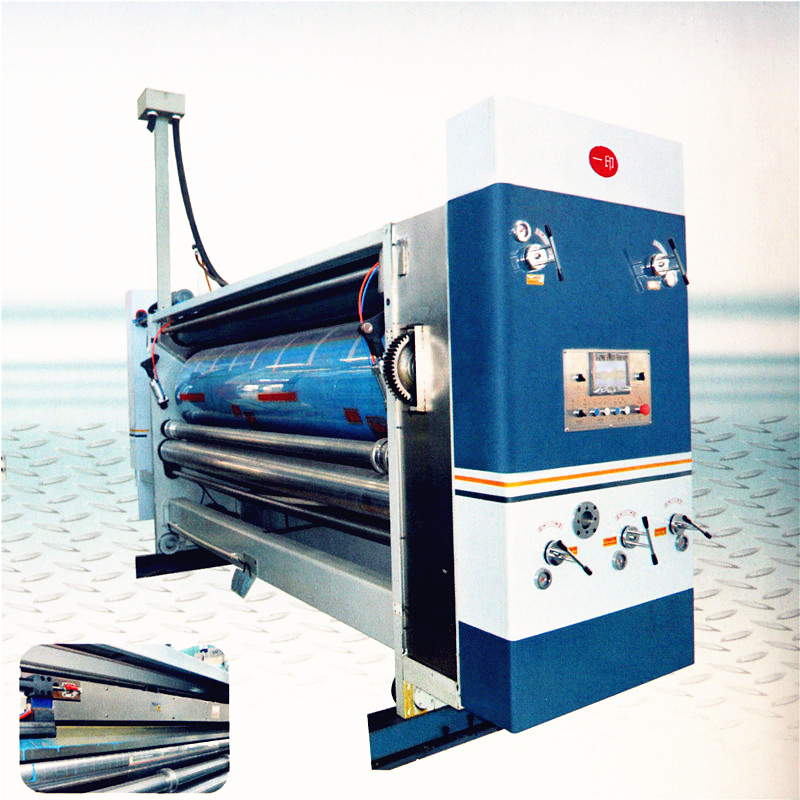

Printer

1. The printing roller and embossing roller are all high-quality steel surface ground, hard chrome plated, dynamic and static balance, correction, stable operation; 2. Adopt the hanging board mechanism, which is convenient and quick to install; the loading and unloading printing plate is equipped with a foot switch or operating surface to control the forward and reverse rotation, which is quick and convenient; 3. Cooperate with the paper feeding system with an automatic lifting anilox roller. When feeding paper, the anilox roller automatically descends to contact the printing plate, and when paper feeding stops, the anilox roller automatically rises and separates from the printing plate;

4. The phase adopts electromagnetic brake fixing device, with intelligent zero return, dynamic and static can be quickly
reset;adjustment device.

5. The printing phase adopts PLC touch screen control and electric digital 360 degree adjustment;

6. The structure of the paper guide wheel to move quickly, and the gap self-locking

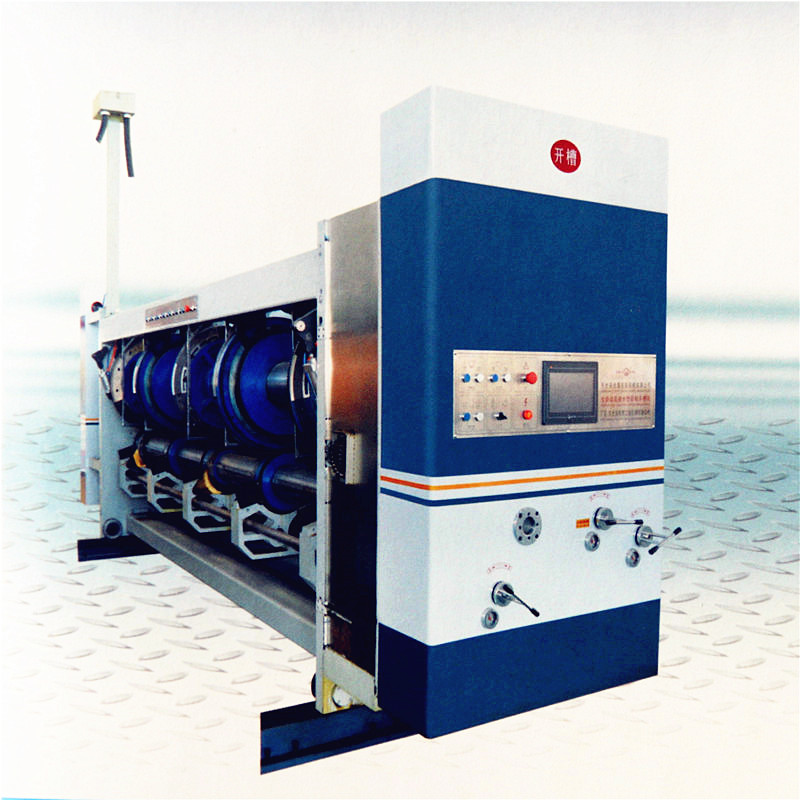

Double shaft slotter

1. The unique dual-axis dual-knife slotting structure eliminates front and back collision accidents, and can process large-size cartons； 2. The thickness of the slotting knife is 7 to 8 mm, made of high-quality alloy, the tooth-shaped knife edge is sharp, and the wear resistance is high; 3. Slotting knife phase, box height adjustment mechanism, frequency converter control dynamic 360 degree adjustment; 4. Precise linear guide system, accurate horizontal movement, smooth slotting; 5. Punching device can be equipped according to user needs; 6. The gap self-locking adjustment device of the pre-pressing wheel, the crimping wheel

and the slotting cutter head; 7. Snap-fit single-blade trimming knife, trimming is smooth and cost-saving; 8. Middle knife electric displacement mechanism,strong production adaptability

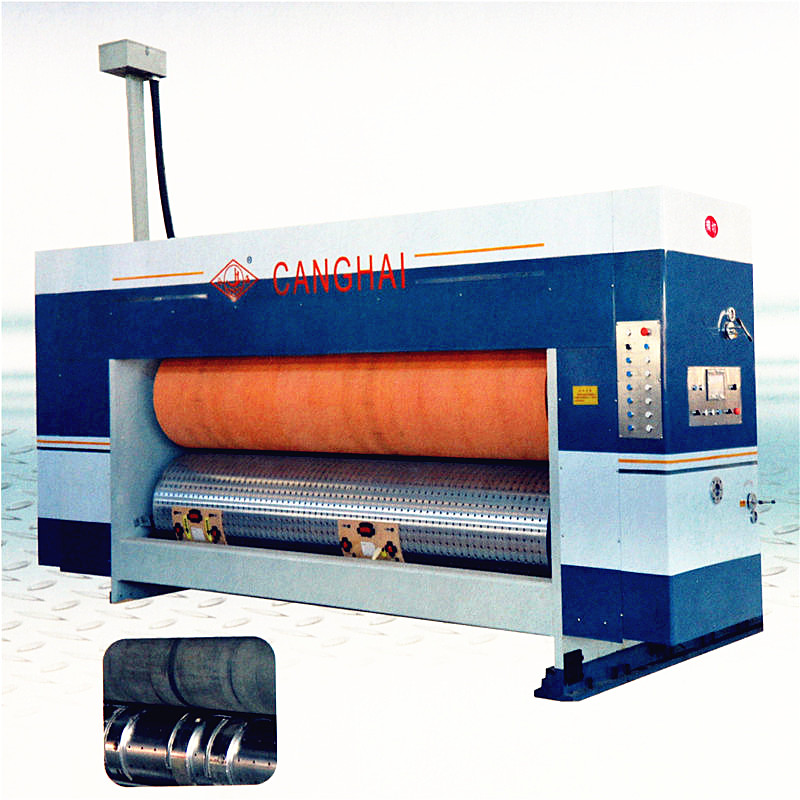

Rotary die-cutter

1. The rubber cushion roller and die cutting roller are made of high-quality steel materials, and the surface is ground and plated
with hard chrome. Dynamic and static balance correction, stable operation; 2. The film plate roller and the rubber roller are
automatically disengaged by the cylinder eccentric device without die cutting, which can reduce the no-load load of the machine
and prolong the life of the rubber and die;
3. Cooperate with the pneumatic automatic lifting device of the paper feeding system, (the rubber pad roller will drop when
feeding paper), and the rubber pad roller will rise when the paper feeding is stopped to ensure that each cardboard is die-cut
correctly;

4. The mechanical transmission Youli rubber roller moves 40 mm left and right, and is equipped with a radial differential device, which can make the rubber pad wear evenly distributed and greatly improve the service life of the rubber pad; 5. The die cutting phase adopts plc touch screen and electric digital 360 degree adjustment; 6. The machine is equipped with a rubber correction device, which can be used after repeated corrections to the rubber pad; 7. Plate-free slotting die-cutting tool holder, no need to do template when making ordinary carton slotting, saving cost and improving work efficiency (optional)

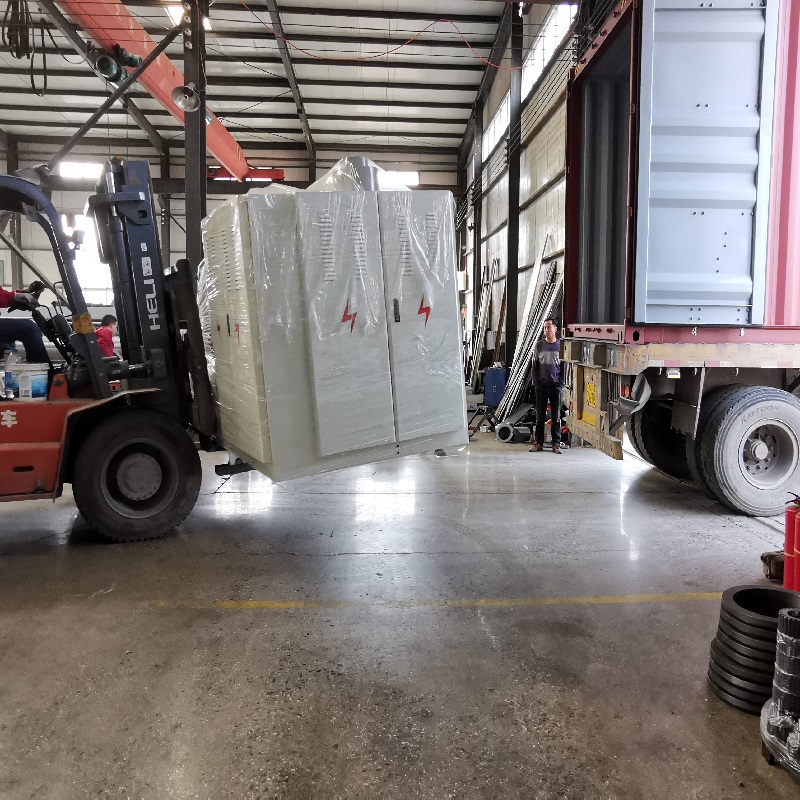

Packing & Delivery

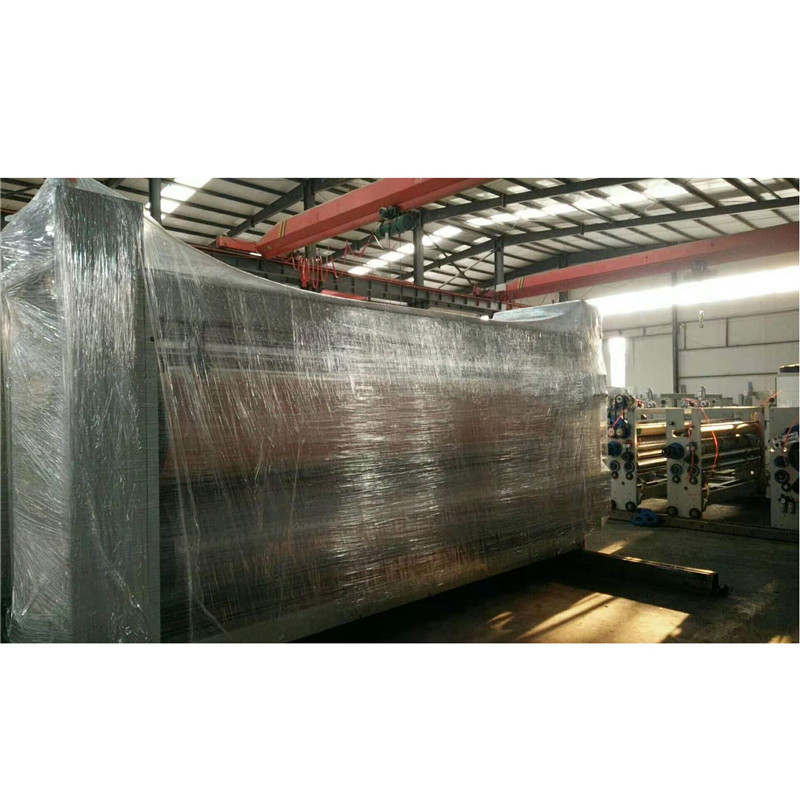

POLY FILM PACKING

Company Profile

FAQ

1. who are we?
We are based in Hebei, China, start from 2004,sell to South Asia(00.00%),Southeast Asia(00.00%),South America(00.00%),Eastern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Machinery Equipment/Production and Sales

4. why should you buy from us not from other suppliers?
We have a strongtechnical team of technicians,all technicians are trained in special training in assessment of the structure of the packaging printing machinery,repair and maintenance have a deep grasp.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Arabic,Russian
