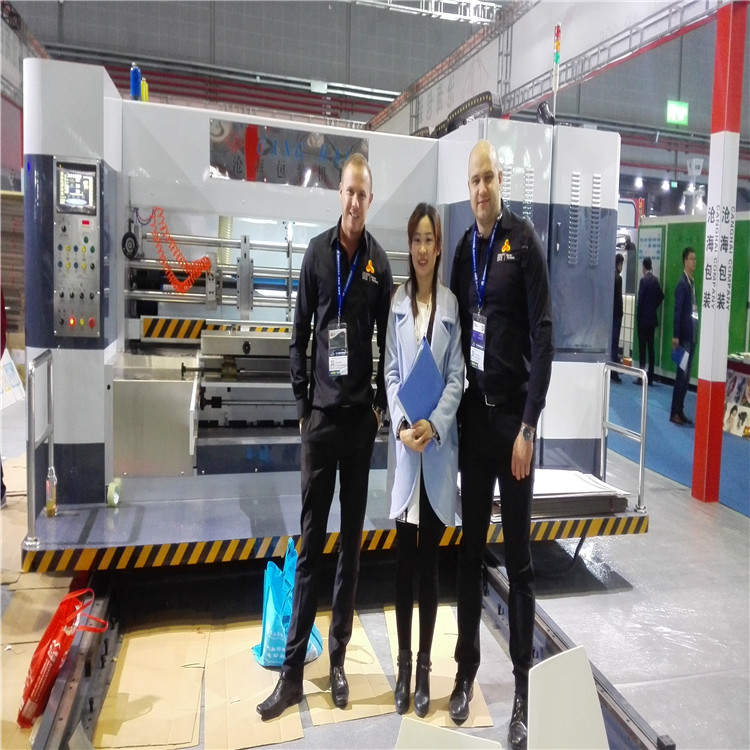

Canghai lead edge 2 colour printer slotter rotary die cutter machine1

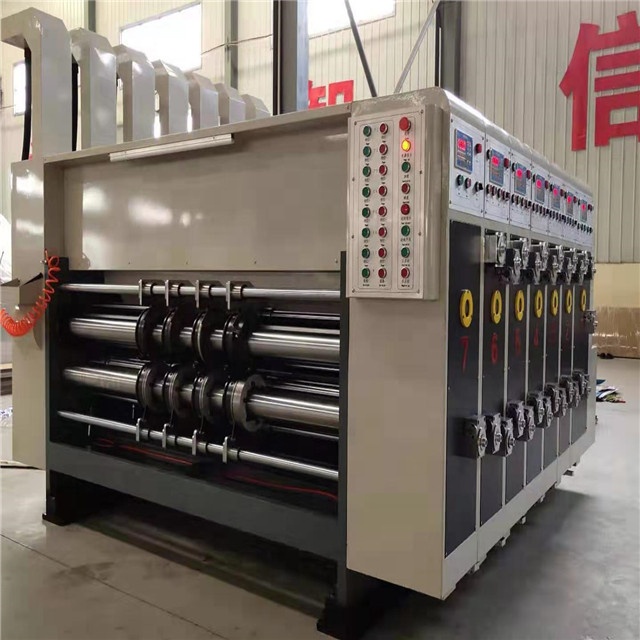

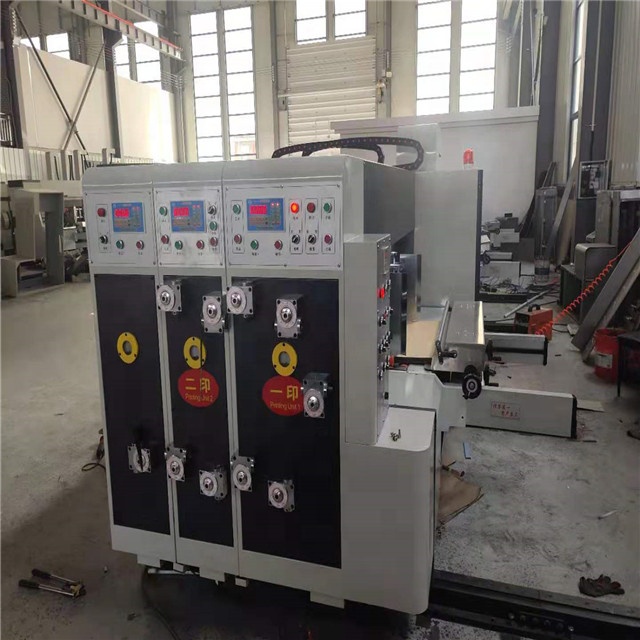

     Automatic carton printer sloter with rotation

Paper feeding unit



4.printing roller

516mm outside diameter (with version of the diameter of 530mm).

Surface grinding, hard chrome plating, balance correction, smooth operation.

Surface spacing 100mm scale line, convenient plate.

Scroll hanging version, unilateral locking, so that hanging version of the accurate, convenient, fast.

Plate hanging ditch, suitable for 10mm plate hanging bar.When loading and unloading the printing plate, the foot switch is electrically controlled to turn forward and backward.

5. Phase adjusting mechanism:

Electric planetary gear grinding,  can achieve version roll circumferential 360 degree adjustment, digital display, intuitive and accurate.

The axial adjustment mechanism can make the plate roller adjust about 20mm.(unilateral 10 mm)

6. The pressure roller:

152mm in diameter and 16mm in wall thickness.

Surface grinding hard chrome, balance correction, smooth operation..

Swing plate structure is adopted for clearance adjustment, with a range of 0-12mm.
